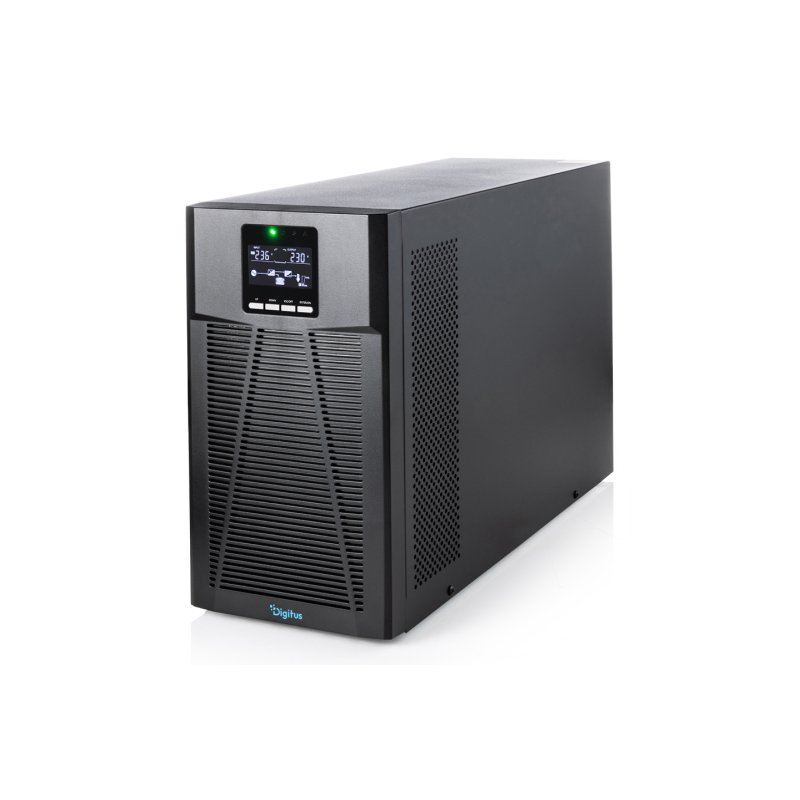

Digitus Digitus OnLine UPS systems, tower type, 2000 VA / 2000 W

Name: Digitus OnLine UPS systems, tower type, 2000 VA / 2000 W
Brand: Digitus
SKU: DN-170131
Price: 919.9 EUR
Availability: OutOfStock

Digitus OnLine UPS systems, tower type, 2000 VA / 2000 W, Double-conversion (Online), 2 kVA, 2000 W, Pure sine, 110 V, 300 V

Manufacturer reference DN-170131

EAN13 4016032507932

€919.90

Out of stock

Digitus OnLine UPS systems, tower type, 2000 VA / 2000 W. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 2000 W. AC outlet types: C13 coupler, Power plug: C20 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Cables included: USB cable, RS-232, Power load cable

Online double conversion system
Capacity (VA/W): 2000 / 2000

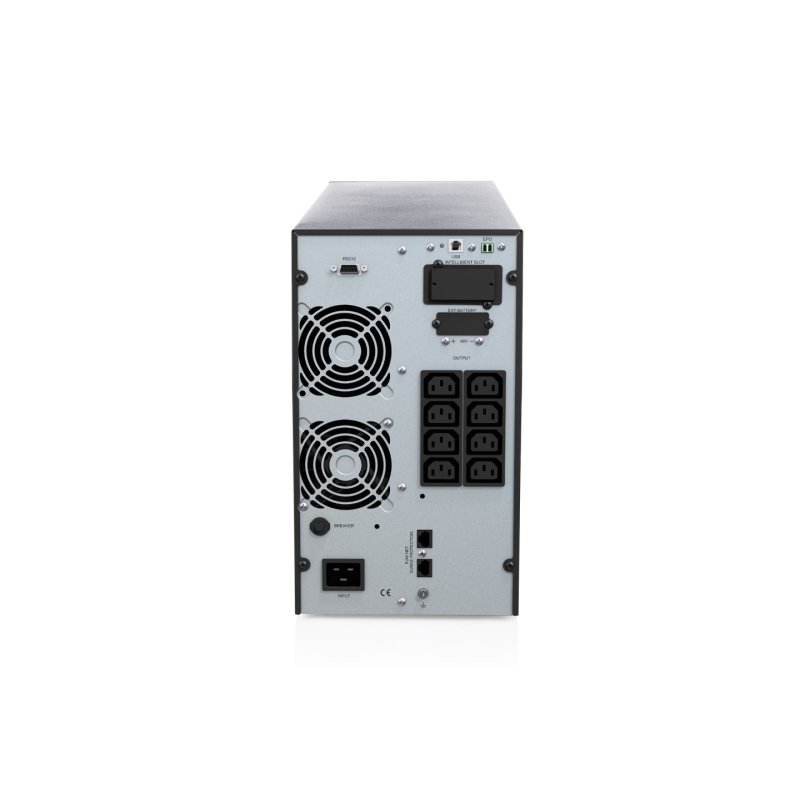

Input: IEC60320 C20 socket, 208/220/230/240 Vac
Output: 8 x IEC60320 C13, max. 10A per socket outlet
Entrance:
Rated voltage (Vac): 208 / 220 / 230 / 240
Operating voltage range (Vac): 110 ~ 300 (176 ~ 264 at 100 % load)
Power factor: 1.0
Bypass frequency range (Hz): 40 ~ 70 (50 / 60) automatic detection
Output:
Voltage regulation: ±1 %
Output frequency (Hz): Mains operation: 46 ~ 54 or 56 ~ 64; Battery operation: (50 / 60 ± 0.1 %)
Crest factor: 3:1
Harmonic distortion (THDv): ≤3 % with linear load; ≤5 % with non-linear load
Switchover time (ms): Mains operation to battery operation: 0; Inverter to bypass: 4 (typical)
Waveform: Pure sine wave
Efficiency: Mains operation: up to 91 % / ECO mode: up to 96 %
Battery type: VRLA (maintenance-free lead-acid battery)
Battery quantity: 4 × 12 V / 9.0 Ah
Battery voltage (Vdc): 48
Charging current (max.) (A): 2
Generator compatible
Cold start function
Typical recharge time (hours): 4 (up to 90% of full capacity)
Network connection: Optional SNMP/Webcard (part number DN-170100-1) enables the UPS to be monitored remotely.
Local communication ports: USB, RS-232 (serial), SNMP (optional)
Multiple protection functions: Short circuit, overload, overheating,
Surroundings:
Operating temperature (°C): 0 ~ 40
Storage temperature (°C): -25 ~ 55
Humidity range: 20 ~ 95 % RH at 0 ~ 40 °C (non-condensing)
Operating altitude (m): < 1000, power reduction required between 1000 and 3000
Noise level (dB): < 50
Dimensions (W × D × H) (mm): 191 × 460 × 337
Weight (kg) : 21,46
