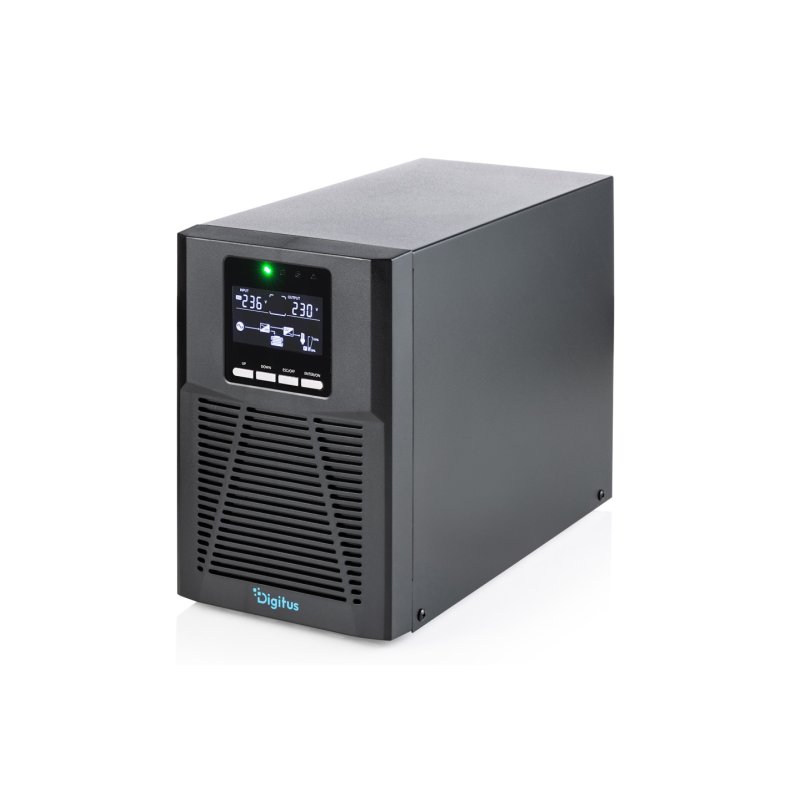

Digitus Digitus OnLine UPS systems, tower type, 1000 VA / 1000 W
Digitus OnLine UPS systems, tower type, 1000 VA / 1000 W
DN-170130
4016032507925
€551.90
Tax included
Description
Digitus OnLine UPS systems, tower type, 1000 VA / 1000 W
- Online double conversion system
- Capacity (VA/W): 1000 / 1000

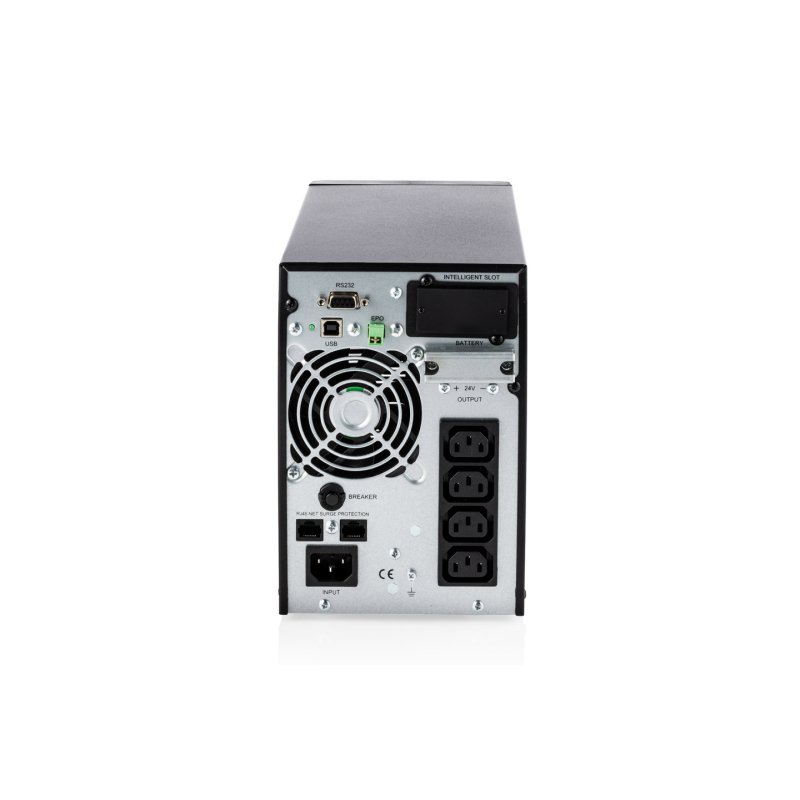

- Input: IEC60320 C20 socket, 208/220/230/240 Vac
- Output: 4 x IEC60320 C13, max. 10A per socket outlet
- Entrance:
- Rated voltage (Vac): 208 / 220 / 230 / 240
- Operating voltage range (Vac): 110 ~ 300 (176 ~ 264 at 100 % load)
- Power factor: 1.0
- Bypass frequency range (Hz): 40 ~ 70 (50 / 60) automatic detection
- Output:
- Voltage regulation: ±1 %
- Output frequency (Hz): Mains operation: 46 ~ 54 or 56 ~ 64; Battery operation: (50 / 60 ± 0.1 %)
- Crest factor: 3:1
- Harmonic distortion (THDv): ≤3 % with linear load; ≤5 % with non-linear load
- Switchover time (ms): Mains operation to battery operation: 0; Inverter to bypass: 4 (typical)
- Waveform: Pure sine wave
- Efficiency: Mains operation: up to 90 % / ECO mode: up to 95 %
- Battery type: VRLA (maintenance-free lead-acid battery)
- Battery quantity: 2 × 12 V / 9.0 Ah
- Battery voltage (Vdc): 24
- Charging current (max.) (A): 2
- Emergency Power-off (EPO) contact for switching off the UPS in an emergency
- Generator compatible
- Cold start function
- Typical recharge time (hours): 4 (up to 90% of full capacity)
- Network connection: Optional SNMP/Webcard (part number DN-170100-1) enables the UPS to be monitored remotely.
- Local communication ports: USB, RS-232 (serial), SNMP (optional)
- Multiple protection functions: Short circuit, overload, overheating,
- Surroundings:
- Operating temperature (°C): 0 ~ 40
- Storage temperature (°C): -25 ~ 55
- Humidity range: 20 ~ 95 % RH at 0 ~ 40 °C (non-condensing)
- Operating altitude (m): < 1000, power reduction required between 1000 and 3000
- Noise level (dB): < 50
- Dimensions (W × D × H) (mm): 144 × 293 × 209
- Weight (kg) : 10,07
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4016032507925
