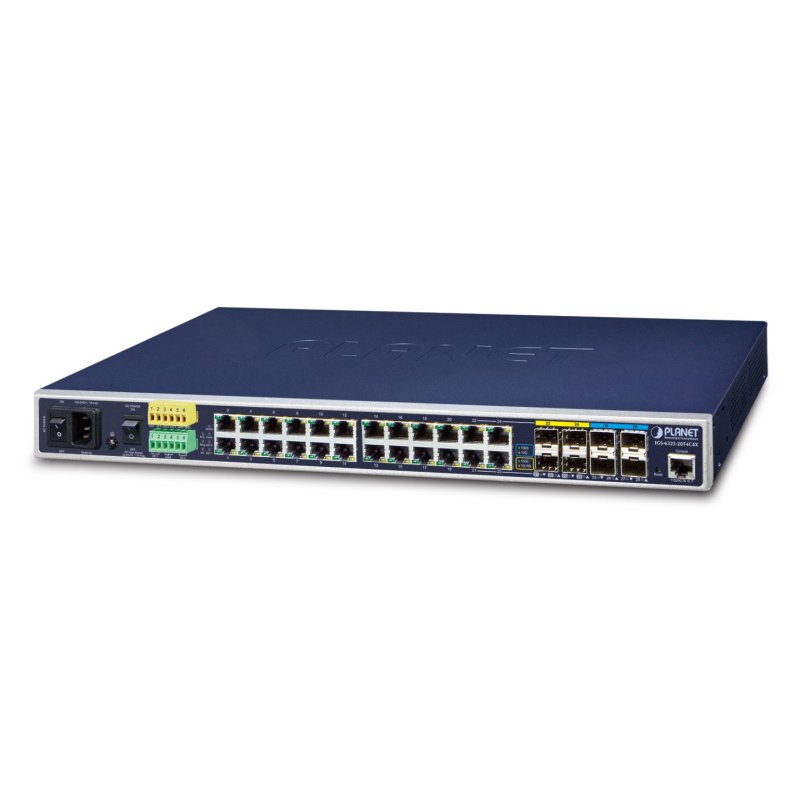

Name: PLANET IGS-6325-20T4C4X network switch Managed L3 Gigabit Ethernet (10/100/1000) 1U Blue
Brand: PLANET
SKU: IGS-6325-20T4C4X
Price: 1285.9 EUR
Availability: InStock

PLANET IGS-6325-20T4C4X, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, 1U

Manufacturer reference IGS-6325-20T4C4X

EAN13 4711605283809

€1,285.90

Last units

PLANET IGS-6325-20T4C4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4, Installed SFP modules quantity: 4, Console port: RS-232. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 36 - 60 V. Rack mounting, Form factor: 1U

Physical Port
24-port 10/100/1000BASE-T RJ45 copper
4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP
4 10GBASE-SR/LR SFP slots, compatible with 1000BASE-SX/LX/BX SFP
RJ45 to RS232 DB9 console interface for basic management and setup
Hardware Conformance
One 100 to 240V AC or dual 36 to 60V DC power input, redundant power with polarity reverse protect function
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
19-inch rack-mountable design
IP30 metal case protection
Supports EFT protection for 6000V DC power and 6000V DC Ethernet ESD protection
Supports -40 to 75 degrees C operating temperature
Digital Input & Digital Output
2 Digital Input (DI)
2 Digital Output (DO)
Integrates sensors into auto alarm system
Transfers alarm to IP network via email and SNMP trap
Layer 3 IP Routing Features
Supports maximum 128 static routes and route summarization
IP dynamic routing protocol supports OSPFv2
Routing interface provides per VLAN routing mode
Layer 2 Features
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 256 VLANs groups, out of 4096 VLAN IDs
Provides Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
IP subnet-based VLAN
Voice VLAN
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 14 trunk groups, with 16 ports for each trunk
Up to 32Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring monitors the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)
IEEE 1588 and Synchronous Ethernet network timing
Quality of Service
Ingress shaper and egress rate limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
ToS/DSCP/IP Precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Traffic policing on the switch port
DSCP remarking
