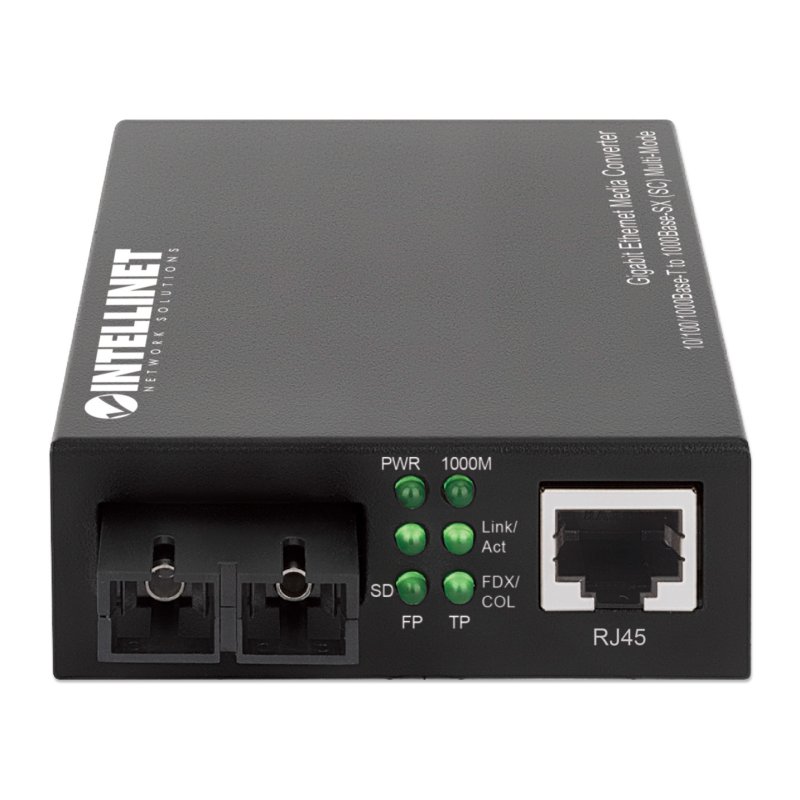

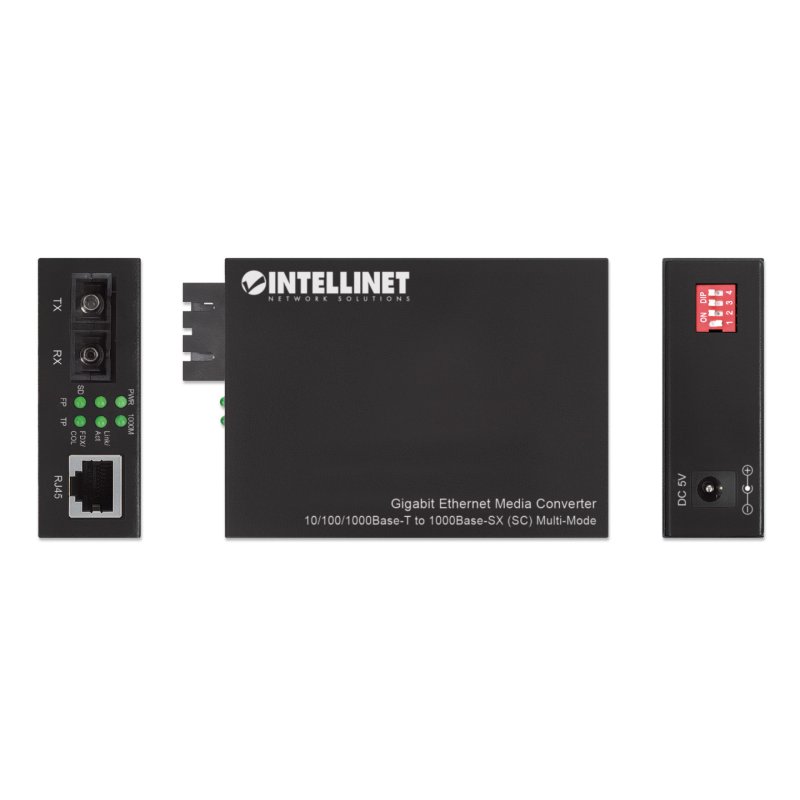

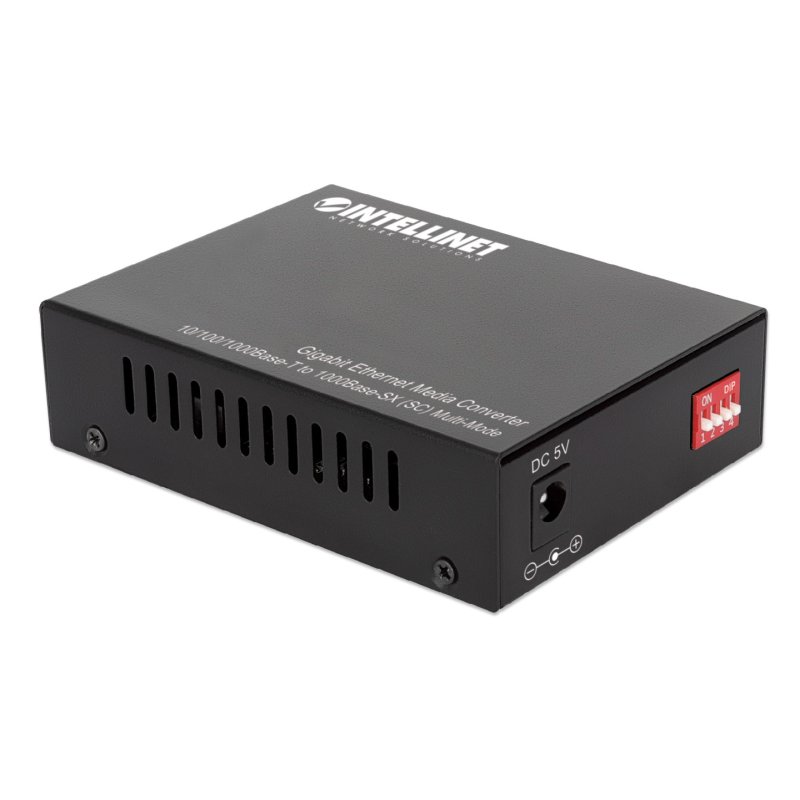

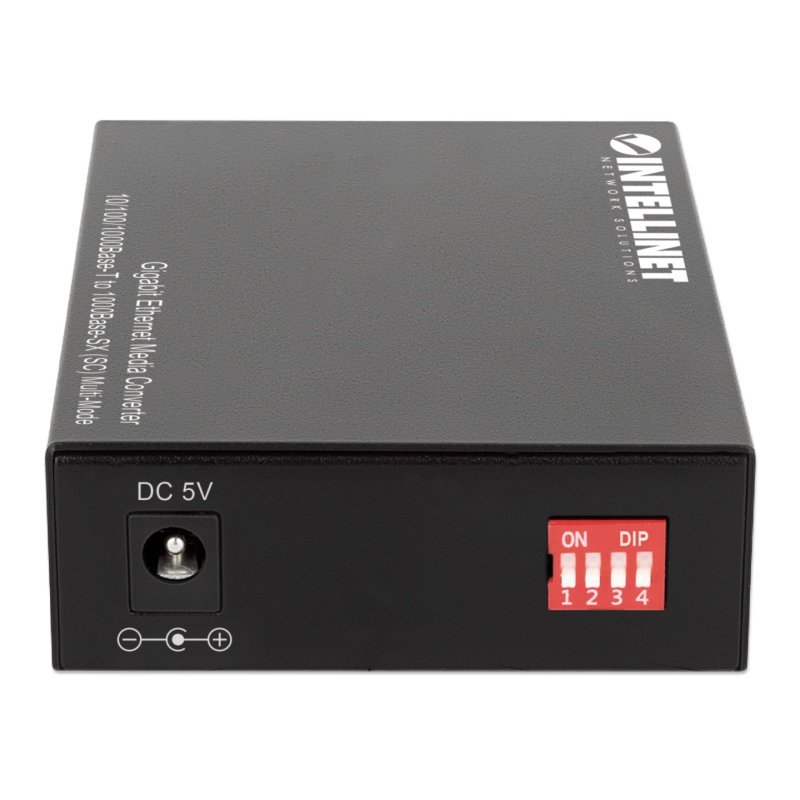

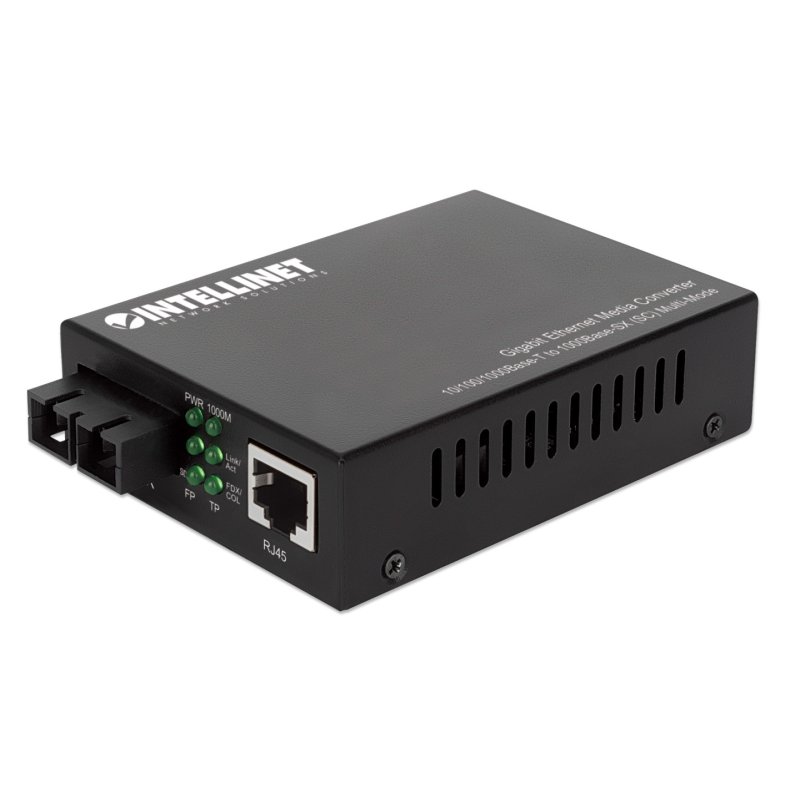

1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.),

Name: Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.),
Brand: Intellinet
SKU: 508544
Price: 141.9 EUR
Availability: InStock

Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s, Full, Half, Cat5e, UTP/STP

Manufacturer reference 508544

EAN13 0766623508544

€141.90

In stock

Intellinet Gigabit Ethernet Media Converter 10/100/1000Base-T to 1000Base-SX (SC) Multi-Mode, 550 m (1,800 ft.), Autonegotiation. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Signal strength, Housing material: Metal. Fiber optic connector: SC, Connectivity technology: Wired. Width: 94 mm, Depth: 70 mm, Height: 26 mm

One 10/100/1000 RJ45 port supporting a maximum distance of 100 m (300 ft.)
One 1000Base-SX fiber SC multi-mode port supporting a maximum distance of 550 m (1,800 ft.)
Supports full-duplex and half-duplex modes with autonegotiation
Link Fault Passthrough (LFP) function for easier network maintenance
QoS (Quality of Service) bandwidth management
IEEE 802.1Q VLAN tagging compliant
Cut-through and store-and-forward switching architecture
Wavelength: 850 nm
Supports jumbo frames up to 9.2 kBytes
Status LEDs for power and Link/TX on both ports

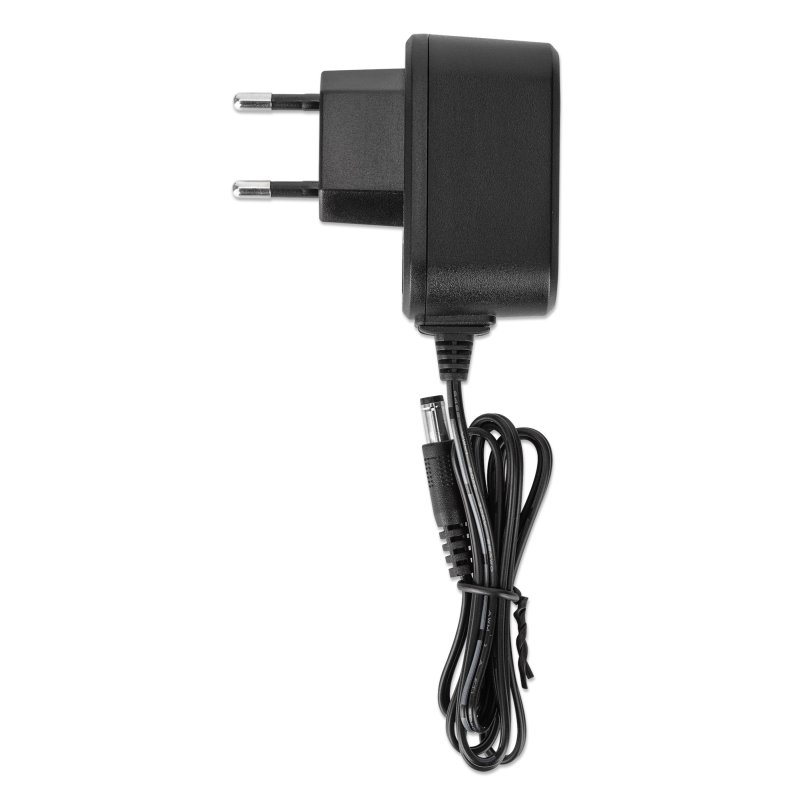

External 5 VDC power adapter
Functions as a stand-alone converter or can be used with the 14-slot Media Converter Chassis, model 507356
Fully NDAA-compliant
