New
Out-of-Stock

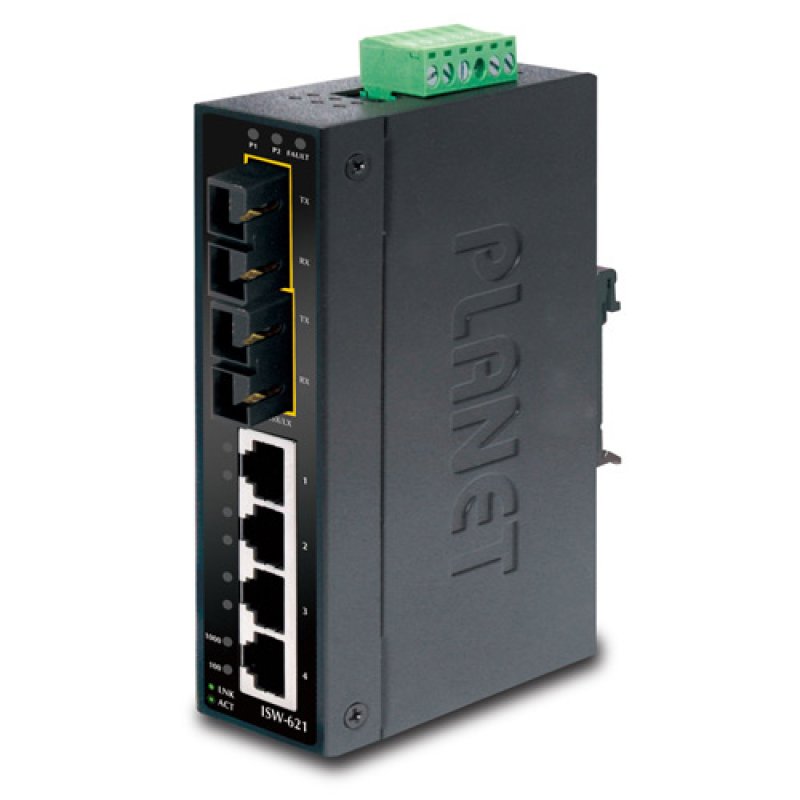

PLANET PLANET ISW-621 network switch Unmanaged L2 Fast Ethernet (10/100) Black

Name: PLANET ISW-621 network switch Unmanaged L2 Fast Ethernet (10/100) Black
Brand: PLANET
SKU: ISW-621
Price: 139.9 EUR
Availability: OutOfStock

PLANET ISW-621, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Wall mountable

Manufacturer reference ISW-621

EAN13 4711213688225

€139.90

Out of stock

PLANET ISW-621. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Wall mountable

Physical Port
–4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function
–2-port 100Base-FX interfaces for up to 2km (Multi-mode fiber 50µm/125µm) on ISW-621
Layer 2 Features
–Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard
–Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
–High performance Store and Forward architecture
–Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
–Backplane (Switching Fabric): 1.2Gbps
–Integrated address look-up engine, support 2K absolute MAC addresses
–1 Mbit on-chip frame buffer
–Automatic address learning and address aging
–CSMA/CD Protocol
Industrial Case / Installation
–IP-30 metal case / protection
–DIN rail and wall mount design
–12 to 48V DC, redundant power with polarity reverse protect function and
connective removable terminal block for master and slave power
–Supports EFT protection 6000 VDC for power line
–Supports 6000 VDC Ethernet ESD protection
–-10 to 60 degrees C operating temperature
