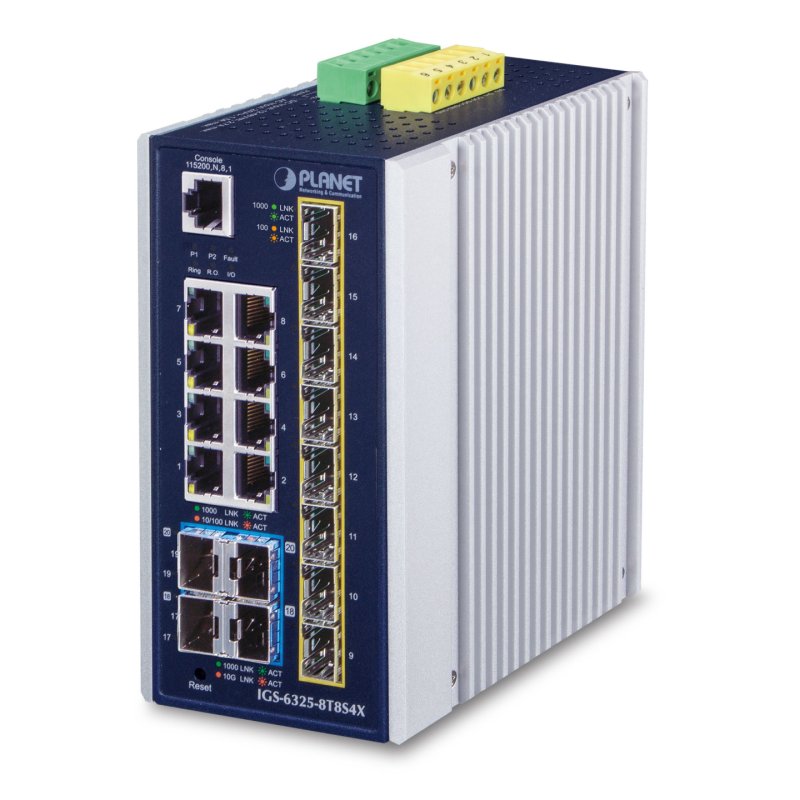

Name: PLANET IP30 Industrial L3 8-Port Managed Gigabit Ethernet (10/100/1000) Blue, White
Brand: PLANET
SKU: IGS-6325-8T8S4X
Price: 879.9 EUR
Availability: InStock

PLANET IP30 Industrial L3 8-Port, Managed, Gigabit Ethernet (10/100/1000), Rack mounting, Wall mountable

Manufacturer reference IGS-6325-8T8S4X

EAN13 4711605284806

€879.90

Last units

PLANET IP30 Industrial L3 8-Port. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP modules quantity: 8, Installed SFP modules quantity: 4. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... Wall mountable, Rack mounting

Physical Port
8 10/100/1000BASE-T RJ45 copper ports
8 100/1000/2500BASE-X SFP slots for SFP type auto detection
4 10GBASE-SR/LR SFP slots, compatible with 1000BASE-X SFP and 2500BAS-X SFP
One RJ45-to-RS232 console interface for basic management and setup
Industrial Hardened Design
Dual power input, redundant power with reverse polarity protection
DC 12 to 48V input or AC 24V input
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
DIN-rail and wall-mountable designs
IP30 aluminum case
Supports 6000V DC Ethernet ESD protection
40 to 75 degrees C operating temperature
Digital Input and Digital Output
2 Digital Input (DI)
2 Digital Output (DO)
Integrates sensors into auto alarm system
Transfers alarm to IP network via email and SNMP trap
Layer 3 IP Routing Features
IP dynamic routing protocol supports OSPFv2
IPv4/IPv6 hardware static routing
Routing interface provides per VLAN routing mode
Layer 2 Features
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 4000 VLANs groups, out of 4095 VLAN IDs
Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 14 trunk groups, with 16 ports for each trunk
Up to 80Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Link Layer Discovery Protocol (LLDP)
Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
IEEE 1588 and Synchronous Ethernet network timing
