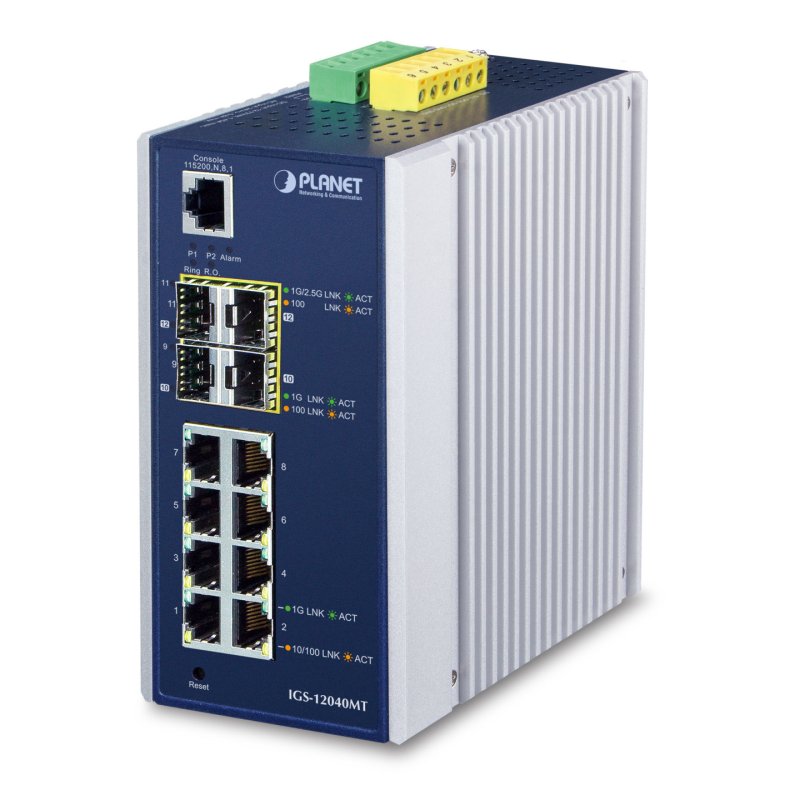

Name: PLANET IGS-12040MT network switch Managed L2 Gigabit Ethernet (10/100/1000) Blue, White
Brand: PLANET
SKU: IGS-12040MT
Price: 571.9 EUR
Availability: InStock

PLANET IGS-12040MT, Managed, L2 , Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Manufacturer reference IGS-12040MT

EAN13 4711605281010

€571.90

In stock

PLANET IGS-12040MT. Switch type: Managed, Switch layer: L2 . Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 8000 entries, Switching capacity: 24 Gbit/s. Networking standards: IEEE 1588v2, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... Wall mountable

Physical Port
8-Port 10/100/1000BASE-T RJ45 copper
4 100/1000BASE-X mini-GBIC/SFP slots, SFP type auto detection
One RJ45 console interface for basic management and setup
Industrial Hardened Design
Dual power input, redundant power with reverse polarity protection
DC 12 to 72 input or AC 24V input
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
DIN-rail and wall-mountable designs
IP30 aluminum case
Supports 6000V DC Ethernet ESD protection
Minus 40 to 75 degrees C operating temperature
Industrial Protocol
Modbus TCP for real-time monitoring in SCADA system
IEEE 1588v2 PTP (Precision Time Protocol)
Digital Input / Digital Output
2 Digital Input (DI)
2 Digital Output (DO)
Integrates sensors into auto alarm system
Transfers alarm to IP network via email and SNMP trap
Layer 3 IP Routing Features
Supports maximum 32 static routes and route summarization
Layer 2 Features
High performance of Store-and-Forward architecture and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unknown Unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 255 VLANs groups, out of 4095 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 6 trunk groups, up to 8 ports per trunk group
Up to 16Gbps bandwidth (duplex mode)
Provides port mirror (many-to-1)
Port Mirroring of the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports E.R.P.S. (Ethernet Ring Protection Switching)
IEEE 1588 and Synchronous Ethernet network timing
Compatible with Cisco Uni-directional link detection (UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Link Layer Discovery Protocol (LLDP)
