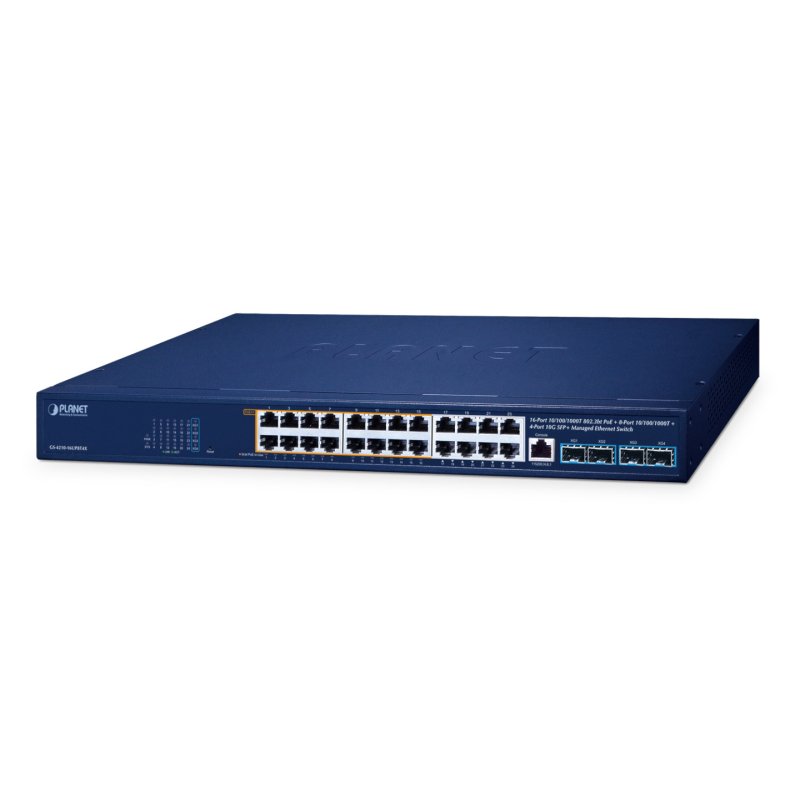

PLANET PLANET GS-4210-16UP8T4X network switch Managed L2/L4 Gigabit Ethernet (10/100/1000)
PLANET GS-4210-16UP8T4X, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex
GS-4210-16UP8T4X
4711605287906
€769.90
Tax included
Description
PLANET GS-4210-16UP8T4X. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Installed SFP modules quantity: 4. Full duplex. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE...
- Physical Port
- ．16 10/100/1000BASE-T ports with 95W 802.3bt PoE injector function (Ports 1 to 16)
- ．8 10/100/1000BASE-T ports (Ports 17 to 24)
- ．4 10GBASE-SR/LR SFP slots, backward compatible with 100/1G/2.5GBASE-X SFP transceivers (Ports XG1 to XG4)
- ．RJ45 to DB9 console interface for switch basic management and setup
- Switching
- ．Hardware-based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
- ．IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- ．16K MAC address table size
- ．12K jumbo frame
- ．Automatic address learning and address aging
- Power over Ethernet
- ．Compliant with IEEE 802.3bt Power over Ethernet Plus Plus
- ．16 ports supporting IEEE 802.3bt PoE with each offering up to 95 watts (ports 1-16)
- ．Total PoE power budget of 420 watts
- ．Automatic detection of powered devices (PD)
- ．Built-in circuit protection to prevent power interference between ports
- ．Remote power feeding up to 100 meters in standard mode and 250 meters in extend mode
- ．Advanced PoE management capabilities:
- ．．Total PoE power budget control
- ．．Per port PoE function enable/disable
- ．．PoE port power feeding priority
- ．．Per PoE port power limitation
- ．．Detection of PD classification
- ．Intelligent PoE features
- ．．PD alive check
- ．．PoE schedule
- ．．Scheduled power recycling
- Layer 2 Features
- ．Supports VLAN
- ．Supports Spanning Tree Protocol
- ．Supports Link Aggregation
- ．Supports port mirror (many-to-1)
- ．Loop protection to avoid broadcast loops
- ．Supports ERPS (Ethernet Ring Protection Switching)
- ．Link Layer Discovery Protocol (LLDP)
- Quality of Service
- ．Ingress and egress rate limit per port bandwidth control
- ．Storm control support
- ．．Broadcast/Unknown unicast/Unknown multicast
- ．Traffic classification
- ．．IEEE 802.1p CoS
- ．．TOS/DSCP/IP precedence of IPv4/IPv6 packets
- ．Strict priority and Weighted Round Robin (WRR) CoS policies
- Multicast
- ．Supports IPv4 IGMP snooping v2 and v3
- ．Supports IPv6 MLD snooping v1, v2
- ．IGMP querier mode support
- ．IGMP snooping port filtering
- ．MLD snooping port filtering
- Security
- ．Authentication
- ．．Built-in RADIUS client to cooperate with the RADIUS servers
- ．．RADIUS/TACACS login user access authentication
- ．．DHCP Option 82
- ．Access control list
- ．．IPv4/IPv6 IP-based ACL
- ．．IPv4/IPv6 IP-based ACE
- ．．MAC-based ACL
- ．．MAC-based ACE
- ．MAC security
- ．．Static MAC
- ．．MAC filtering
- ．Port security for source MAC address entries filtering
- ．DHCP snooping to filter distrusted DHCP messages
- ．Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
- ．IP source guard prevents IP spoofing attacks
- ．DoS attack prevention
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4711605287906
