Name: PLANET IGS-6325-8T4X network switch Managed L3 Gigabit Ethernet (10/100/1000) Blue, Grey
Brand: PLANET
SKU: IGS-6325-8T4X
Price: 1019.9 EUR
Availability: InStock

PLANET IGS-6325-8T4X, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Manufacturer reference IGS-6325-8T4X

EAN13 4711605285179

€1,019.90

Last units

PLANET IGS-6325-8T4X. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 96 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE.... DC input voltage: 12 - 48 V. Wall mountable

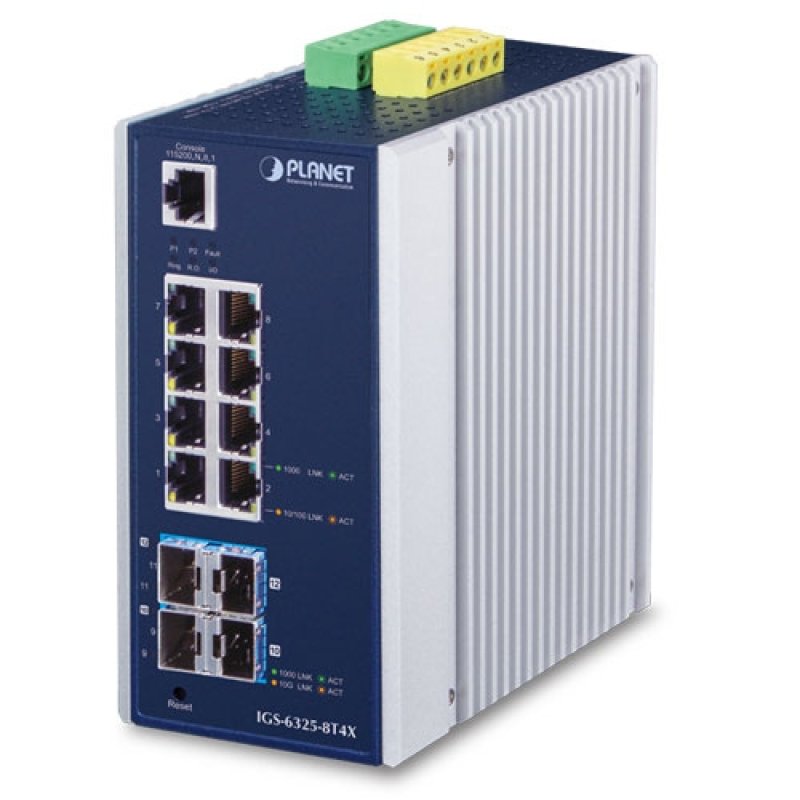

Physical Port
8 10/100/1000BASE-T RJ45 copper ports
4 10GBASE-SR/LR SFP slots, compatible with 1000BASE-X and 2500BASE-X SFP
One RJ45-to-RS232 console interface for basic management and setup

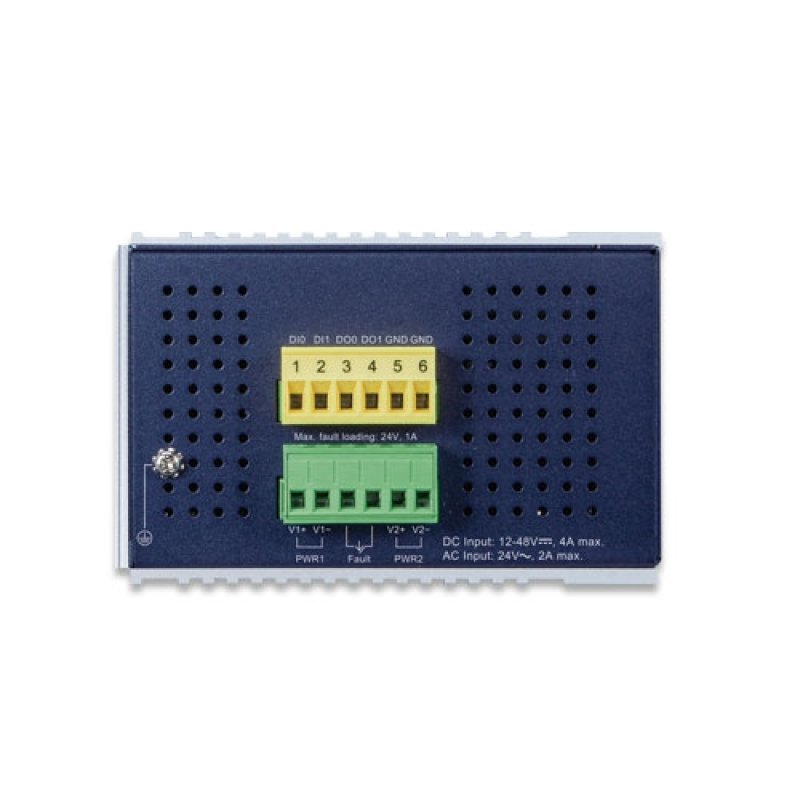

Industrial Hardened Design
Dual power input, redundant power with reverse polarity protection
DC 12 to 48V input or AC 24V input
Active-active redundant power failure protection
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
DIN-rail and wall-mountable designs
IP30 aluminum case
Supports 6000V DC Ethernet ESD protection
Supports -40 to 75 degrees C operating temperature
Layer 3 IP Routing Features
IP dynamic routing protocol supports OSPFv2
IPv4/IPv6 hardware static routing
Routing interface provides per VLAN routing mode
Layer 2 Features
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm control support
Broadcast/Multicast/Unknown unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 4K VLANs groups, out of 4095 VLAN IDs
Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Supports Spanning Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 14 trunk groups, with 16 ports for each trunk
Up to 80Gbps bandwidth (full duplex mode)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Link Layer Discovery Protocol (LLDP)
Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
IEEE 1588 and Synchronous Ethernet network timing
Quality of Service
Ingress shaper and egress rate limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
ToS/DSCP/IP Precedence of IPv4/IPv6 packets
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Traffic-policing on the switch port
DSCP remarking
