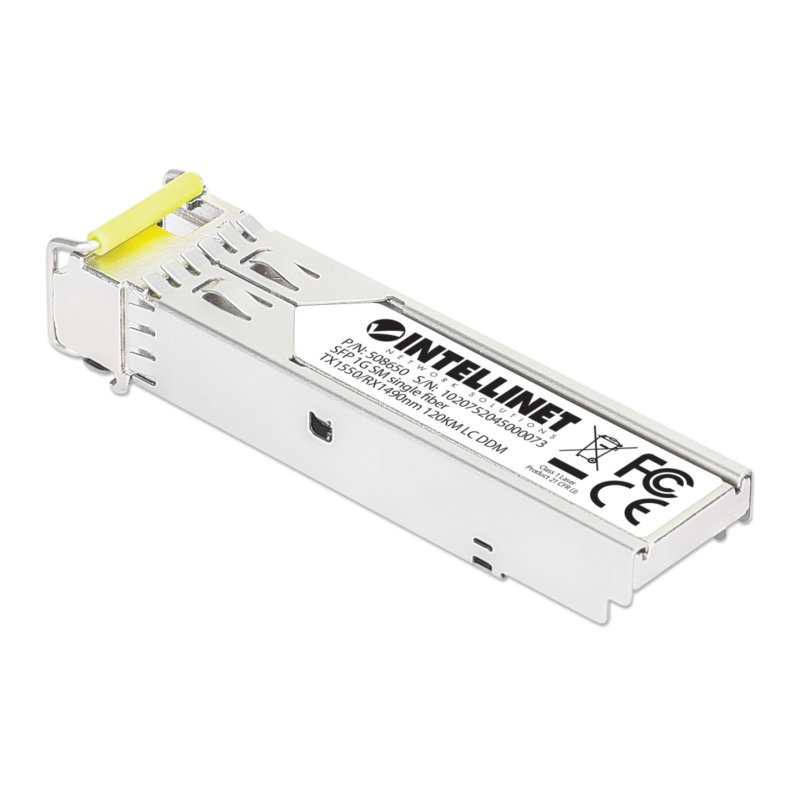

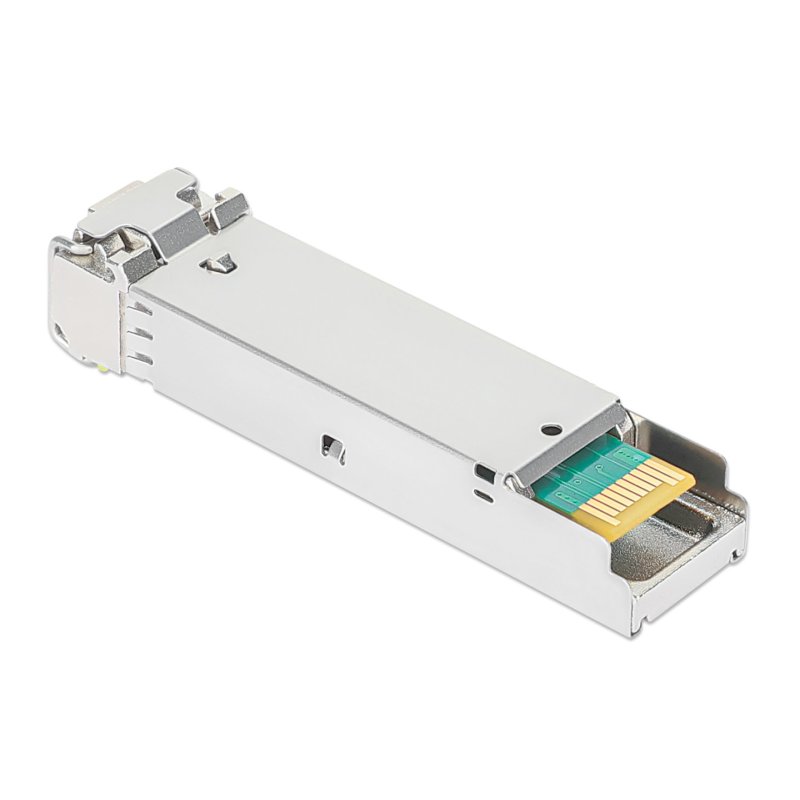

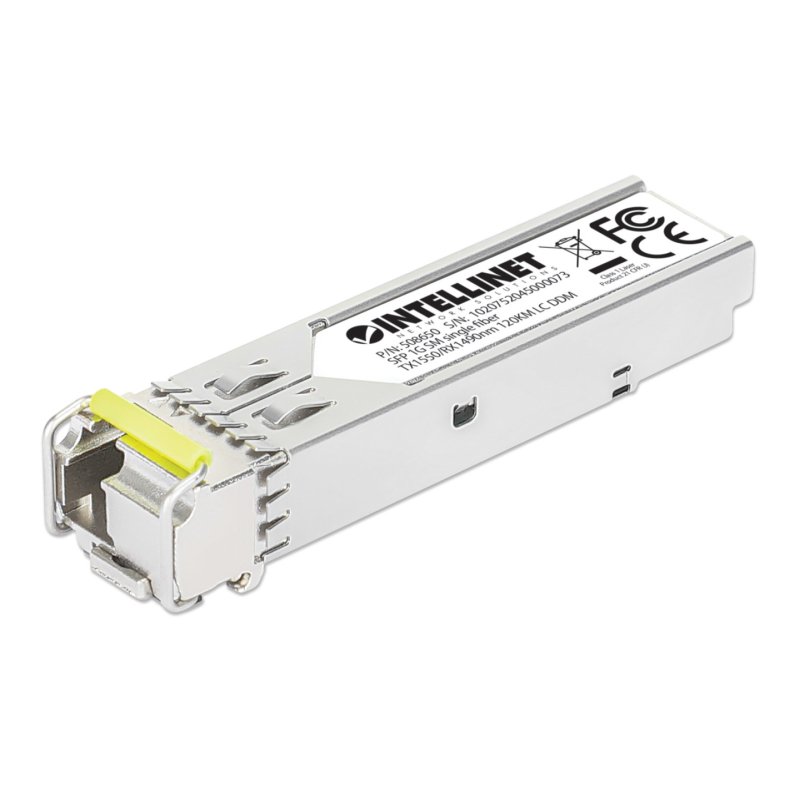

Intellinet Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 120 km

Name: Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 120 km
Brand: Intellinet
SKU: 508650
Price: 160.9 EUR
Availability: InStock

Manufacturer reference 508650

EAN13 0766623508650

€160.90

In stock

Intellinet Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module 1000Base-BX-D (LC) Single-Mode Port, 120 km (75 mi.), BiDi WDM (RX1490/TX1550), MSA-compliant for Maximum Compatibility, Silver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: mini-GBIC/SFP. Product colour: Silver, Housing material: Metal, Brand compatibility: MSA Compliant. Maximum voltage: 3.3 V, Power consumption (typical): 1 W. Compliance certificates: CE, RoHS, Federal Communications Commission (FCC). Width: 14 mm, Depth: 57 mm, Height: 12 mm

MSA-compliant for compatibility with leading switch manufacturers such as Cisco, Intellinet Network Solutions, ZyXEL, TP-Link, Ubiquiti and more (see specs)
Must be used with Gigabit Fiber WDM Bi-Directional SFP Optical Transceiver Module, Intellinet model 508643 or Cisco model GLC-BX120-U
Data transfer rate: 1000 Mbps
One 1000Base-BX single-mode Fiber LC port
Fiber distance support: up to 120 km (75 mi.)
WDM (wavelength division multiplexing) technology utilizes only one strand of fiber to transmit data on separate receive and transmit wavelengths
Wavelengths: receive (RX), 1490 nm; transmit (TX), 1550 nm
Equivalent to the Cisco GLC-BX120-D transceiver
SFP standard form factor

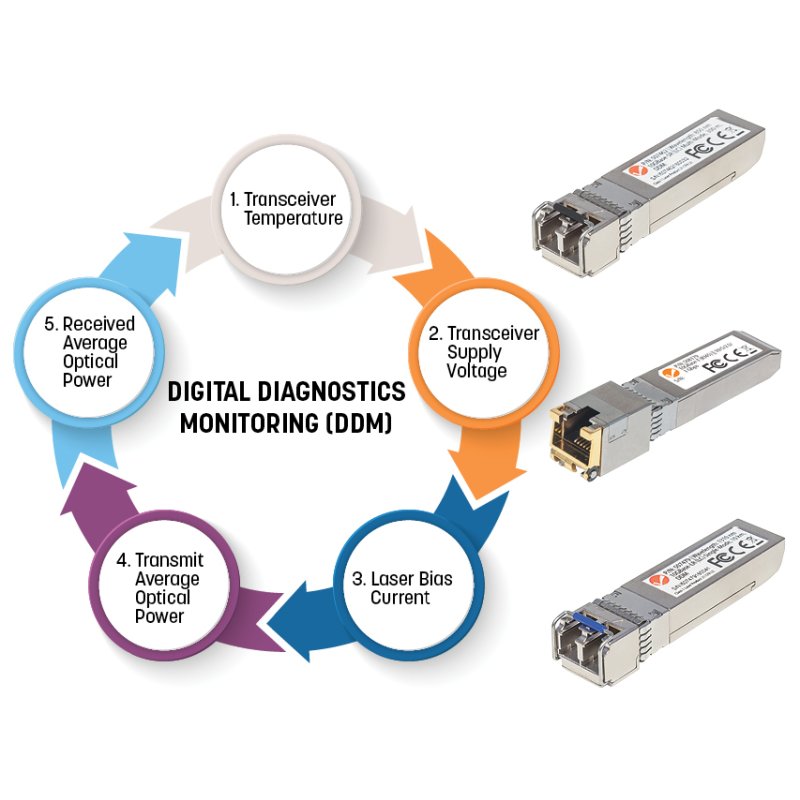

Supports digital diagnostics monitoring (DDM)
Low EMI due to fully metallic housing
Supports hot-plugging
Fully NDAA-compliant
