1000) Aluminium, Blue

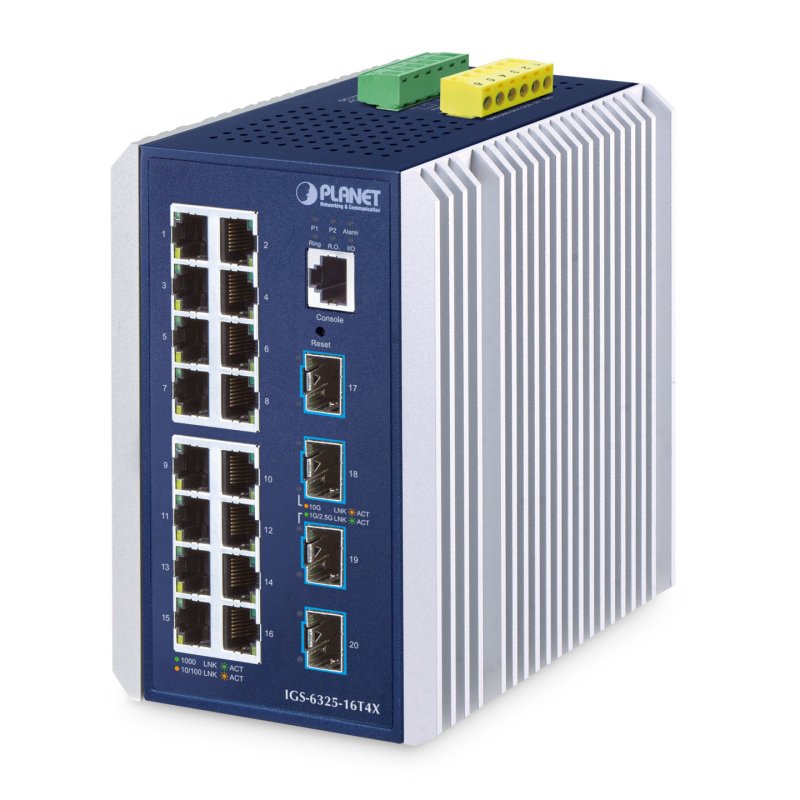

Name: PLANET IP30 Industrial L3 16-Port Managed Gigabit Ethernet (10/100/1000) Aluminium, Blue
Brand: PLANET
SKU: IGS-6325-16T4X
Price: 1444.9 EUR
Availability: InStock

PLANET IP30 Industrial L3 16-Port, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Manufacturer reference IGS-6325-16T4X

EAN13 4711605287425

€1,444.90

Last units

PLANET IP30 Industrial L3 16-Port. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 4. Full duplex. MAC address table: 32000 entries, Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE.... DC input voltage: 9 - 48 V. Wall mountable

Physical Port
．16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
．4 10GBASE-SR/LR SFP slots, compatible with 1G/2.5GBASE-X SFP
．One RJ45-to-RS232 console interface for basic management and setup
Industrial Protocol
．Modbus TCP for real-time monitoring in the SCADA system
．IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
Digital Input and Digital Output
．2 Digital Input (DI)
．2 Digital Output (DO)
．Integrates sensors into auto alarm system
．Transfers alarm to IP network via email and SNMP trap
Layer 3 IP Routing Features
．IP dynamic routing protocol supports RIP, OSPFv2 and OSPFv3
．Supports maximum 128 static routes and route summarization
．IPv4 dynamic routing protocol supports OSPFv2
．IPv4/IPv6 hardware static routing
．Routing interface provides per VLAN routing mode
Layer 2 Features
．Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
．High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
．Storm control support
．．Broadcast/Multicast/Unknown unicast
．Supports VLAN
．Supports Spanning Tree Protocol
．Supports Link Aggregation
．Provides port mirror (many-to-1)
．Port mirroring to monitor the incoming or outgoing traffic on a particular port
．Loop protection to avoid broadcast loops
．Link Layer Discovery Protocol (LLDP)
．Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
．Supports G.8032 ERPS (Ethernet Ring Protection Switching)
．IEEE 1588 and Synchronous Ethernet network timing
Quality of Service
．Ingress shaper and egress rate limit per port bandwidth control
．8 priority queues on all switch ports
．Traffic classification
．Strict priority and Weighted Round Robin (WRR) CoS policies
．Traffic-policing on the switch port
．DSCP remarking
．Voice VLAN
Multicast
．Supports IPv4 IGMP snooping v1, v2 and v3
．Supports IPv6 MLD snooping v1 and v2
．Querier mode support
．IPv4 IGMP snooping port filtering
．IPv6 MLD snooping port filtering
．MVR (Multicast VLAN Registration)
Security
．Authentication
．．IEEE 802.1x port-based/MAC-based network access authentication
．．IEEE 802.1x authentication with guest VLAN
．．Built-in RADIUS client to cooperate with the RADIUS servers
．．RADIUS/TACACS users access authentication
．．Guest VLAN assigns clients to a restricted VLAN with limited services
．Access Control List
．Source MAC/IP address binding
．DHCP Snooping to filter distrusted DHCP messages
．Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
．IP Source Guard prevents IP spoofing attacks
．IP address access management to prevent unauthorized intruder
