1000) Aluminium, Blue

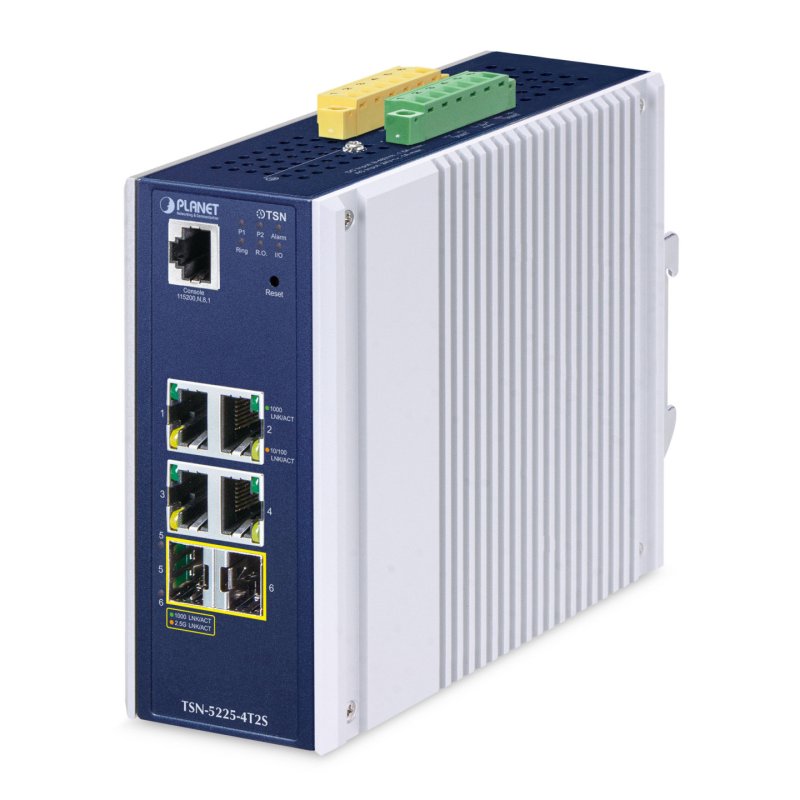

Name: PLANET TSN-5225-4T2S network switch Managed L2 Gigabit Ethernet (10/100/1000) Aluminium, Blue
Brand: PLANET
SKU: TSN-5225-4T2S
Price: 1040.9 EUR
Availability: InStock

PLANET TSN-5225-4T2S, Managed, L2 , Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable

Manufacturer reference TSN-5225-4T2S

EAN13 4711605287821

€1,040.90

Last units

PLANET TSN-5225-4T2S. Switch type: Managed, Switch layer: L2 . Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 4, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 18 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbv, IEEE 802.1ab, IEEE 802.1ag, IEEE 802.1as, IEEE 802.1p,.... DC input voltage: 9 - 48 V. Wall mountable

Physical Port
．4 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
．2 1000/2500BASE-X SFP slots for SFP type auto detection
．One RJ45 console interface for basic management and setup
Industrial Case and Installation
．Dual power input, redundant power with reverse polarity protection
．．DC 9 to 48V input or AC 24V input
．．Active-active redundant power failure protection
．．Backup of catastrophic power failure on one supply
．．Fault tolerance and resilience
．Supports 5000V DC Ethernet ESD protection
Time Sensitive Networking
．High Precision Time Synchronization
．．IEEE1588 (Time Stamping)
．．802.1AS-Rev gPTP default profile
．Shapers
．．802.1Qbv Enhancements for Scheduled Traffic
．．802.1Qch (Cyclic Queuing and Forwarding)
．TSN Stream Policing
．．802.1Qci (Per Stream Filtering and Policing)
．Redundancy
．．802.1CB FRER for seamless redundancy
．．Also standard Linear and Ring protection
．Delay Reduction
．．IEEE 802.1Qbu Frame Preemption
．．IEEE 802.3br Interspersing Express Traffic (IET)
Layer 2 Features
．Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
．High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
．Storm Control support
．．Broadcast/Multicast/Unicast
．Supports VLAN
．Supports Spanning Tree Protocol
．Supports Link Aggregation
．Provides port mirror (many-to-1)
．Port mirroring to monitor the incoming or outgoing traffic on a particular port
．Loop protection to avoid broadcast loops
．Supports ERPS
．Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
．LLDP and LLDP-MED
Layer 3 IP Routing Features
．Supports maximum 32 static routes and route summarization
Quality of Service
．Ingress Shaper and Egress Rate Limit per port bandwidth control
．8 priority queues on all switch ports
．Traffic classification
．Strict priority and Weighted Round Robin (WRR) CoS policies
．Supports QoS and In/Out bandwidth control on each port
．Traffic-policing on the switch port
．DSCP remarking
．Voice VLAN
Security
．Authentication
．．IEEE 802.1x Port-based/MAC-based network access authentication
．．Built-in RADIUS client to co-operate with the RADIUS servers
．．TACACS login users access authentication
．．RADIUS/TACACS users access authentication
．Access Control List
．Source MAC/IP address binding
．DHCP Snooping to filter un-trusted DHCP messages
．Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
．IP Source Guard prevents IP spoofing attacks
．IP address access management to prevent unauthorized intruder
