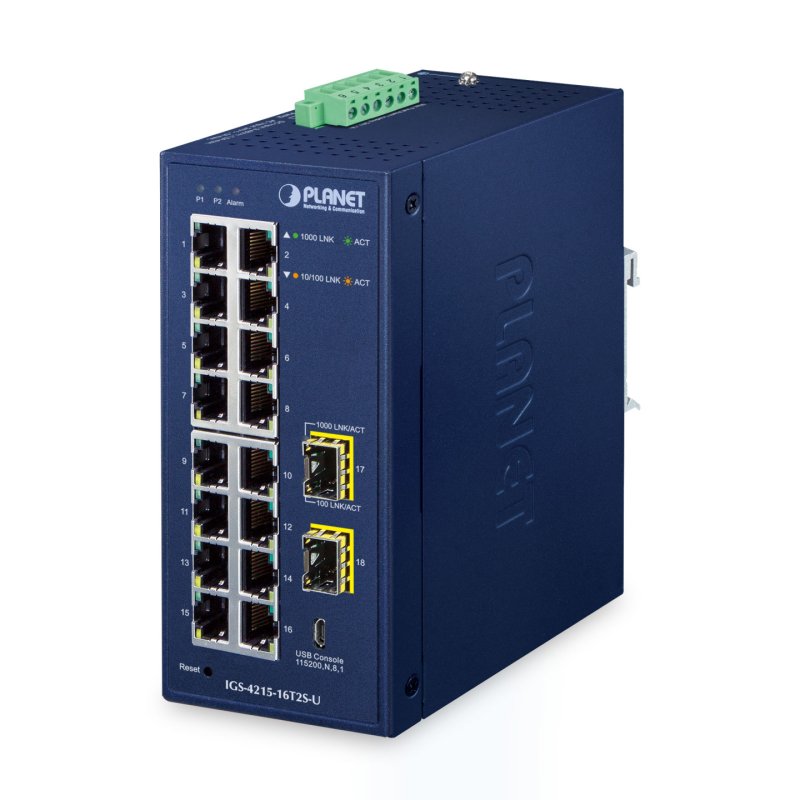

PLANET Technology Corp.po PLANET IP30 Industrial L2/L4 16-Port Managed L2/L4 Gigabit Ethernet (10/100/1000) Blue
PLANET IP30 Industrial L2/L4 16-Port, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Full duplex, Wall mountable
IGS-4215-16T2S-U
4711605287104
€529.90
Tax included
Description
PLANET IP30 Industrial L2/L4 16-Port. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 2. Full duplex. MAC address table: 8000 entries, Switching capacity: 36 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE.... DC input voltage: 9 - 48 V. Wall mountable
- Physical Port
- ．16-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function
- ．2 SFP interfaces, supporting 100/1000BASE-X SFP transceiver type auto detection
- ．1-port RJ45 console for basic management and setup (IGS-4215-16T2S only)
- ．1-port USB console for basic management and setup (IGS-4215-16T2S-U only)
- Industrial Case and Installation
- ．Dual power input, redundant power with reverse polarity protection
- ．．DC 12 to 48V input or AC 24V input (IGS-4215-16T2S only)
- ．．DC 9 to 48V input or AC 24V input (IGS-4215-16T2S-U only)
- ．．Active-active redundant power failure protection
- ．．Backup of catastrophic power failure on one supply
- ．．Fault tolerance and resilience
- ．IP30 metal case
- ．DIN-rail and wall-mount designs
- ．Supports ESD 6KV DC Ethernet protection
- ．Supports -40 to 75 degrees C operating temperature
- ．Free fall, shock-proof and vibration-proof for industries
- ．Fanless design
- Switching
- ．Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- ．IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
- ．8K MAC address table size
- ．10K jumbo frame
- ．Automatic address learning and address aging
- ．Supports CSMA/CD protocol
- Layer 2 Features
- ．Supports VLAN
- ．Supports Spanning Tree Protocol
- ．Supports Link Aggregation
- ．Provides port mirror (many-to-1)
- ．IPv6 MAC/VLAN/Multicast Address Table
- ．Loop protection to avoid broadcast loops
- ．Supports ERPS (Ethernet Ring Protection Switching)
- Quality of Service
- ．Ingress/Egress Rate Limit per port bandwidth control
- ．Support 8 priority queues on all switch ports
- ．Traffic classification
- ．DSCP remarking
- Multicast
- ．Supports IPv4 IGMP snooping v1, v2, v3
- ．Supports IPv6 MLD snooping v1, v2
- ．Querier mode support
- ．IGMP snooping port filtering
- ．MLD snooping port filtering
- Security
- ．Storm Control support
- ．．Broadcast/Multicast/Unicast
- ．Authentication
- ．．IEEE 802.1X port-based network access authentication
- ．．Built-in RADIUS client to cooperate with the RADIUS servers
- ．．DHCP Relay and DHCP Option 82
- ．．RADIUS/TACACS users access authentication
- ．Access Control List
- ．．IPv4/IPv6 IP-based ACL
- ．．IPv4/IPv6 IP-based ACE
- ．．MAC-based ACL
- ．．MAC-based ACE
- ．MAC Security
- ．．Static MAC
- ．．MAC filtering
- ．Port security for source MAC address entries filtering
- ．DHCP snooping to filter distrusted DHCP messages
- ．Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
- ．IP source guard prevents IP spoofing attacks
- ．IP address access management to prevent unauthorized intruder
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4711605287104
