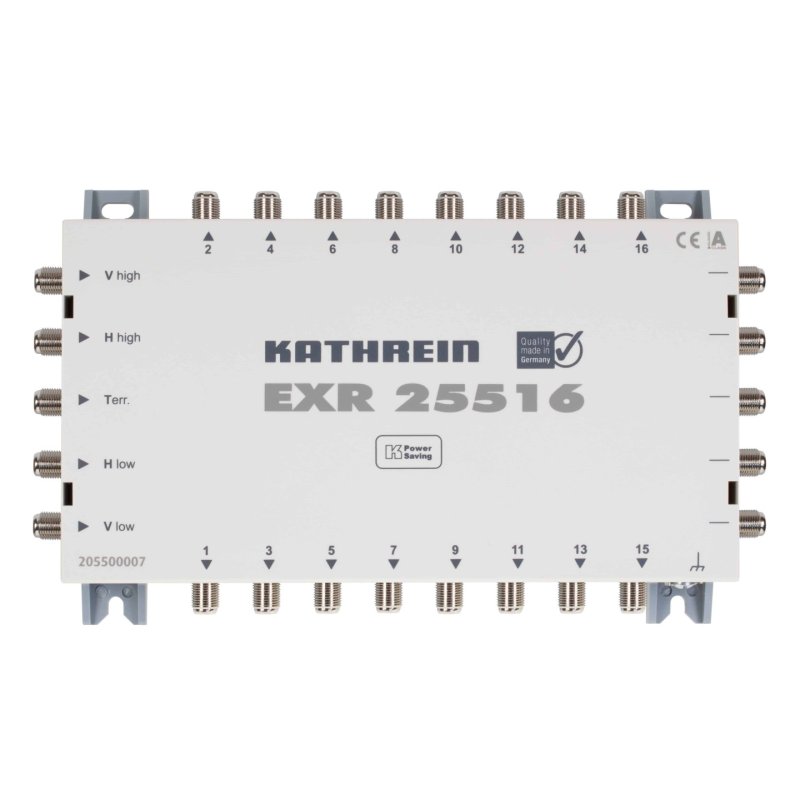

Kathrein Kathrein EXR 25516 satellite multiswitch 5 inputs 16 outputs
Kathrein EXR 25516, 5 inputs, 16 outputs, 25 dB, IP30, F, 109 dBμV
205500007
4063242002191
€281.90
Tax included
Description
Kathrein EXR 25516. Number of inputs: 5 inputs, Number of outputs: 16 outputs, Decoupling (horizontal/vertical): 25 dB. Output voltage: 109 dBμV. Width: 239 mm, Depth: 43 mm, Height: 148 mm
- Cascadable multiswitch for distribution of four satellite levels and terrestrial signals to many receivers
- Only one line is required per receiver (two lines for twin receivers)
- Independent horizontal/vertical, low/high selection from any receiver
- Switching takes place via the coaxial cable with 14/18 V and 0/22 kHz signal frequency
- Integrated amplifier for low connection losses in the satellite range
- Preemphasis for equalization of cable attenuation integrated
- Reception of the terrestrial range possible even when the satellite receiver is switched off
- Terrestrial range: 5-862 MHz passive
- High decoupling between outputs
- For indoor installation
- Through-connection multi-switch for system expansion by 16 connections each
- Up to six devices can be cascaded
- Kathrein Power Saving:
- As soon as no receiver is active, a signal is sent to the end multi-switch via the trunk vertical low, which then switches off the LNB voltage supply
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4063242002191
