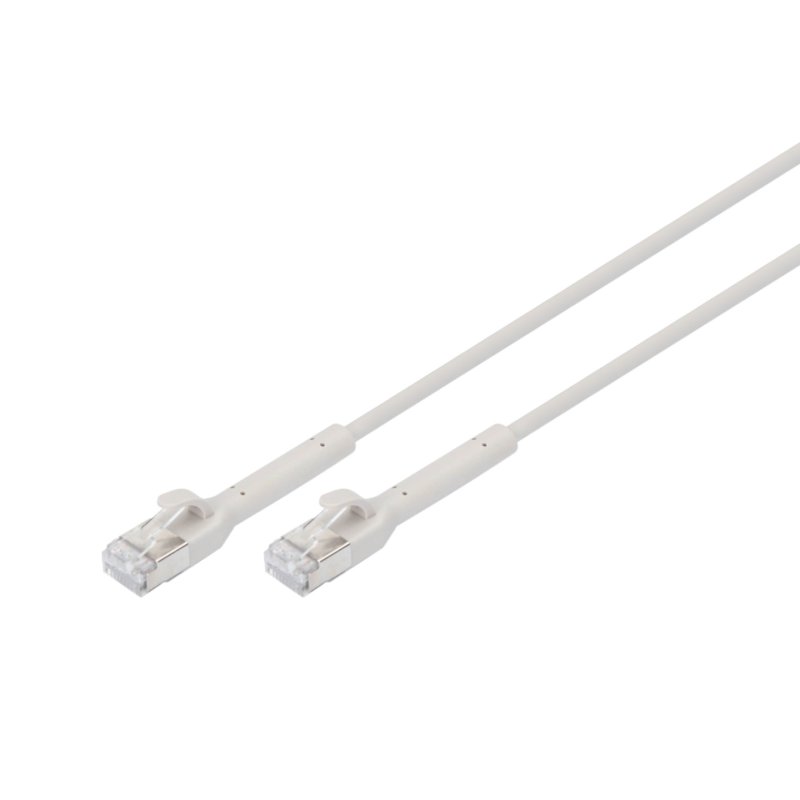

Digitus Digitus CAT 6A F-FTP bendable patch cord, copper, 1 m, gray
Digitus CAT 6A F-FTP bendable patch cord, copper, 1 m, gray, 1 m, Cat6a, F/FTP (FFTP), RJ-45, RJ-45, Grey
DK-1632-A-010B
4016032504108
€9.90
Tax included
Description
Digitus CAT 6A F-FTP bendable patch cord, copper, 1 m, gray. Cable length: 1 m, Cable standard: Cat6a, Cable shielding: F/FTP (FFTP), Connector 1: RJ-45, Connector 2: RJ-45, Product colour: Grey
- Outer casing: LSZH (Low Smoke Zero Halogen)
- Total diameter: 3.8 mm ± 0.15 mm
- Conductor stranded: AWG 32/7 bare copper, 0.12 ± 0.005 mm
- Insulation: HD-PE (high-density polyethylene)
- Bending radius: 15x OD
- Plug: RJ45 plug
- Color code: Orange x white, green x white, blue x white, brown x white
- Wiring standard: EIA/TIA 568B
- PIN assignment: 1:1
- Contact resistance: 376.96Ω/km maximum at 20 °C
- Imbalance of the resistance: maximum 3%
- Operating temperature: -20 °C up to 60 °
- Flame retardancy: IEC 60332-1
- Smoke emission: IEC 61034
- Typical applications: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
- Standards: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
- Dielectric strength: AC 500V for 1 minute without breakdown (TIA/EIA-364-21)
- Service life: 750 mating cycles
- Packaging: DIGITUS Hangtag
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4016032504108
