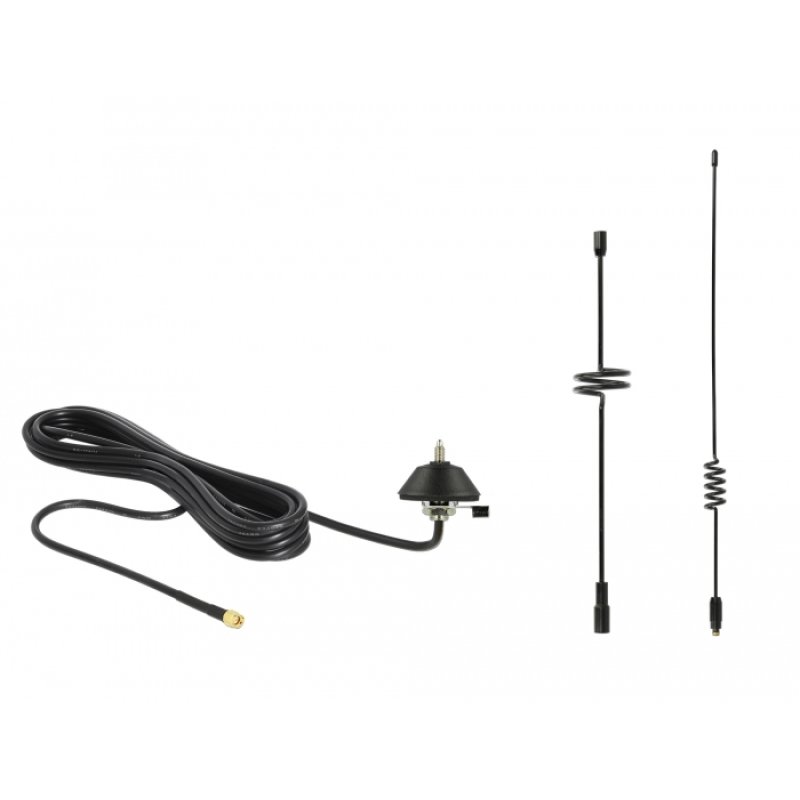

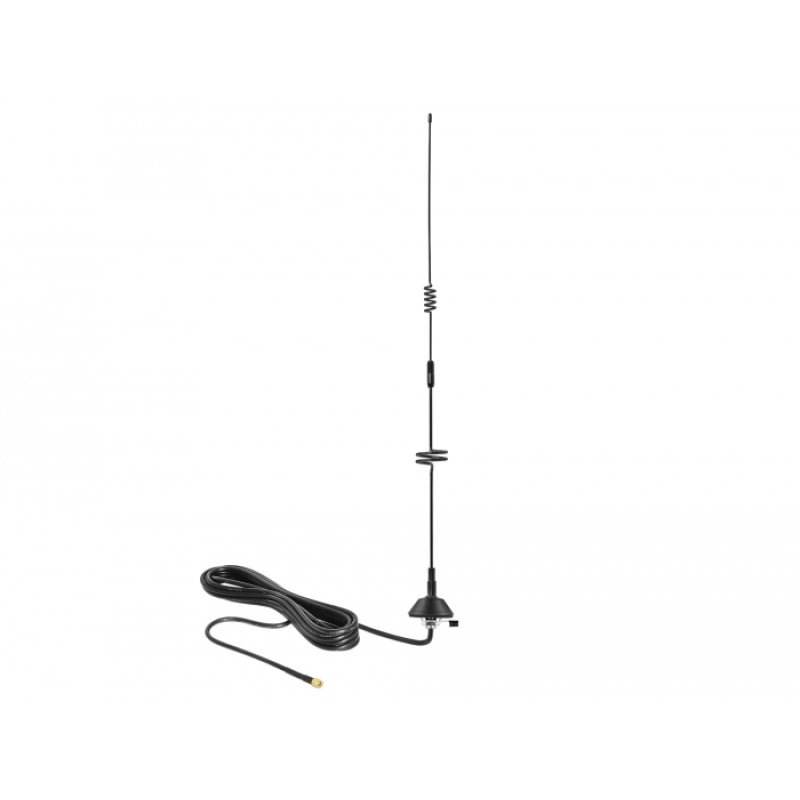

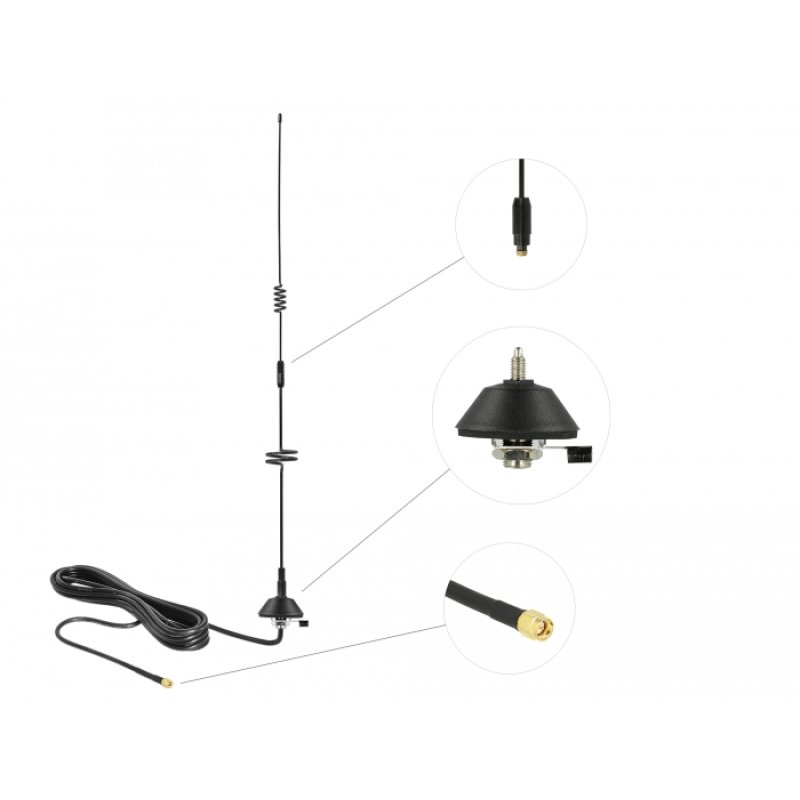

Delock DeLOCK 12582 network antenna Omni-directional antenna SMA 7 dBi
DeLOCK 12582, 7 dBi, 0.698 - 0.96; 1.71 - 2.17; 2.5 - 2.7 GHz, 50 Ω, Omni-directional antenna, SMA, Male
12582
4043619125821
€42.00
Tax included
Description
DeLOCK 12582. Antenna gain level (max): 7 dBi, Frequency band: 0.698 - 0.96; 1.71 - 2.17; 2.5 - 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Height: 56.3 mm, Diameter: 4.5 mm. Package type: Box. Quantity per pack: 1 pc(s)

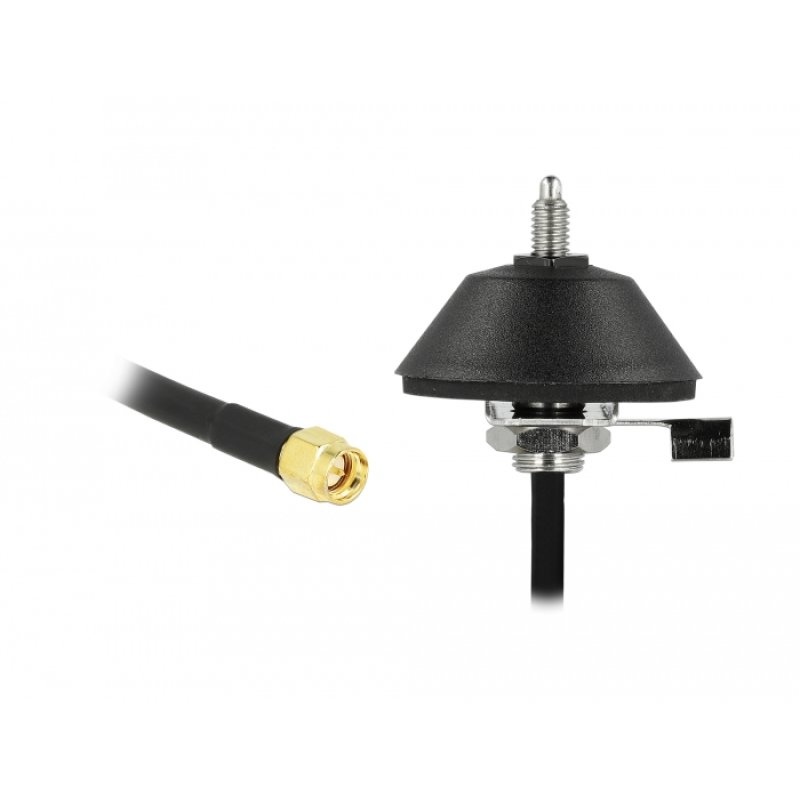

- Connector: 1 x SMA plug
- Frequency range:
- 698 MHz - 960 MHz
- 1710 MHz - 2170 MHz
- 2500 MHz - 2700 MHz
- ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN 2.4
- GHz
- Antenna gain: 5 - 7 dBi
- Impedance: 50 Ohm
- VSWR: 1.5
- Polarisation: linear, vertical
- Operating temperature: -20 °C ~ 70 °C
- Housing material: metal
- Colour: black
- Protection class: IPx5
- Cable: coaxial
- Cable type: RG-58
- Cable colour: black
- Cable attenuation: 0.6 dB @ 1 GHz per meter
- Cable diameter: ca. 4.95 mm
- Cable length incl. connector: ca. 3 m

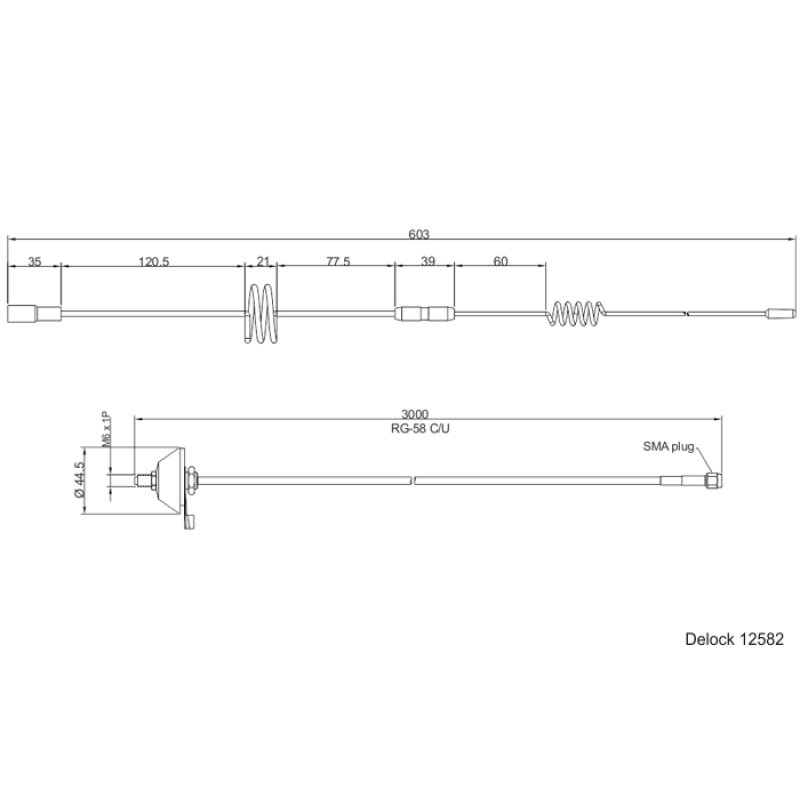

- Dimensions (LxD): ca. 56.3 x 4.5 mm
