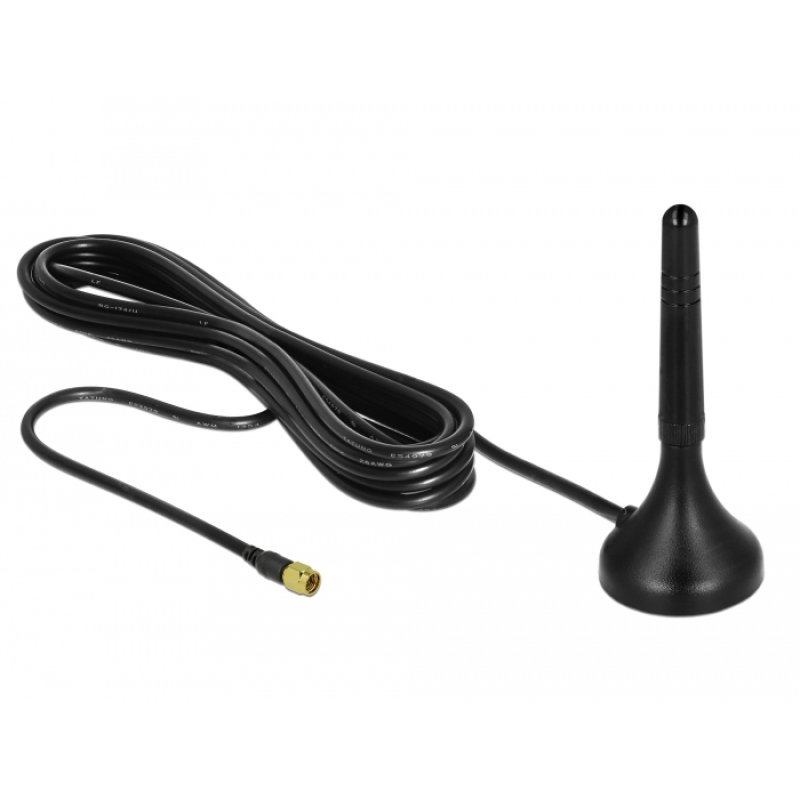

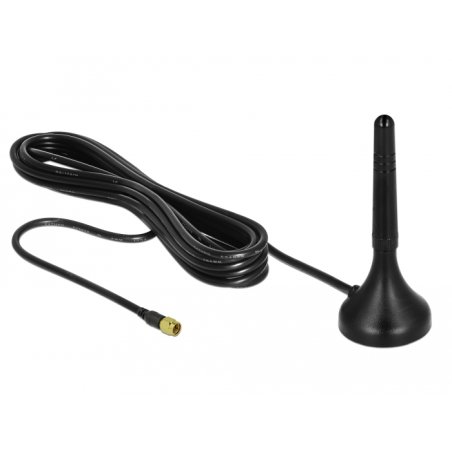

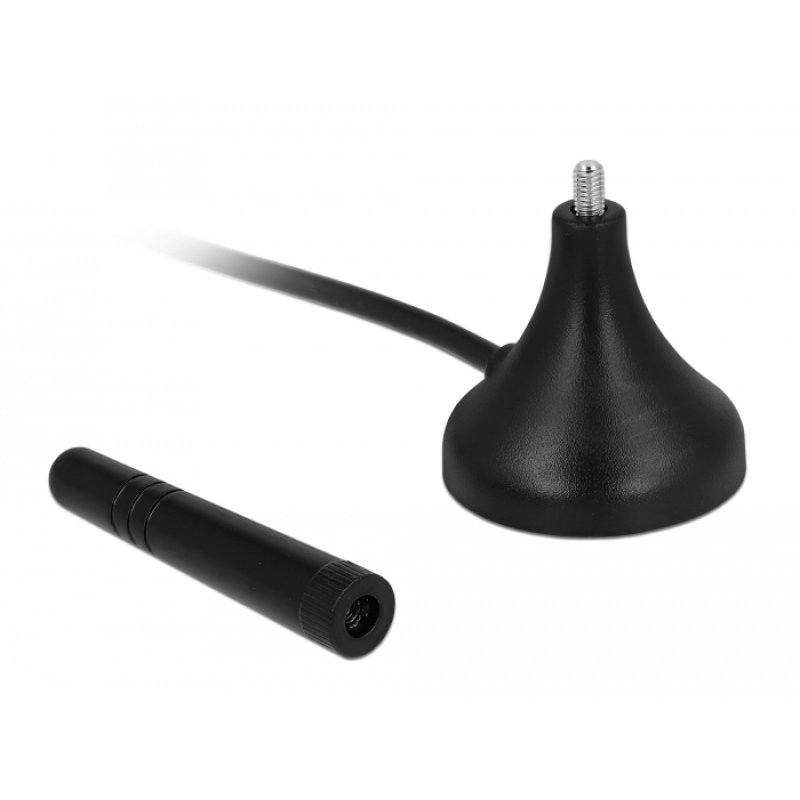

Delock DeLOCK 12583 network antenna Omni-directional antenna SMA 2 dBi

Name: DeLOCK 12583 network antenna Omni-directional antenna SMA 2 dBi
Brand: Delock
SKU: 12583
Price: 24 EUR
Availability: InStock

DeLOCK 12583, 2 dBi, 0.698 - 0.96; 1.71 - 2.17; 2.5 - 2.7 GHz, 50 Ω, Omni-directional antenna, SMA, Male

Manufacturer reference 12583

EAN13 4043619125838

€24.00

In stock

DeLOCK 12583. Antenna gain level (max): 2 dBi, Frequency band: 0.698 - 0.96; 1.71 - 2.17; 2.5 - 2.7 GHz, Impedance: 50 Ω. Antenna type: Omni-directional antenna, Antenna connector type: SMA, Connector gender: Male. Height: 72 mm, Diameter: 2.9 cm. Package type: Box. Quantity per pack: 1 pc(s)

Connector: 1 x SMA plug
ZigBee, LoRa, DECT, Z-Wave, NB-IoT, Bluetooth, GSM, UMTS, LTE, ISM, WLAN 2.4 GHz
Antenna gain: 1 - 2 dBi
Impedance: 50 Ohm
VSWR: 1.5
Polarisation: linear, vertical
Operating temperature: -20 °C ~ 70 °C
Housing material: metal
Colour: black
Protection class: IPx5
Cable: coaxial
Cable type: RG-174 A/U
Cable colour: black
Cable attenuation: 1.5 dB @ 1.5 GHz per meter
Cable diameter: ca. 2.7 mm
Cable length incl. connector: ca. 3 m
Dimensions (LxD): ca. 72.0 x 29.0 mm
