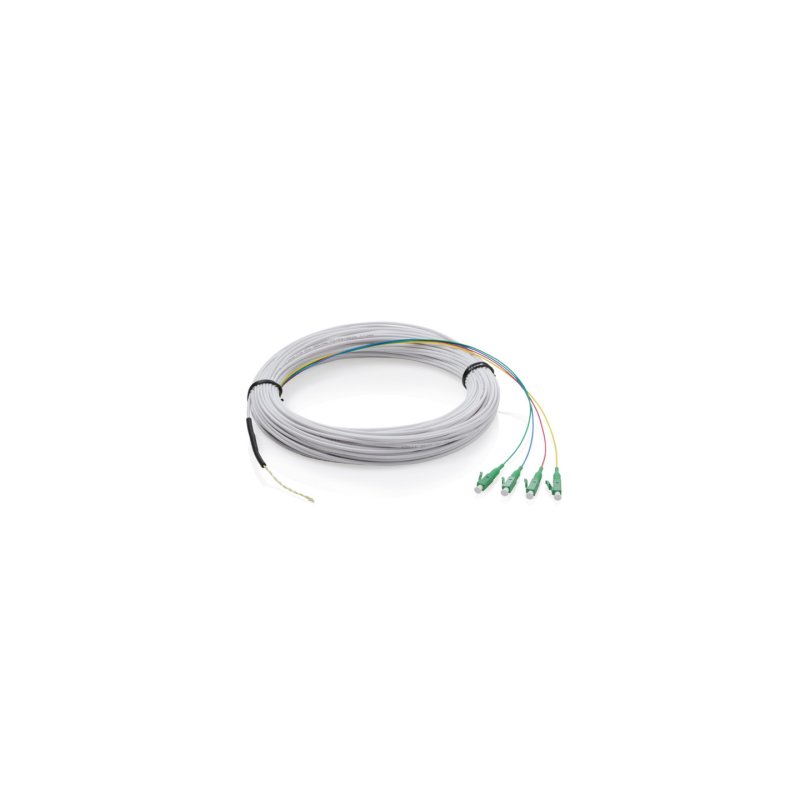

Digitus Digitus FTTH drop cable, singlemode, 4 fibers, 4 LC/APC, 30 m
Digitus FTTH drop cable, singlemode, 4 fibers, 4 LC/APC, 30 m
DK-3904LCA-30-1
4016032509097
€24.00
Tax included
Description
Digitus FTTH drop cable, singlemode, 4 fibers, 4 LC/APC, 30 m
- Fiber type : Singlemode 9/125
- Category : G657A2
- Cable length : 30 m
- Number of fibers : 4
- Fiber colors : blue, green, yellow, red
- Connector type : LC/APC
- Coat color : White
- Sheath material : LSZH
- Stranding element : Kevlar yarn
- Cable structure : Dca
- Cable diameter : 2,4mm
- Diameter of the pulling aid : 7-8cm (length)
- Min. Bending radius of the cable : 10D/20D
- Tensile strength : 400 N
- Compressive strength : 1000 N
- Insertion loss of the plug : ≤0.3 dB
- Return loss of the plug : ≥60 dB
- Storage temperature : -40 to 80 °C
- Working temperature : -20~ 70
- Cable weight : 0,37kg
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4016032509097
