- New
HETTICH FRANCE SAS Hettich 9071205 drawer roller/slide
Hettich 9071205, 200 pc(s)
CFA10201
4023149030901
€7.00
Tax included
Description
Hettich 9071205. Quantity per pack: 200 pc(s)

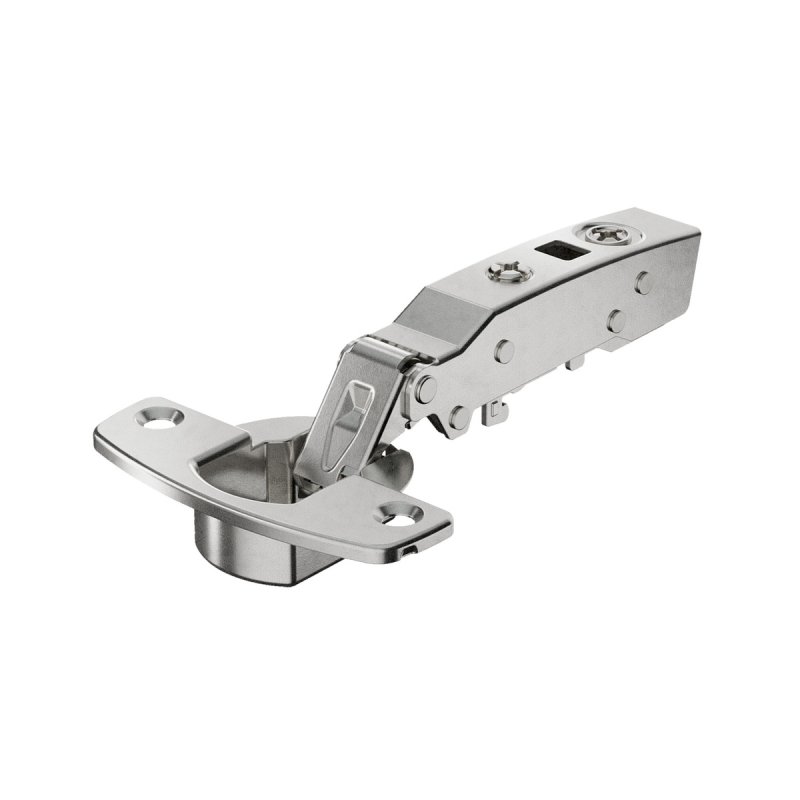

- Sensys 110° hinge
- With integrated Silent System, with self closing feature (Sensys 8645i)
- Quality classification under EN 15570, Level 3
- Opening angle 110 °
- For door thickness 15-24 mm

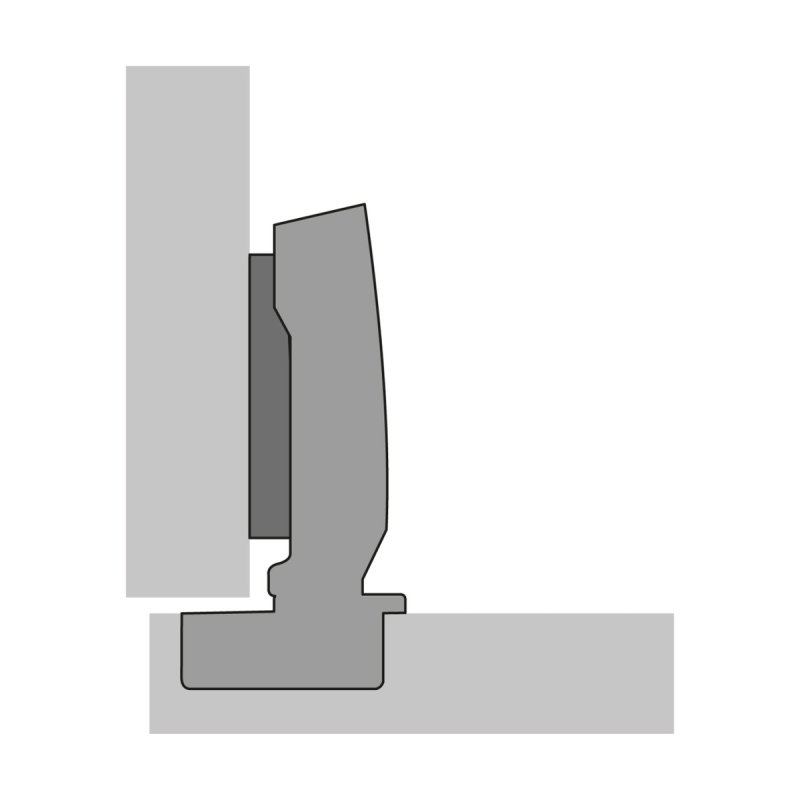

- Door mounting option overlay (B 12.5 mm)

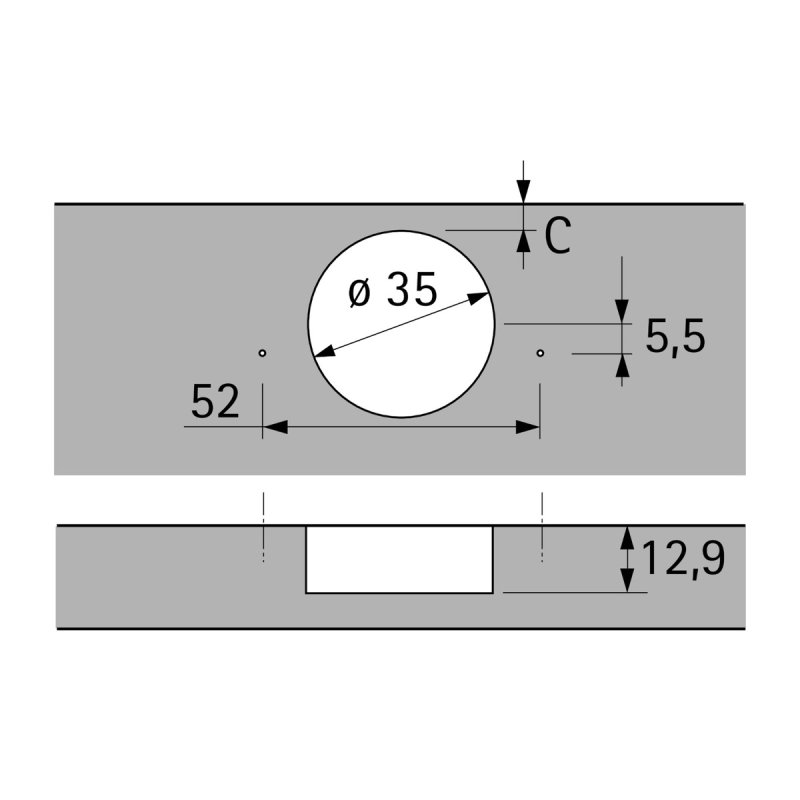

- TH - drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm

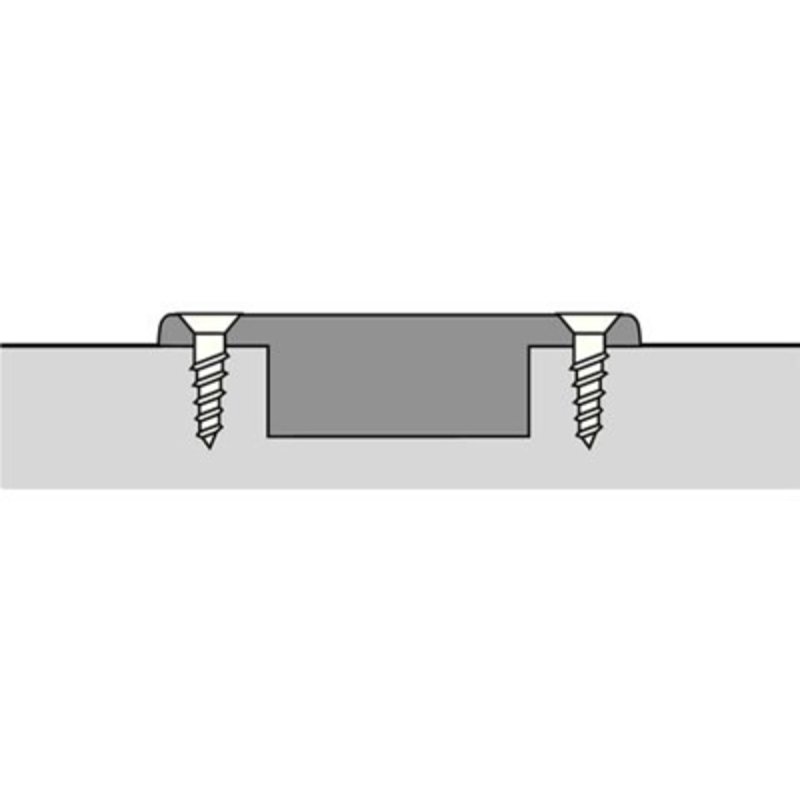

- Installation for screwing on (TH 52)
- Integrated overlay adjustment 2 mm / -2 mm
- Integrated depth adjustment 3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149030901
