- New
HETTICH FRANCE SAS Hettich 9099660 drawer roller/slide
Hettich 9099660, 50 pc(s)
CFA10242
4023149852848
€9.90
Tax included
Description
Hettich 9099660. Quantity per pack: 50 pc(s)

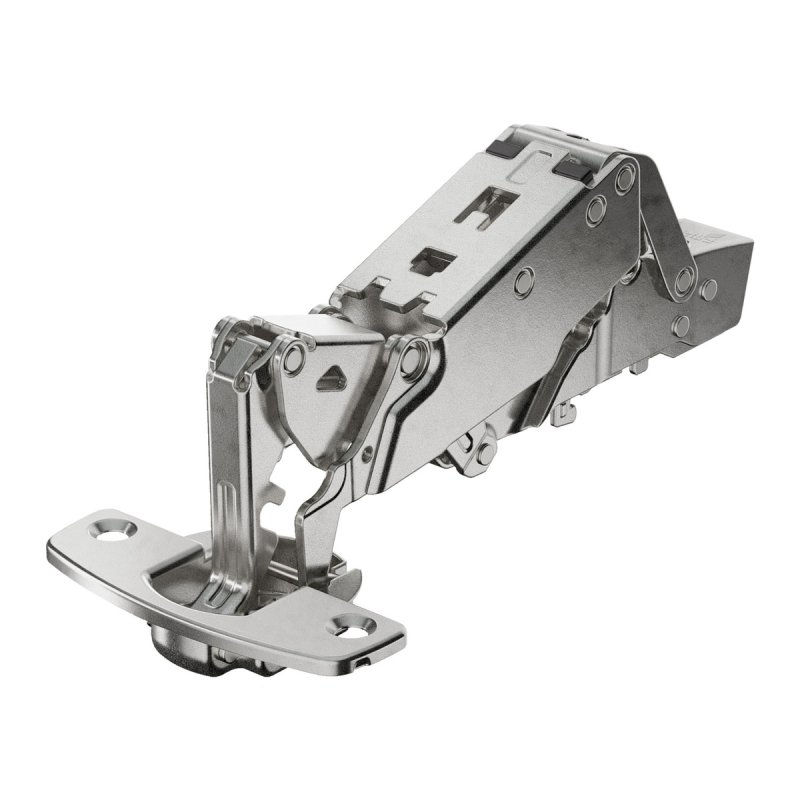

- Sensys wide angle hinge, with zero protrusion
- Without Silent System, without self closing feature, for handleless applications (Sensys 8687)
- Quality classification under EN 15570, Level 3
- Opening angle 165°
- For door thickness 15-32 mm

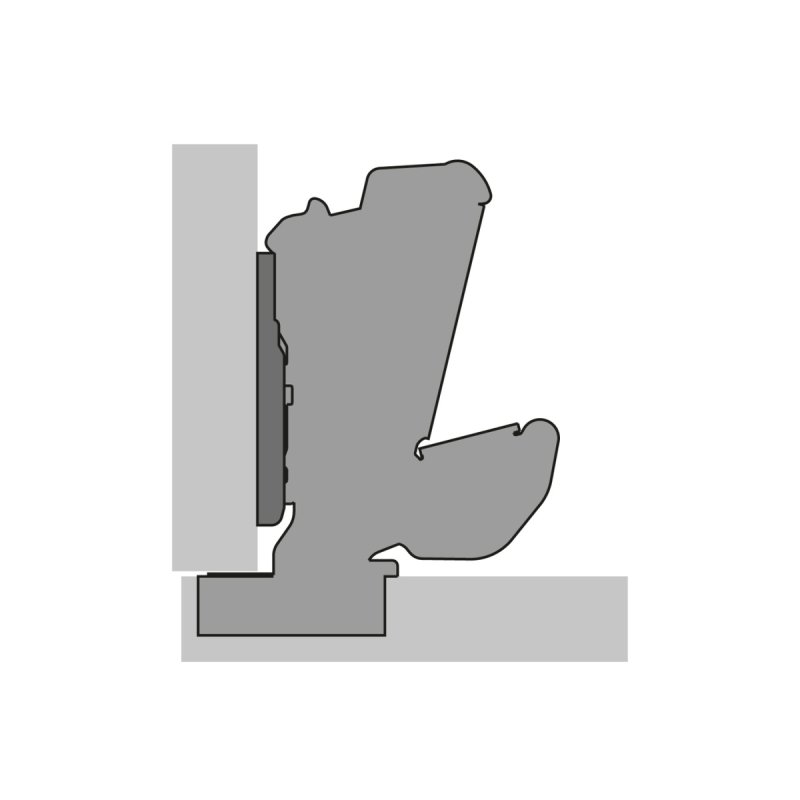

- Door mounting option overlay (B 12.5 mm)
- TH - drilling pattern 52 x 5.5 mm
- Cup depth 11.6 mm

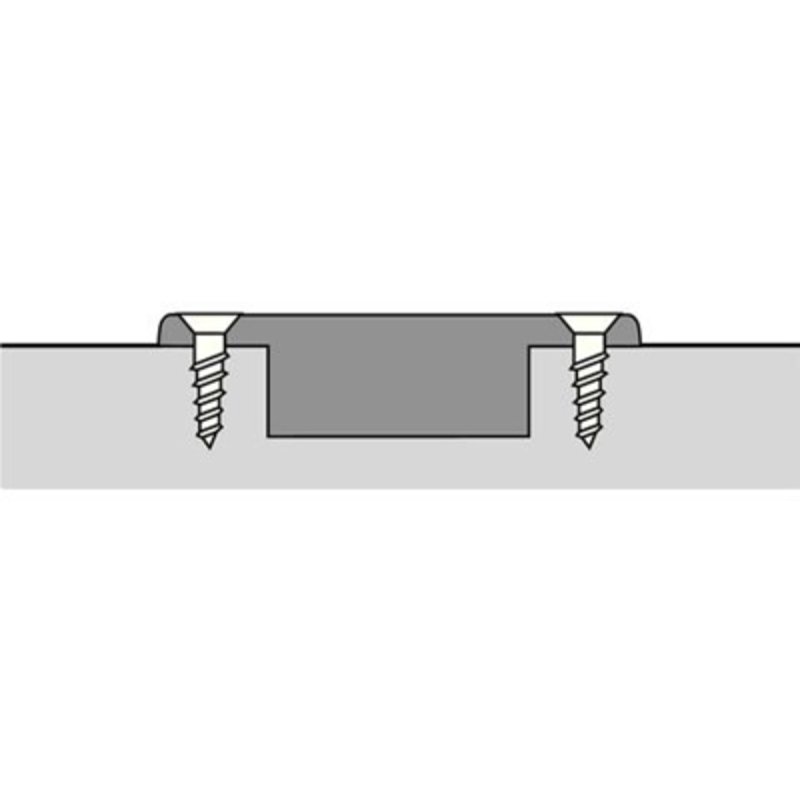

- Installation for screwing on (TH 52)
- Integrated overlay adjustment 2 mm / -2 mm
- Integrated depth adjustment 3 mm / -2 mm
- Height adjustment at mounting plate
- steel / die-cast zinc nickel plated
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149852848
