HETTICH FRANCE SAS Hettich 9088176 drawer roller/slide
Hettich 9088176, 50 pc(s)
CFA10244
4023149871504
€9.90
Tax included
Description
Hettich 9088176. Quantity per pack: 50 pc(s)

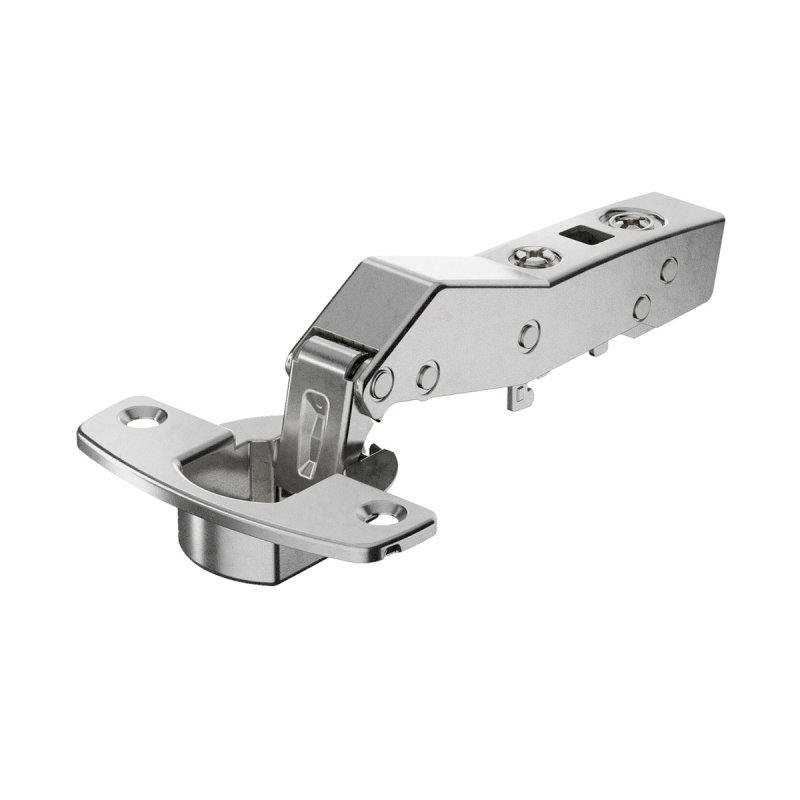

- Sensys angle hinge W30
- Without Silent System, without self closing feature, for handleless applications (Sensys 8669 W30)
- Quality classification under EN 15570, Level 3
- Opening angle 95°
- For door thickness 15 - 28 mm

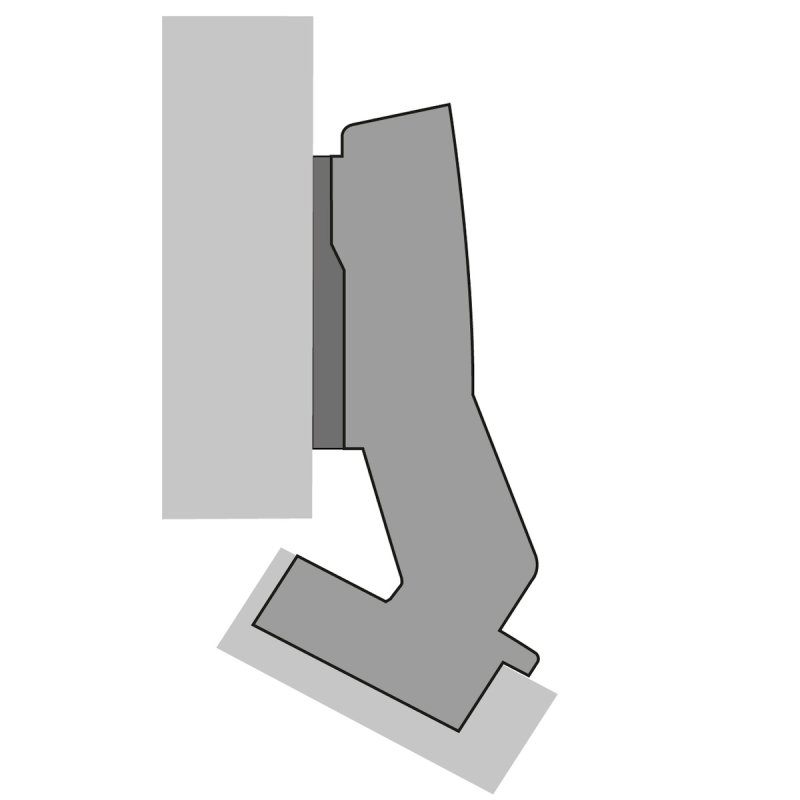

- Door mounting option overlay (B 2 mm)

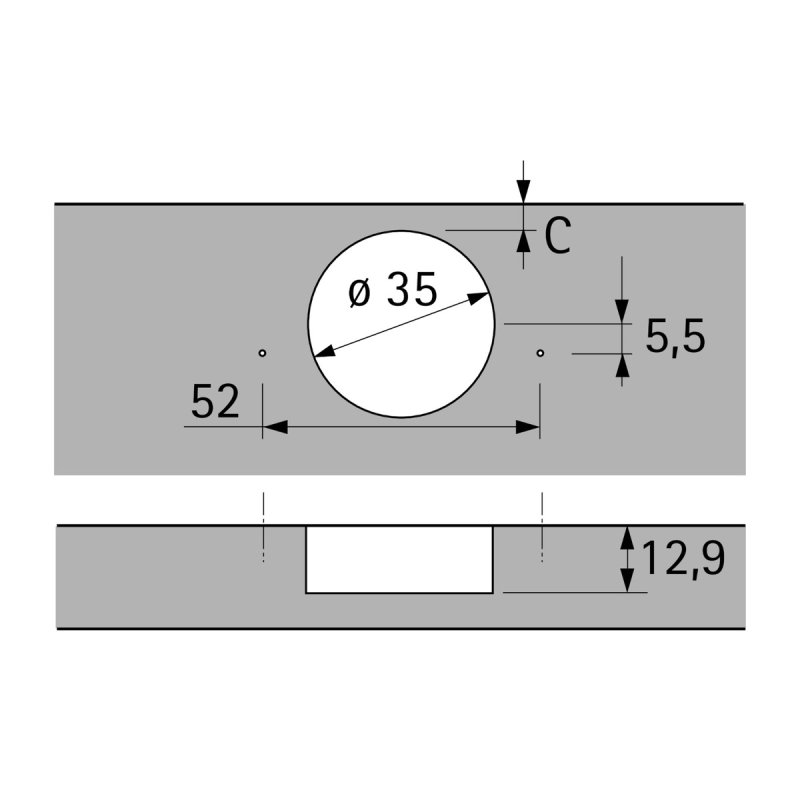

- TH-drilling pattern 52 x 5.5 mm
- Cup depth 12.8 mm
- Installation for screwing on (TH 52)
- Integrated overlay adjustment 2 mm / -2 mm
- Integrated depth adjustment 3 mm / -2 mm
- Height adjustment at mounting plate
- steel nickel plated
Data sheet
- Color
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4023149871504
