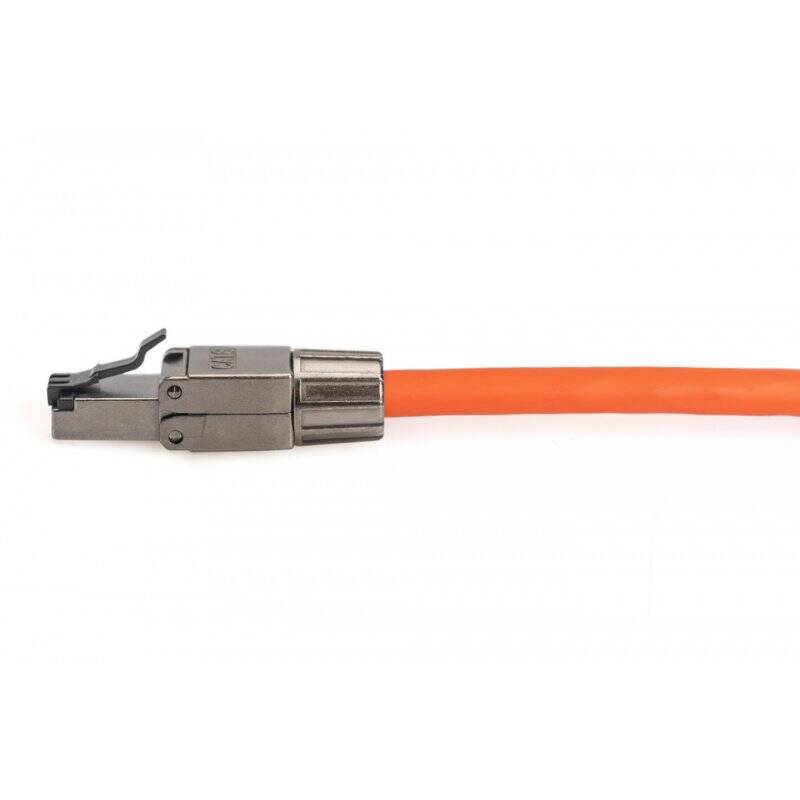

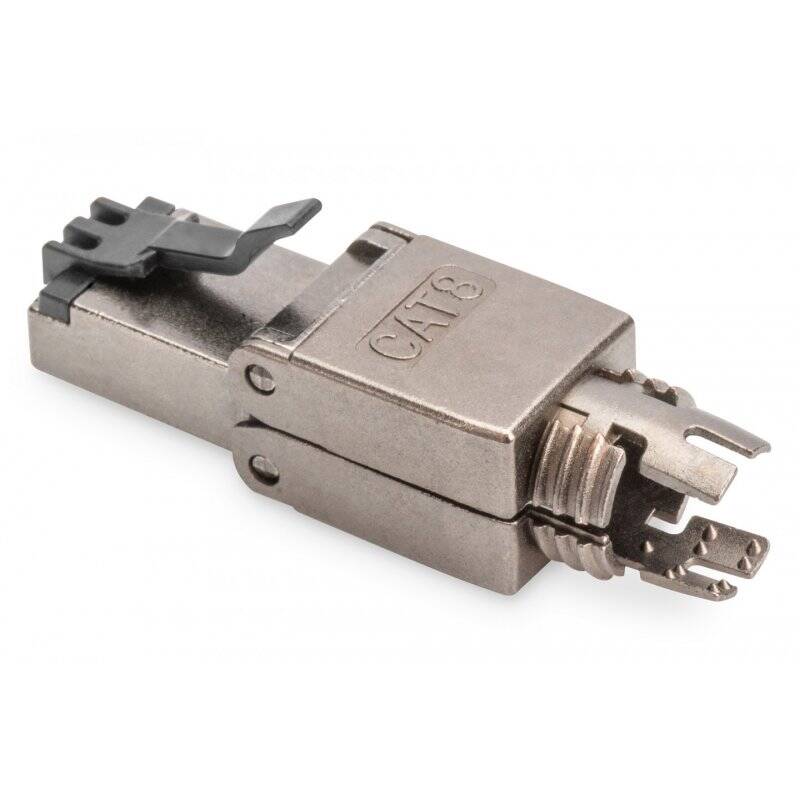

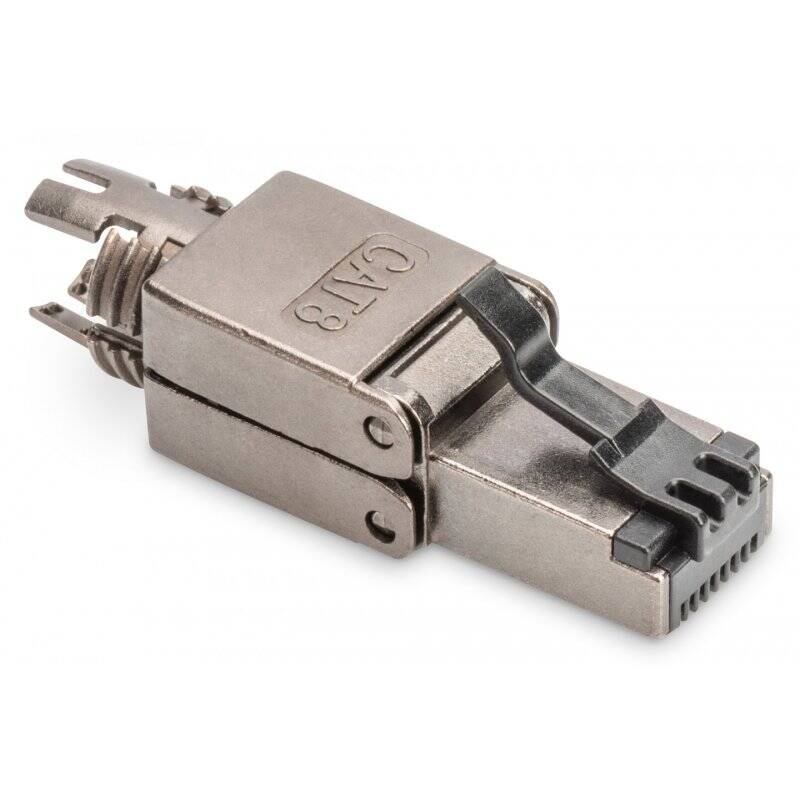

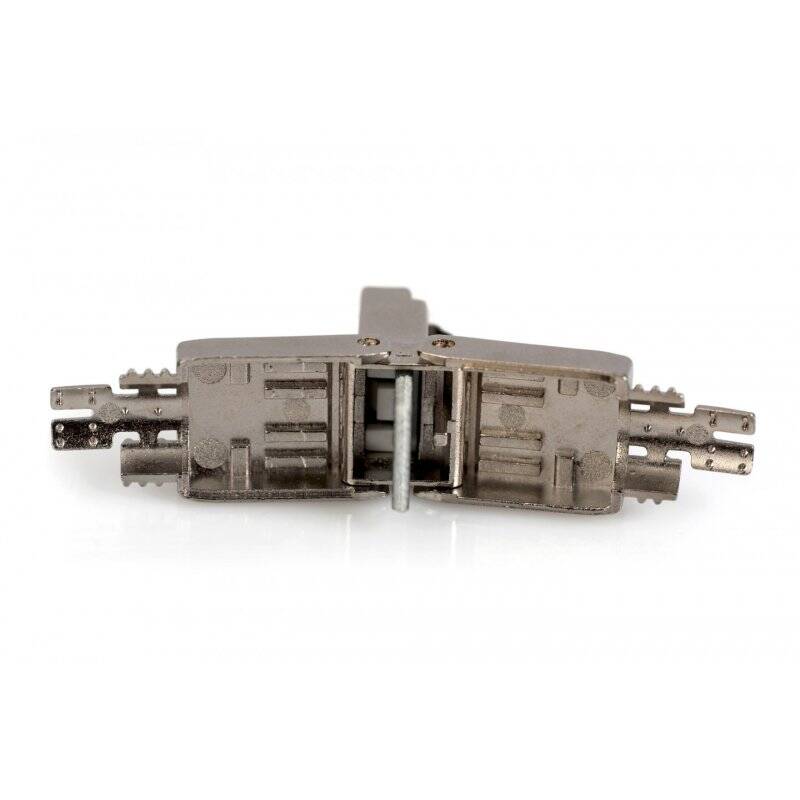

Digitus Digitus CAT 8.I Field Termination Plug, Shielded, Tool-free

Name: Digitus CAT 8.I Field Termination Plug, Shielded, Tool-free
Brand: Digitus
SKU: DN-93837
Price: 9.9 EUR
Availability: InStock

Digitus CAT 8.I Field Termination Plug, Shielded, Tool-free, RJ45, Metallic, Male, Straight, Nickel, Zinc, Cat8.1

Manufacturer reference DN-93837

EAN13 4016032485711

€9.90

Last units

Digitus CAT 8.I Field Termination Plug, Shielded, Tool-free. Connector(s): RJ45, Product colour: Metallic, Connector gender: Male. Weight: 38 g, Width: 15 mm, Depth: 58.3 mm. Package width: 115 mm, Package depth: 60 mm, Package weight: 24 g. Country of origin: China

Transmission properties:
Category 8.I - 25/40 GBase-T, 2000 MHz
ISO/IEC 11801 3rd Edition, EN 50173-1
Suitable for PoE/PoE+/4PPoE (IEEE 802.3af, 3at, 3bt)
General properties:
Suitable for patch chord assembly
RJ45 female, 8P8C

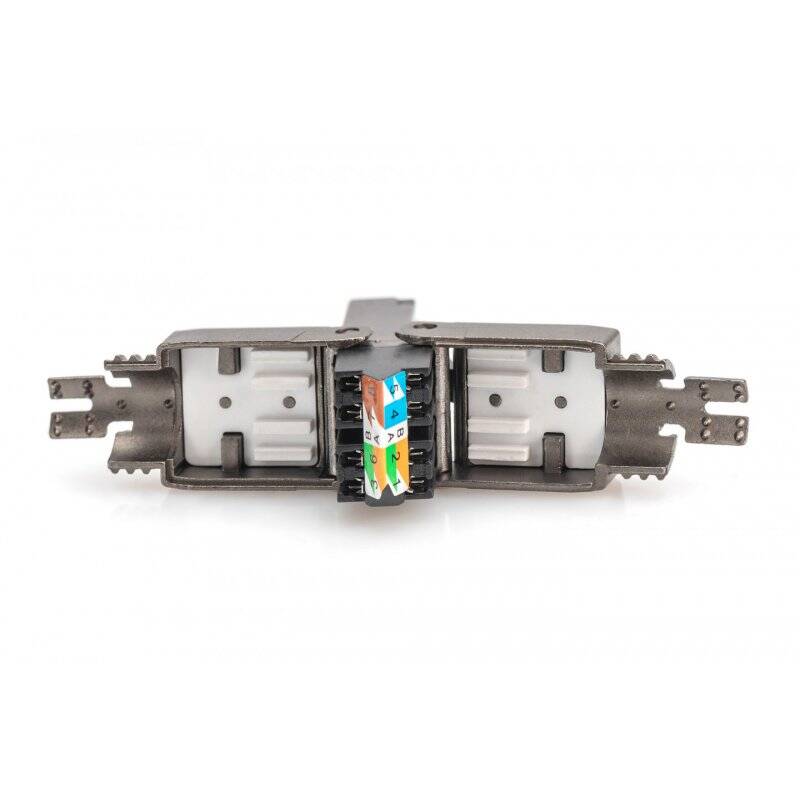

Tool-free cable installation via IDC strips, color coded according to EIA/TIA 568 A & B
Cable fixation by screwable strain relief
Tool-free mounting connection
360° shield coverage
Technical properties:
Housing material: Zinc die-cast, nickel-plated
Contact material: Phosphor bronze
Coating of the contacts: Nickel, gold-plated 0.5 µ
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to +70 °C-20°C bis zu +70°C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles female: > 750 (ISO/IEC 11801, IEC 60603-7-81)
IDC wire size: AWG (26/7 - 22/1), solid and stranded conductor
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Compatible with keystone module DN-93815 and installation cable DK-184X-VH
Measurements: (HxBxT): 19,5 x 15,0 x 58,3 mm
Weight: 38.0 g
