Digitus Digitus OnLine UPS system, 1500 VA / 1500 W

Name: Digitus OnLine UPS system, 1500 VA / 1500 W
Brand: Digitus
SKU: DN-170094
Price: 769.9 EUR
Availability: InStock

Digitus OnLine UPS system, 1500 VA / 1500 W, Double-conversion (Online), 1.5 kVA, 1500 W, 208 V, 240 V, 10 A

Manufacturer reference DN-170094

EAN13 4016032474654

€769.90

In stock

Digitus OnLine UPS system, 1500 VA / 1500 W. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1500 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 4 min. Form factor: Rackmount/Tower, Product colour: Black, Display type: LCD. Width: 440 mm, Depth: 460 mm, Height: 86.5 mm

Online double conversion system (VFI-SS-111)

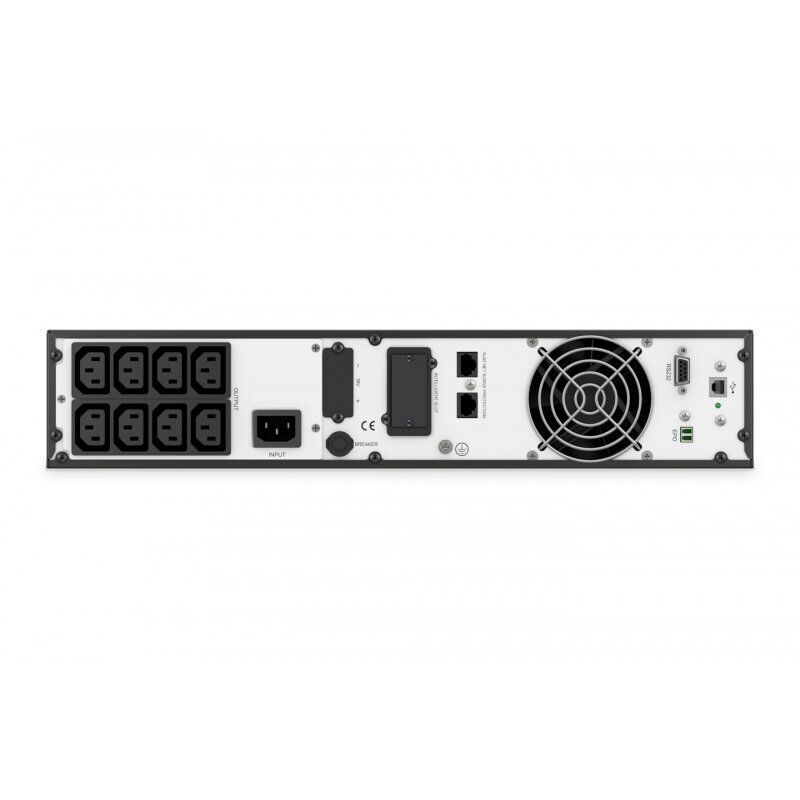

Input: socket IEC60320 C14, 208/220/230/240 Vac
Output: 8 x IEC60320 C13, max. 10A per socket
System power rating: 1500 VA / 1500 W, power factor 1.0
AC-AC (online VFI) efficiency: 93 %, ECO mode efficiency: 98 %.
Replaceable internal battery pack during operation.
Battery: valve-regulated, non-spillable lead-acid battery.
Battery capacity: 3 x 12V x 9.0 Ah
Full load run time: 4 min; half load run time: 12 min
Charge: 4 hours to 90% capacity after fully discharged
Network connection: Optional SNMP/Webcard (part number DN-170100) allows remote monitoring of the UPS.
Local communication ports: USB, RS-232 (serial), SNMP card (optional), relay card (optional)
Emergency power-off (EPO) contact for UPS shutdown in case of emergency
Maximum operating temperature: 0 - 40 °C
Storage temperature: -25 - 55 °C
Relative humidity: 20 - 90% non-condensing
Operating altitude: < 1500 m

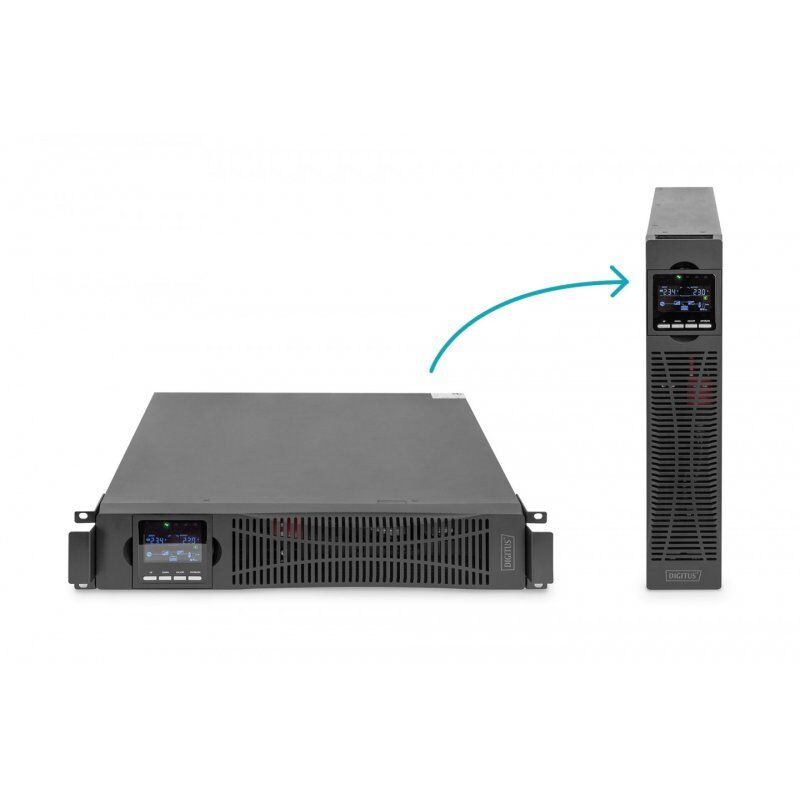

Product dimensions WxDxH (mm): 440 (19") x 460 x 86.5 (2U)
Product weight: 15,5 kg
Shipping dimensions WxDxH (mm): 555 x 595 x 202
Shipping weight: 20,2 kg
Safety standards: IEC/EN62040-1,IEC/EN60950-1
EMC standards: IEC/EN62040-2,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5,IEC61000-4-6,IEC61000-4-8
Approval: CE declaration
Scope of delivery: UPS unit, feet for tower installation, UPS manual, UPS QSG, UPS software license, USB cable, mains cable (1.8m protective contact socket (type 7/4) to IEC60320 socket C14), IEC C13 connection cable, 19" installation brackets
Optional available: 19" UPS mounting kit (profile rails), part number DN-170109
