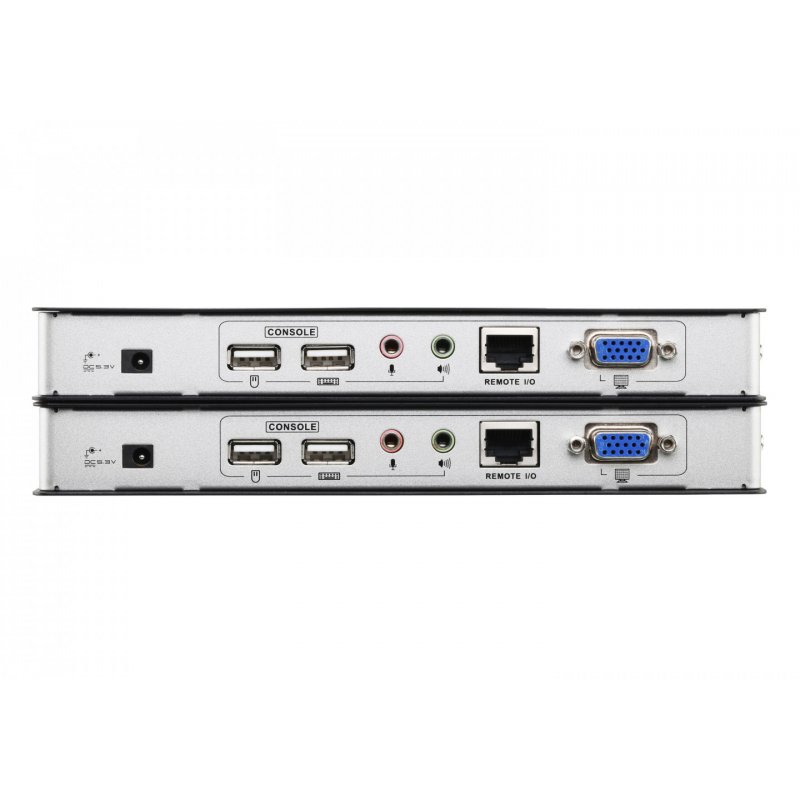

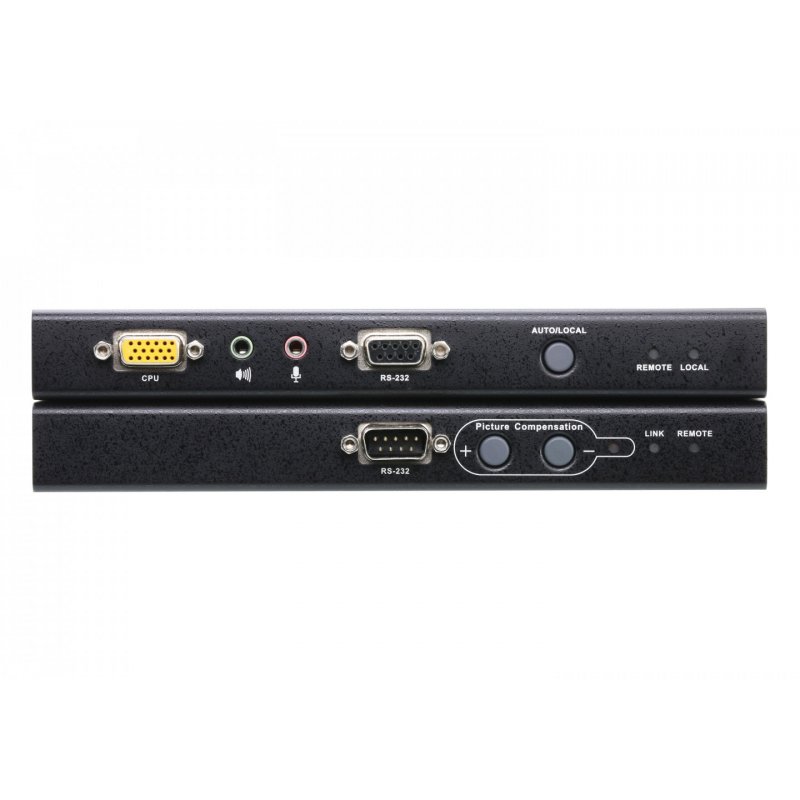

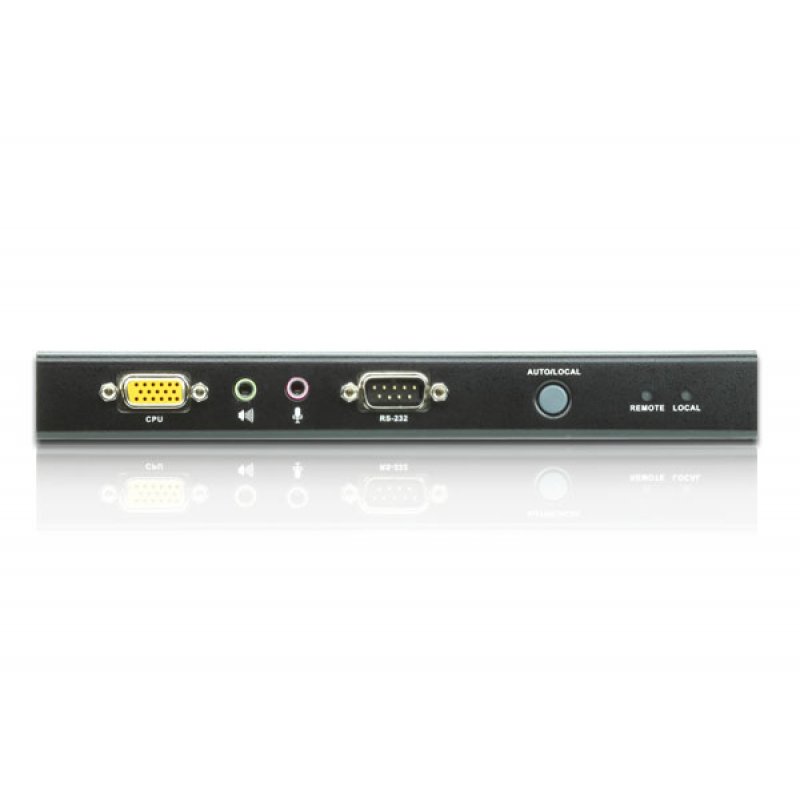

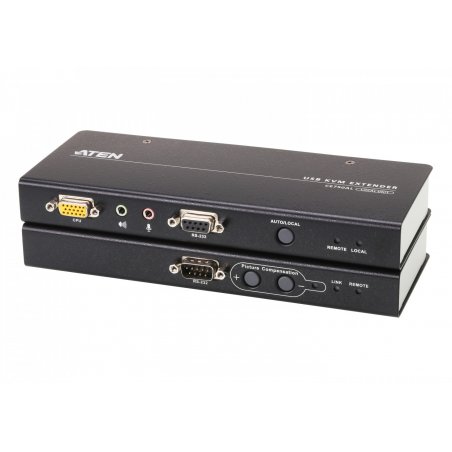

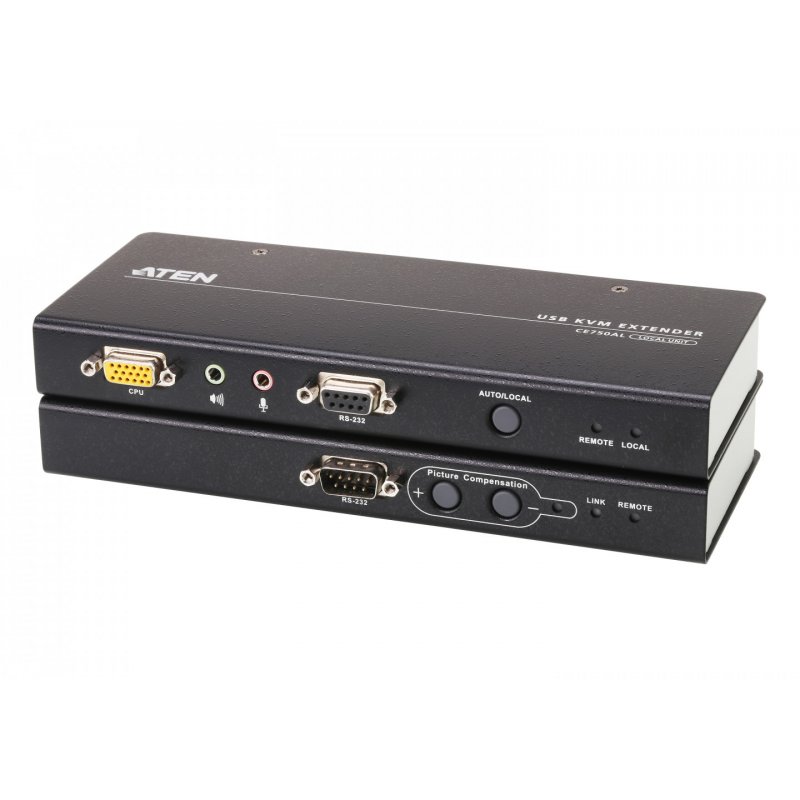

Aten ATEN USB VGA KVM Extender with Audio and RS-232 (200m)

Name: ATEN USB VGA KVM Extender with Audio and RS-232 (200m)
Brand: Aten
SKU: CE750A
Price: 419.9 EUR
Availability: InStock

ATEN USB VGA KVM Extender with Audio and RS-232 (200m), Transmitter & receiver, Wired, 200 m, Cat5, 1920 x 1200 pixels, Push-buttons

Manufacturer reference CE750A

EAN13 4719264643859

€419.90

In stock

ATEN USB VGA KVM Extender with Audio and RS-232 (200m). Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 200 m. Transmitter local video port type: VGA, Transmitter local keyboard/mouse port type: USB. Receiver local video port type: VGA, Receiver local keyboard/mouse port type: USB. Transmitter width: 8.63 cm, Transmitter depth: 20.2 cm, Transmitter height: 2.5 cm

Local and Remote units connect at distances up to 200 meters using Cat 5e cable
Dual console operation – control your system from both the local and remote USB keyboard, monitor, and mouse consoles
Built-in ASIC for greater reliability and compatibility
USB keyboard and USB mouse ports
RS-232 serial ports – allows you to connect to a serial terminal for configuration (Local Unit) or serial devices such as touchscreens and barcode scanners (Remote Unit)
Supports stereo speakers and stereo microphone
USB overcurrent detection and prevention
Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes
Built-in 8KV/15KV ESD protection (contact voltage 8KV, air voltage 15KV) and 2KV surge protection
Adjustable gain control – automatically and manually adjusts signal strength to compensate for distance
High resolution video – up to 1920x1200@60Hz at 30m,1600x1200@60Hz at 150m, 1280x1024@60Hz at 200m
Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), and multisync monitors; local monitor supports DDC, DDC2, DDC2B
Hot pluggable
Rack mountable
Easy to install – no software required, simply connect cables to the devices
Supports wide screen formats*
* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays, connect the monitor to the local video output port or use an ATEN EDID emulator.
