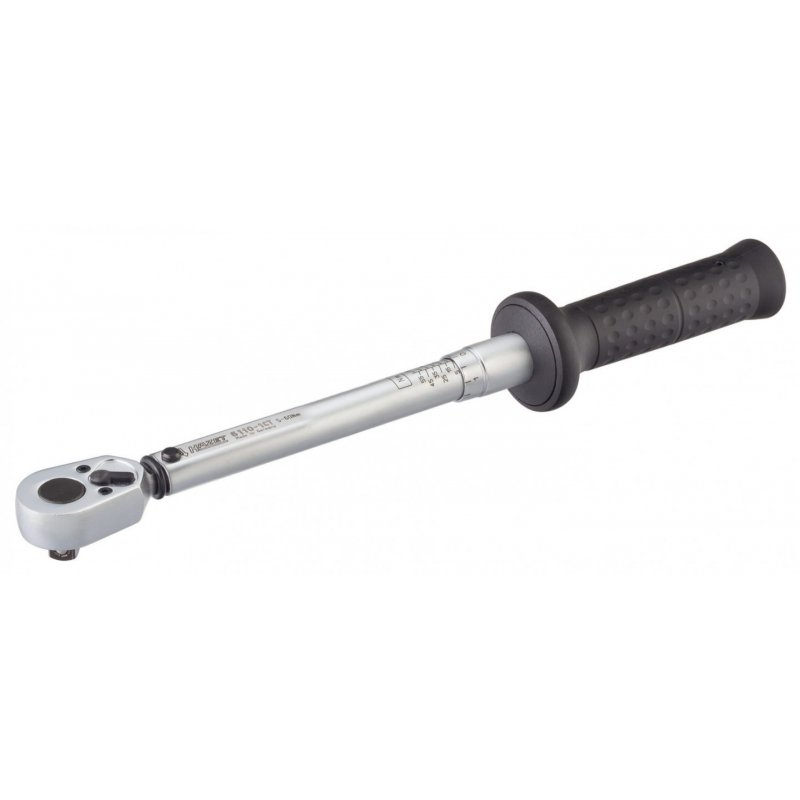

Hazet HAZET 6110-1CT torque wrench Kg-m

Name: HAZET 6110-1CT torque wrench Kg-m
Brand: Hazet
SKU: 6110-1CT
Price: 499.9 EUR
Availability: InStock

HAZET 6110-1CT, Click torque wrench, Kg-m, Mechanical, 1/4", 6.3 mm, 5 - 60 N⋅m

Manufacturer reference 6110-1CT

EAN13 4000896025022

€499.90

Last units

HAZET 6110-1CT. Product type: Click torque wrench, Units of measurement: Kg-m, Type: Mechanical. Length: 335 mm, Weight: 560 g

Release accuracy tolerance ± 2% of scale value (in direction of actuation)
High-precision measuring tools for highest demands
Hard chrome-plated steel tube - slim, but very sturdy and wear-resistant
Secure storage in safe box with display window
Safe torque release:
Palpable (close gap release)
Audible (“click” sound)
Optical (signal transmitter – models up to 320 Nm)
User-friendly reversible ratchet
Service-friendly (do-it-yourself repair kits for ratchets available)
Integrated shift lever
Easy and safe adjustment of the desired torque value by turning the handle
Knob for additionally locking the set value
Ergonomically shaped handle with collar reduces the risk of slipping-off and injury
Accuracy – fine scale graduation
With serial number and calibration certificate
Surface: hard chrome plated
DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
Made in Germany
Output: Square, solid 10 mm (3/8 inch)
Dimensions: 335 mm
Net weight: 0.56 kg
Nm min-max: 5 – 60 Nm
Tolerance: 2 %
Scale Graduation (Nm): 0.5 Nm
Effective torque wrench length min.-max. I1 mm: 264.42 – 247.92 Nm
Actuating force min.-max. kg: 1.9 – 24.7 kg
Number of teeth: 30 (Opening angle 12°)
Head Thickness a: 14.5 mm
Head Width b: 32 mm
