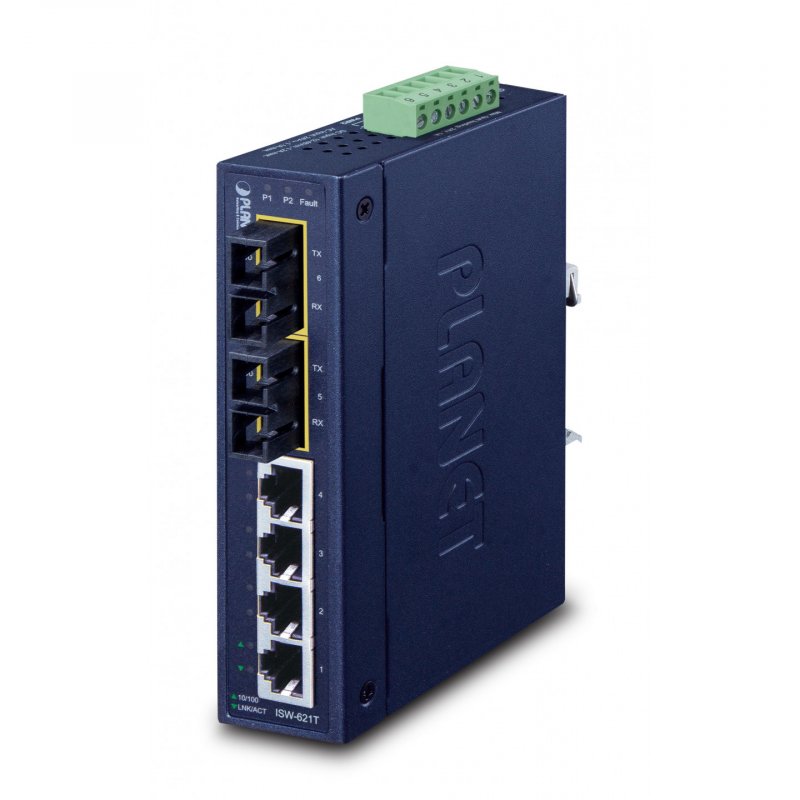

ASSMANN PLANET ISW-621T network switch Unmanaged L2 Fast Ethernet (10/100) Blue

PLANET ISW-621T, Unmanaged, L2, Fast Ethernet (10/100), Full duplex, Wall mountable
ISW-621T
4711213686528
Visa
Mastercard
PayPal

Description

PLANET ISW-621T. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2048 entries, Switching capacity: 1.2 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Wall mountable
  • Physical Port
  • －4-port 10/100BASE-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series
  • －Two 100BASE-FX interfaces on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance
  • －Two 100BASE-FX interfaces on ISW-621TS15 for up to 20km (single-mode fiber 9/125µm) transmission distance
  • Layer 2 Features
  • －Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX Ethernet standard
  • －Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port
  • －High performance Store and Forward architecture, broadcast storm control, and runt/CRC filtering to eliminate erroneous packets to optimize the network bandwidth
  • －Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • －Backplane (Switching Fabric): 1.2Gbps
  • －Integrated address look-up engine, supporting 2K absolute MAC addresses
  • －1Mbit on-chip frame buffer
  • －Automatic address learning and address aging
  • －CSMA/CD Protocol
  • Industrial Case and Installation
  • －IP30 metal case protection
  • －DIN-rail and wall mount designs
  • －12 to 48V DC, redundant power with reverse polarity protection
  • －Connective removable terminal block for master and slave power
  • －Supports EFT 6KV DC protection for power line
  • －Supports 6KV DC Ethernet ESD protection
  • －-40 to 75 degrees C wide operating temperature

Data sheet

Colour
Black
Garantie
2 ans
Marque
Assmann
Modèle
ISW-621T
Weight
1

Specific References

ean13
4711213686528
