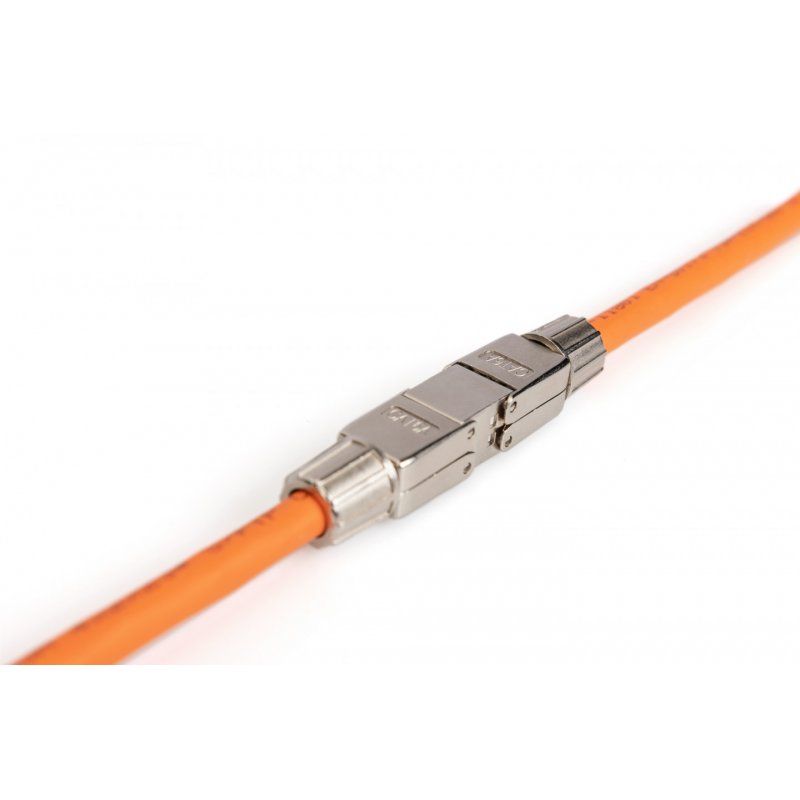

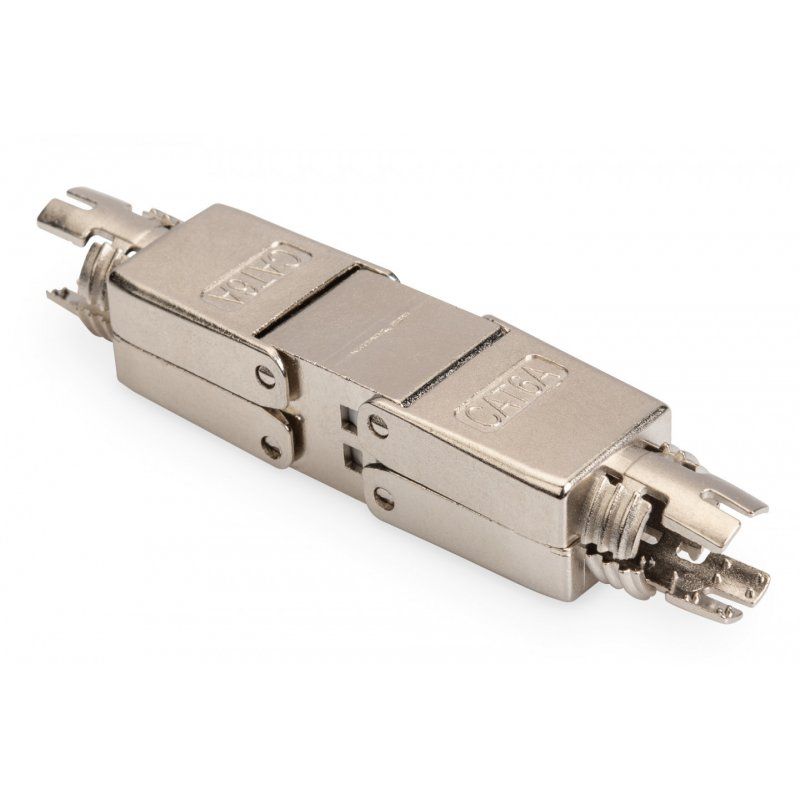

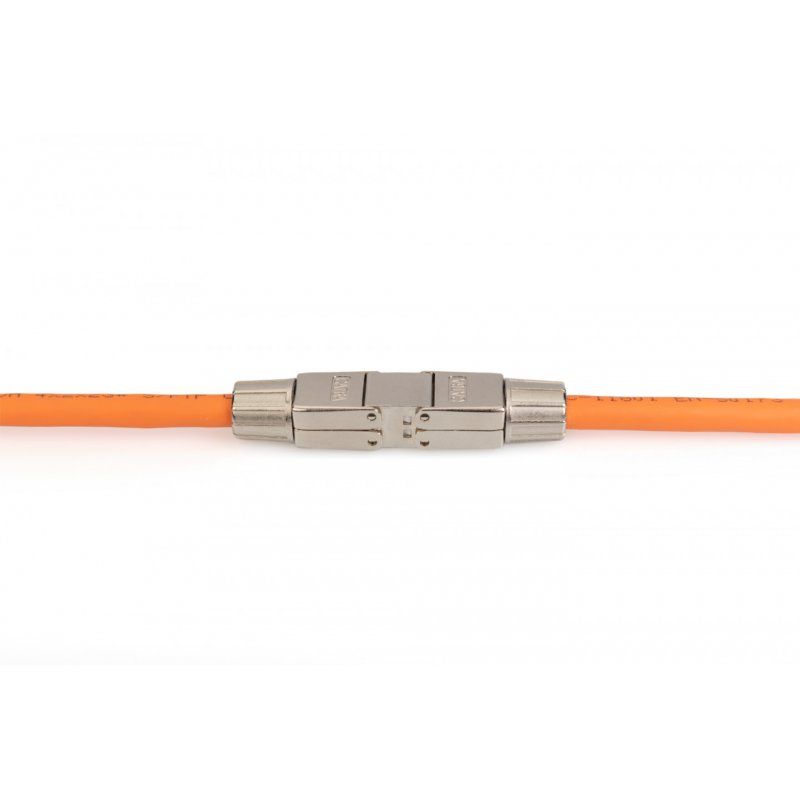

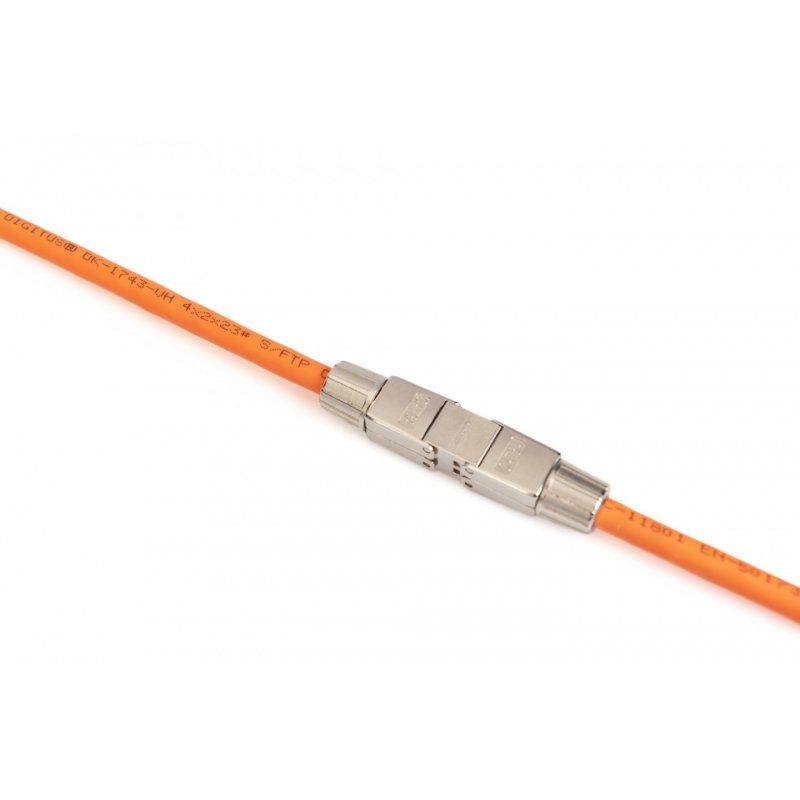

ASSMANN Digitus Cat. 6A CAT Connector (Coupling for field applications), 500 MHz

Name: Digitus Cat. 6A CAT Connector (Coupling for field applications), 500 MHz
Brand: ASSMANN
SKU: DN-93912
Price: 28 EUR
Availability: InStock

Digitus Cat. 6A CAT Connector (Coupling for field applications), 500 MHz, Stainless steel, Nickel, Zinc, Cat6a, 72.8 mm, 11.7 mm, 14.5 mm

Manufacturer reference DN-93912

EAN13 4016032458623

€28.00

In stock

Digitus Cat. 6A CAT Connector (Coupling for field applications), 500 MHz. Product colour: Stainless steel, Material: Nickel, Zinc, Cable standard: Cat6a. Width: 72.8 mm, Depth: 11.7 mm, Height: 14.5 mm. Quantity per pack: 1 pc(s). Country of origin: China

Transmission properties:
Category 6A, 10G Base-T, 500 MHz
ISO/IEC 11801 3rd ed.; EN50173-1; IEC 60603-7-51
Suitable for PoE/PoE+/4PPoE (IEEE 802.3af; 3at; 3bt)
General specifications:
Cable installation via insulation-displacement connector, color coded in accordance with EIA/TIA 568 A & B
Cable grip and cable fixation using screw cable grip
Tool-free mounting connection
360° shield contact
Technical specifications:
Case material: Zinc die-cast – nickel-plated
Contact material: Phosphor bronze
Contact coating: Nickel, gold-plated 0.5 µ
Physical specifications:
Insertion force: Max. 30N (as per IEC 60603-7-5)
Holding force: 7.7 kg between jack and plug
Operating temperature range: -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
Copper cable diameter: AWG (26/7 – 22/1), stranded and solid wire
Tested with AWG 22/1 solid installation cable
(DIGITUS® DK-174X-A-VH-X; AWG 22/1 cat. 7A installation cable)
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
