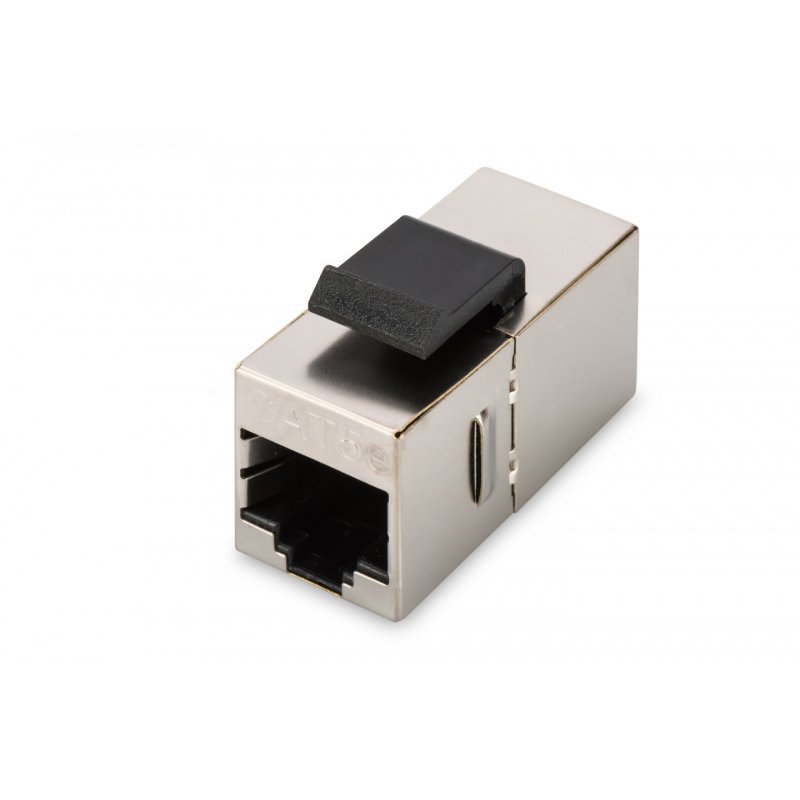

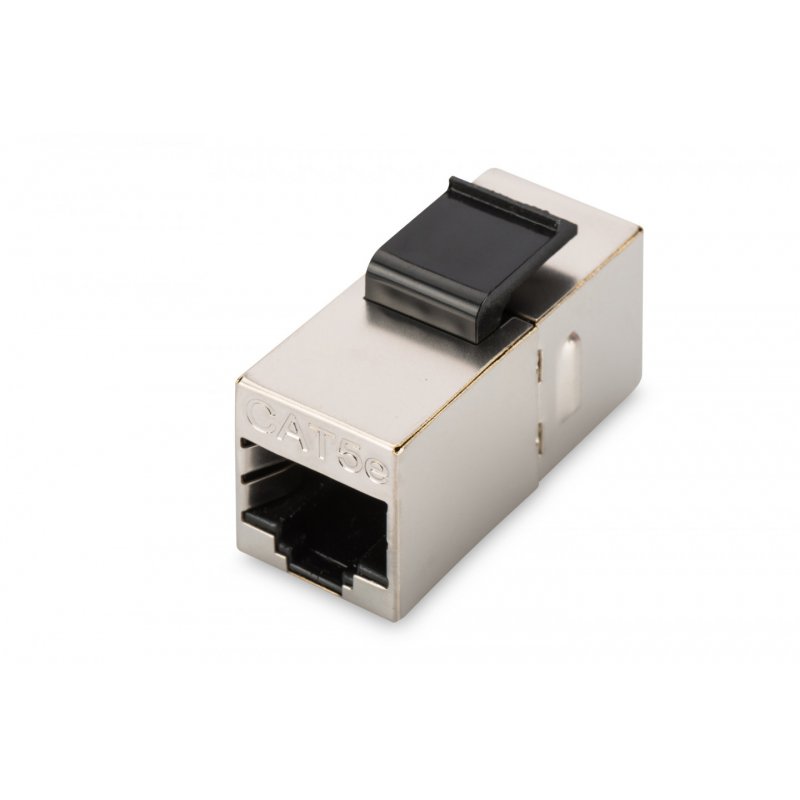

ASSMANN Digitus CAT 5e Class E Modular Coupler, shielded
Digitus CAT 5e Class E Modular Coupler, shielded, RJ-45 CAT 5e F, ABS synthetics, Cat6, 20 x 35 x 20 mm, 20 mm, 35 mm
DN-93513
4016032245179
€7.00
VAT included
Description
Digitus CAT 5e Class E Modular Coupler, shielded. Connector(s): RJ-45 CAT 5e F, Material: ABS synthetics, Cable standard: Cat6. Dimensions (WxDxH): 20 x 35 x 20 mm, Width: 20 mm, Depth: 35 mm. Quantity per pack: 1 pc(s). Package length: 2 cm, Package width: 60 mm, Package depth: 20 mm. Country of origin: China
- Transmission properties: Category 5e
- Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- 2x RJ45 Female, 8P8C
- 360° shield coverage
- Connection 1:1
- Technical properties:
- Housing material: Zinc die-cast, nickel-plated
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
- RJ45 shielding: Tinned bronze
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 – 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-93513
- Weight
- 1
Specific References
- EAN13
- 4016032245179
