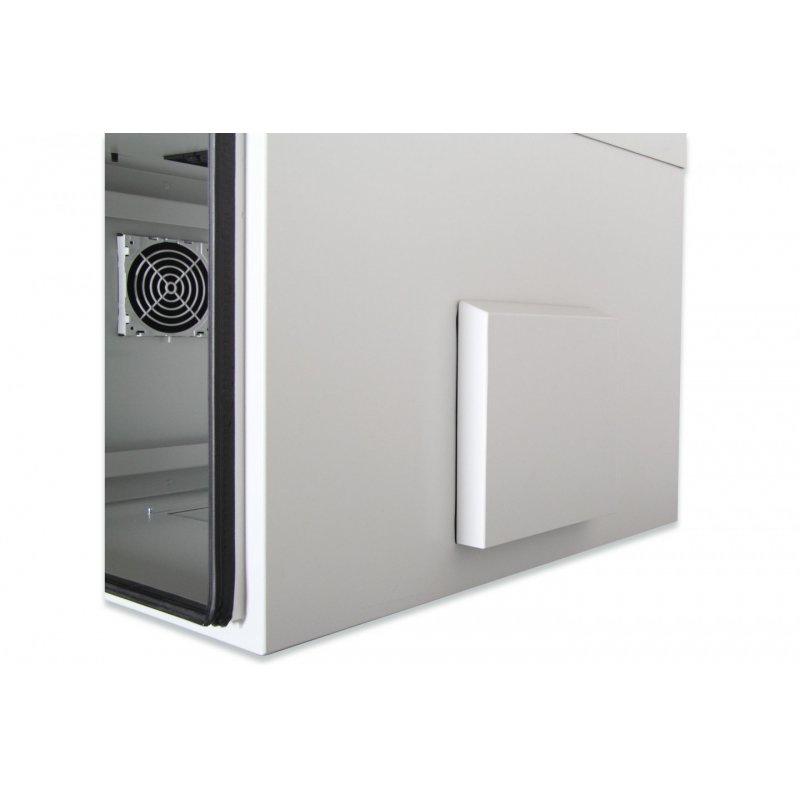

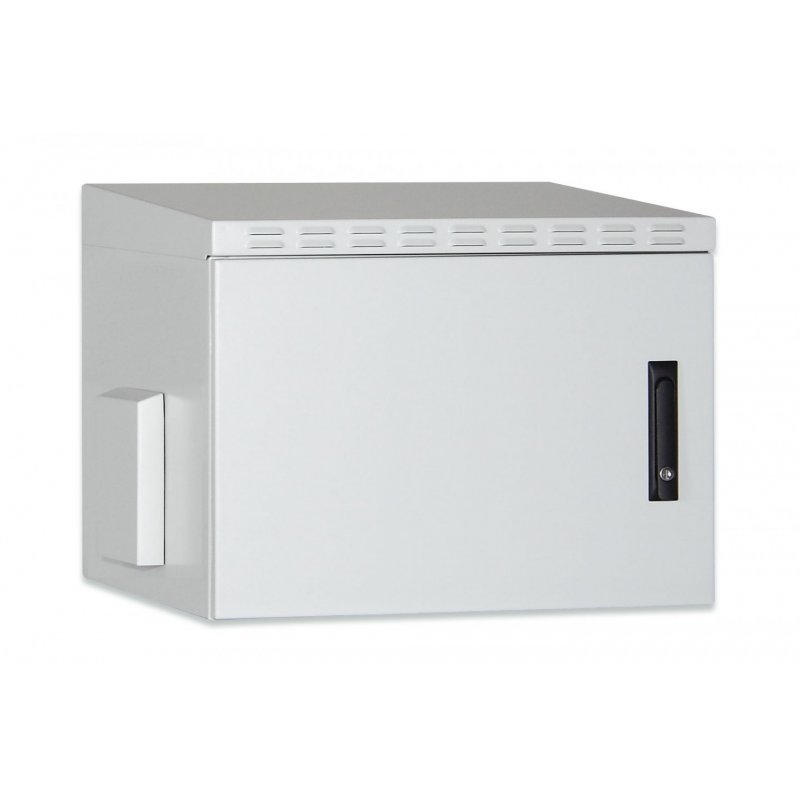

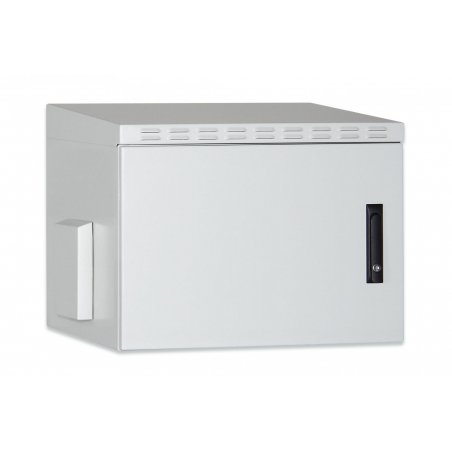

ASSMANN Digitus Wall Mounting Cabinets IP55 - Outdoor - 600x450 mm (WxD)
Digitus Wall Mounting Cabinets IP55 - Outdoor - 600x450 mm (WxD), Wall mounted rack, 100 kg, Grey
DN-1909U-I-OD
4016032360988
€496.06
VAT included
Description
Digitus Wall Mounting Cabinets IP55 - Outdoor - 600x450 mm (WxD). Type: Wall mounted rack, Maximum weight capacity: 100 kg, International Protection (IP) code: IP55, Product colour: Grey
- Safety class rating IP 55
- Lockable steel front door with pivot lever
- 140° door opening angle
- 3-point-locking-mechanism on the front door

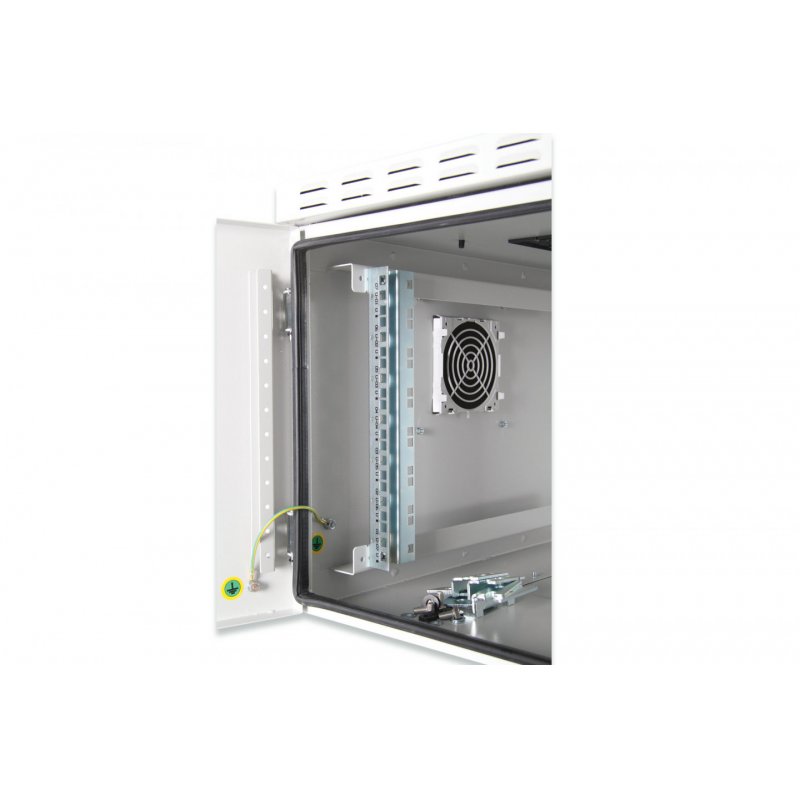

- Front door with earthing lead and two welded, strengthening bars in U-shape as well as gasketting system
- 483 mm (19“) profile rails mounted on the front side inside of the cabinet, galvanized
- 483 mm (19“) profile rails are adjustable in depth and with height unit marking
- 1.5 mm strong sheet steel with a high loading capacity, powder coated
- Single welded housing for more strength

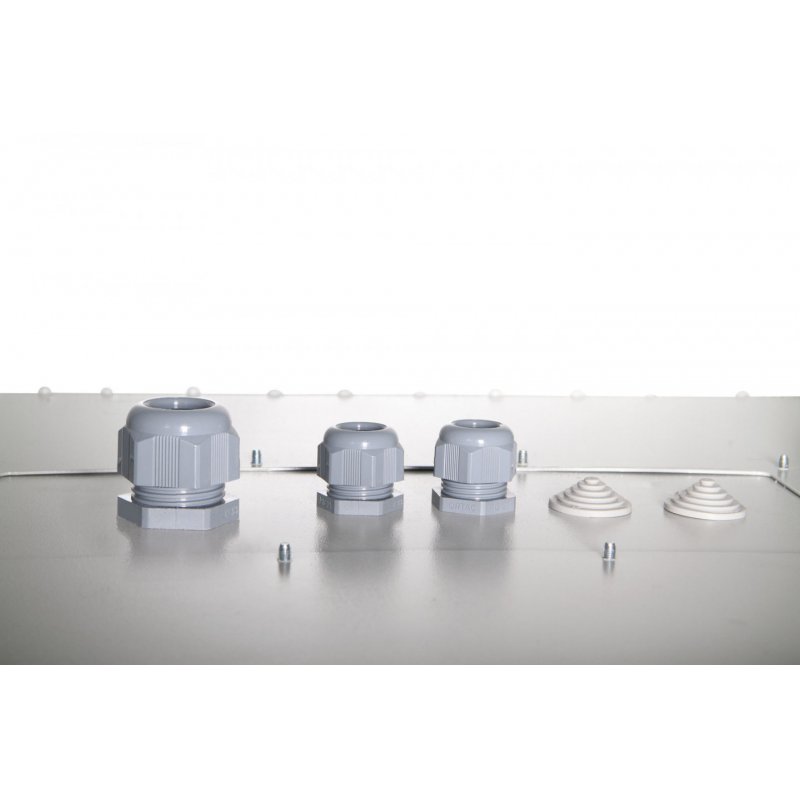

- Cable entries in base: 2x M32, 1x M63, 2x PVC blind cap (with diameter of 28 mm)
- Roof canopy offers protection for suitable fan units and takes care of deaeration and hot air
- Integrated air ventilation inlets ensure the entry of fresh air
- incl. 4 pcs. mounting brackets, 3 mm strong, as well as suitable screws and washers, for wall mounting
- Equipment mounting depth min.-max.: 142-342 mm
- Distance of installation holes to wall mount (H x W) in mm: 378 x 550
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Assmann
- Modèle
- DN-1909U-I-OD
- Weight
- 1
Specific References
- ean13
- 4016032360988
