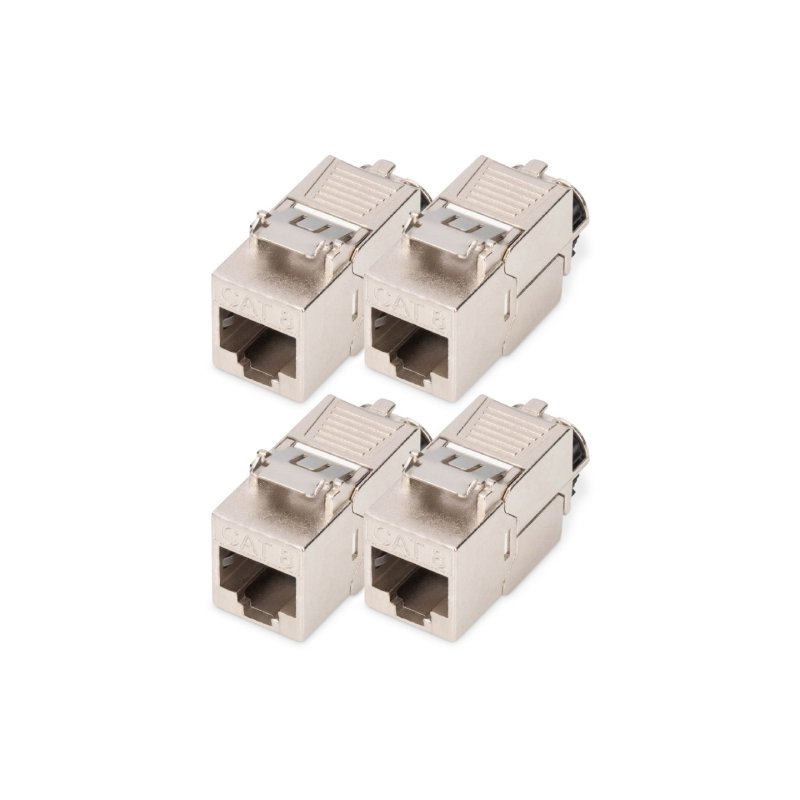

Digitus Digitus CAT 8.1 Keystone Module, Shielded, Tool-free Connection - 4 pcs

Name: Digitus CAT 8.1 Keystone Module, Shielded, Tool-free Connection - 4 pcs
Brand: Digitus
SKU: 4016032495192
Price: 39.9 EUR
Availability: InStock

Digitus CAT 8.1 Keystone Module, Shielded, Tool-free Connection - 4 pcs, Flat, Silver, RJ-45, LSA, Female, Female

Manufacturer reference 4016032495192

EAN13 4016032495192

€39.90

Last units

Digitus CAT 8.1 Keystone Module, Shielded, Tool-free Connection - 4 pcs. Construction type: Flat, Product colour: Silver, Connector 1: RJ-45. Quantity per pack: 4 pc(s)

Transmission properties: Category 8, Class I
Area of application: Up to 2000 MHz, 25/40GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at, 8023.bt (PoE, PoE , 4PPoE)
General properties:
Suitable for patch panels and mounting outlets
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Tool-free mounting connection
360°-Schirmkontaktierung
Technical properties:
Housing material: Zinc die-cast, nickel-plated
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
IDC termination clamp: Krone LSA , UL 94V-2, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -10° C to 60 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 gem. ISO/IEC 11801, IEC 60603-7-81
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
4 pieces
