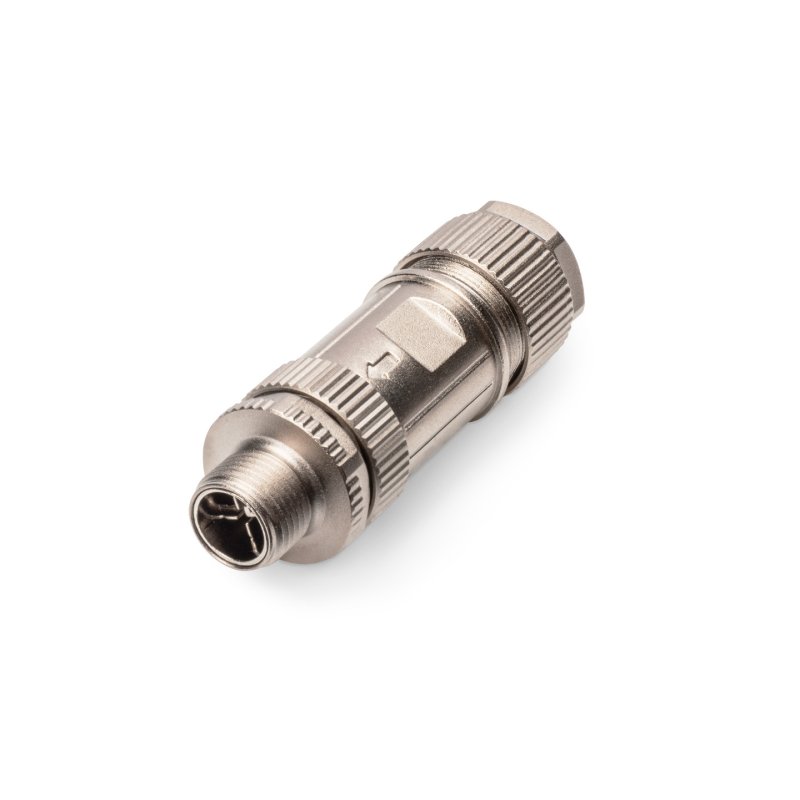

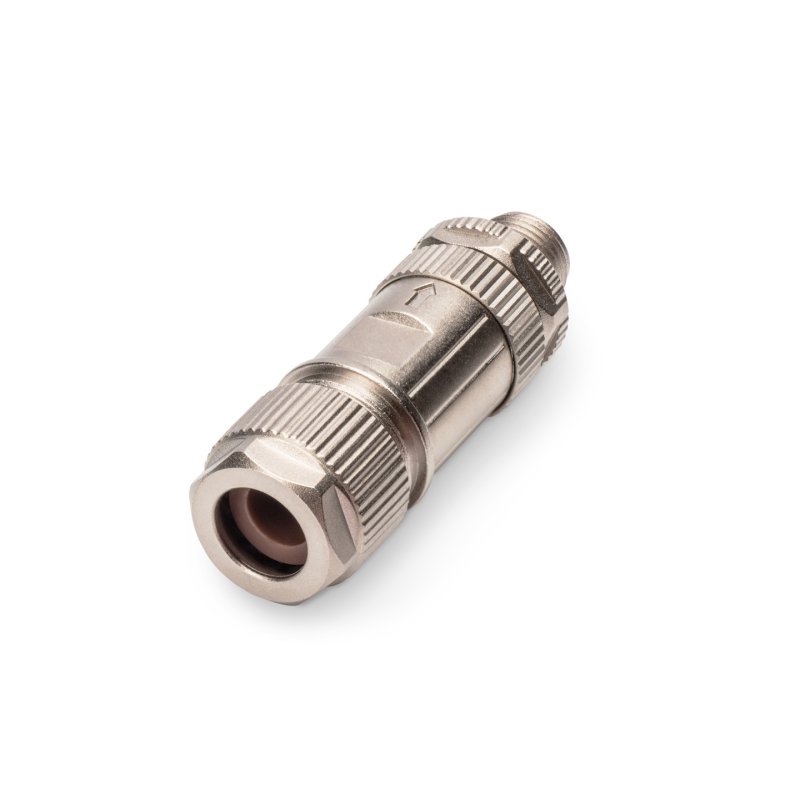

Digitus Digitus CAT 6A, field assembly, straight, M12 plug, X-coded, IP67

Digitus CAT 6A, field assembly, straight, M12 plug, X-coded, IP67, Flat, Silver, Male, 10GBase-T, 26/1, Cat6a
4016032485674
4016032485674
€29.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus CAT 6A, field assembly, straight, M12 plug, X-coded, IP67. Construction type: Flat, Product colour: Silver, Connector 1 gender: Male. Package volume: 72 cm³, Package width: 60 mm, Package depth: 15 mm. Quantity per pack: 1 pc(s). Country of origin: China
  • M12 CAT 6A connector X-coded, shielded
  • Electromagnetic measurement according to MICE: E2
  • 8-wire cable connection, for AWG 22
  • Connection of AWG 26/1 - 22/1, AWG 26/7 - 22/7 possible
  • 10GBit Ethernet (IEEE 802.3an)
  • PoE (IEEE 802.3af), PoE plus (IEEE 802.3at), UPoE and HDBaseT
  • Basis IEC PAS 61076-2-109
  • Conductor diameter solid copper wire 0.4 - 0.64 mm
  • Conductor diameter stranded copper wire 0.48 - 0.76 mm
  • Conductor diameter up to 1.6 mm
  • cable sheath from 6.0 to 9.7 mm
  • Industrial zinc die-cast housing
  • simplest assembly - to be connected without special tools
  • Electrical characteristics:
  • Current carrying capacity: 0.5 A
  • Rated voltage: 50 V AC / 60 V DC
  • rated voltage: 50 V AC / 60 V DC
  • Insulation resistance:
  • Dielectric strength conductor-conductor (primarily) [V DC]: 500 V DC
  • Mechanical data:
  • Mounting method: screwable
  • Insertion and withdrawal force: max. 30 N
  • Life - Number of mating cycles: min. 100

Data sheet

Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

EAN13
4016032485674
