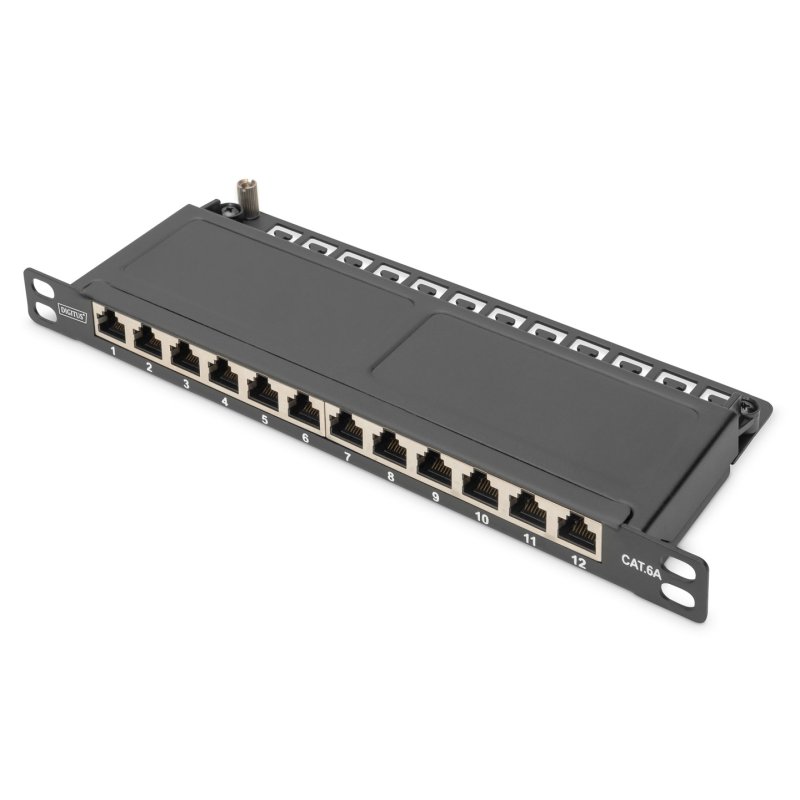

Digitus Digitus CAT 6A, Class EA Patch Panel, shielded, 12-port, 0.5U, 10", black

Name: Digitus CAT 6A, Class EA Patch Panel, shielded, 12-port, 0.5U, 10", black
Brand: Digitus
SKU: 4016032473176
Price: 53 EUR
Availability: InStock

Digitus CAT 6A, Class EA Patch Panel, shielded, 12-port, 0.5U, 10", black, IEEE 802.3af, IEEE 802.3at, 10Base-T, Cat6a, 26/22, Black, Steel

Manufacturer reference 4016032473176

EAN13 4016032473176

€53.00

In stock

Digitus CAT 6A, Class EA Patch Panel, shielded, 12-port, 0.5U, 10", black. Networking standards: IEEE 802.3af, IEEE 802.3at, Cabling technology: 10Base-T, Cable types supported: Cat6a. Product colour: Black, Material: Steel, Mounting: Rack mounting. Package width: 60 mm, Package depth: 260 mm, Package weight: 890 g. Country of origin: China

Transmission properties: Category 6A, Class EA
Area of application: Up to 500 MHz, 10GBase-T
Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE
Suitable for 254 mm (10") cabinet mounting
RJ45 female, 12P12C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Central ground connection
360° shield coverage
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: LSA , UL 94V-0, zinc plated phosphor bronze
Conductor plate: FR4, UL 94V-0
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
Ground wire: Not included
