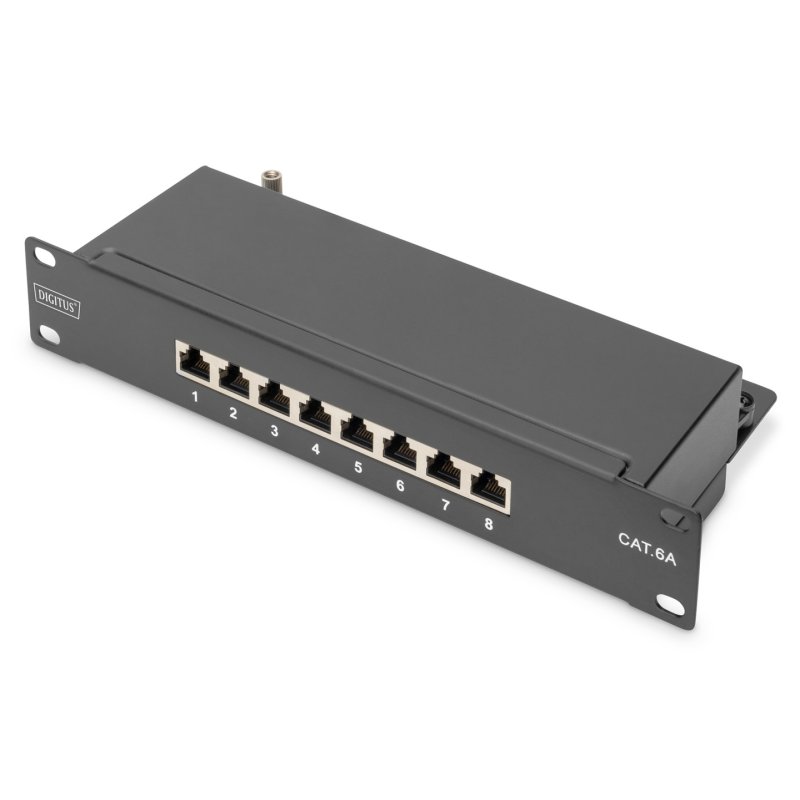

Digitus Digitus CAT 6A, class E patch panel, shielded, black

Name: Digitus CAT 6A, class E patch panel, shielded, black
Brand: Digitus
SKU: 4016032473145
Price: 35 EUR
Availability: InStock

Digitus CAT 6A, class E patch panel, shielded, black, 10GBase-T, 10 Gigabit Ethernet, 10000 Mbit/s, RJ-45, Cat6a, 22/26

Manufacturer reference 4016032473145

EAN13 4016032473145

€35.00

Last units

Digitus CAT 6A, class E patch panel, shielded, black. Cabling technology: 10GBase-T, Ethernet interface type: 10 Gigabit Ethernet, Maximum data transfer rate: 10000 Mbit/s. Product colour: Black, Mounting: Rack mounting, Rack capacity: 1U. Certification: UL. Weight: 820 g. Package width: 60 mm, Package depth: 260 mm, Package height: 120 mm

Transmission characteristics: Category 6A, class EA
Application areas: Up to 500 MHz, 10GBase-T
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 254 mm (10") cabinet mounting
RJ45 sockets, 8P8C
Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
Cable fixing by means of screw fastening
Central earthing connection
360° shield contacting
Mechanical properties:
Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 socket material: ABS UL 94V-0
Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
RJ-45 shielding: Nickel-plated bronze
LSA cutting terminal: LSA , UL 94V-2, galvanized phosphor bronze
Earthing wire: Not included in the scope of delivery
Printed circuit board: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Tensile load: 7.7 kg between socket and plug
Operating temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
Core receptacle: 22-26 AWG solid and stranded conductors
Insulation resistance: > 500 Mohm
Contact resistance: < 20 milliOhms
Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
