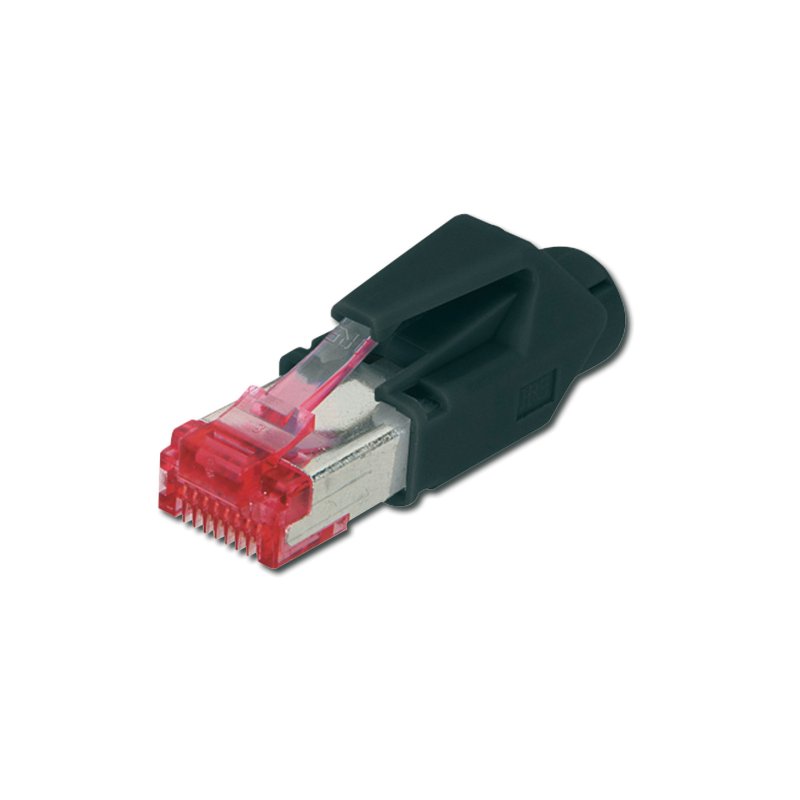

Digitus Digitus Hirose Modular Plug, CAT 6 TM 21
Digitus Hirose Modular Plug, CAT 6 TM 21, RJ-45, Black, Metallic, Red, Cat6, Gold, Nickel-plated phosphor bronze, Germany
4016032132943
4016032132943
€7.00
VAT included
Description
Digitus Hirose Modular Plug, CAT 6 TM 21. Connector(s): RJ-45, Product colour: Black, Metallic, Red, Cable standard: Cat6. Country of origin: Germany
- Easy assembly by modular crimping tool DN-94008
- Layout performance: CAT 6, 1GBase-T
- Area of application: Patch cable assembly
- General properties:
- Fully shielded with strain relief for installation cables
- Incl. comb
- Technical properties:
- Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-5)
- Material connector body: Polycarbonat, clear
- Connector contact: Phosphor bronze, brass 0.8 μ gold-plated
- Material shielding housing: Brass 0.5 mm, 2 μ nickel-plated
- Flammability: UL 94V-2
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Diameter Cu-Conductor: AWG (27/7 ... 24/7)
- Operating temperature: -20 °C to 60 °C
- Current carrying capacity: 1A at 50 °C
- Diameter outer jacket: 5,5 ... 6,2mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Digitus
Specific References
- EAN13
- 4016032132943
