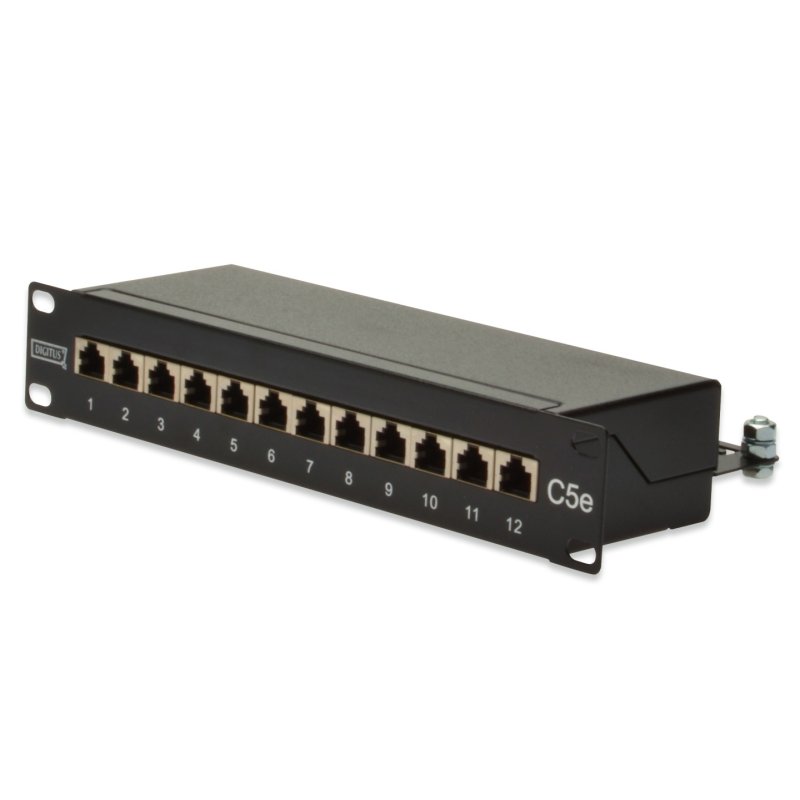

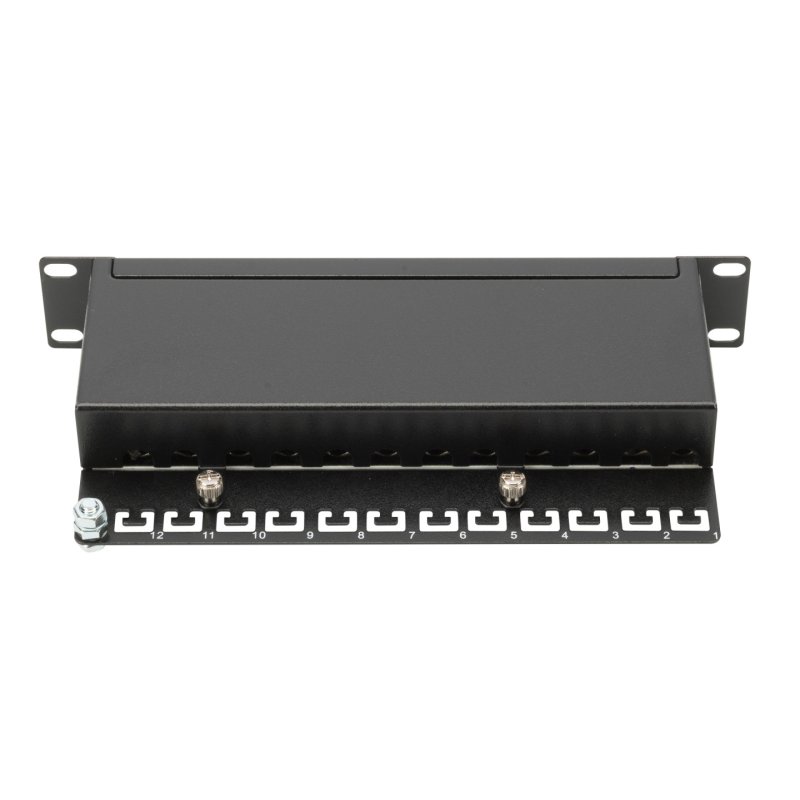

Digitus Digitus CAT 5e, Class D Patch Panel, shielded, black

Name: Digitus CAT 5e, Class D Patch Panel, shielded, black
Brand: Digitus
SKU: 4016032241508
Price: 45 EUR
Availability: InStock

Digitus CAT 5e, Class D Patch Panel, shielded, black, RJ-45, Cat5e, Black, Rack mounting, 1U, EIA/TIA 568 ISO/IEC DIS 11801

Manufacturer reference 4016032241508

EAN13 4016032241508

€45.00

In stock

Digitus CAT 5e, Class D Patch Panel, shielded, black. Connector(s): RJ-45, Cable types supported: Cat5e. Product colour: Black, Mounting: Rack mounting, Rack capacity: 1U. Certification: EIA/TIA 568 ISO/IEC DIS 11801. Package width: 285 mm, Package depth: 55 mm, Package weight: 993 g. Country of origin: China

Area of application: Up to 100 MHz, 10/100Base-T, 1GBase-T
Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
General properties:
Suitable for 254 mm (10") cabinet mounting
RJ45 female, 8P8C
Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
Cable fixing with smart cable ties
Central ground connection
360° shield coverage
Mechanical properties:
Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
RJ45 female material: ABS UL 94V-0
RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
RJ45 shielding: Tinned bronze
LSA termination clamp: Krone LSA , UL 94V-2, zinc plated phosphor bronze
Ground wire: Not included
Conductor plate: FR4, UL 94V-0
Physical properties:
Insertion force: 30N max. (IEC 60603-7-5)
Retention strength: 7.7 kg between jack and plug
Operation temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
IDC wire size: 22 – 26 AWG solid and stranded conductor
Insulation resistance: > 500 MOhm
Contact resistance: < 20 MilliOhm
Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
