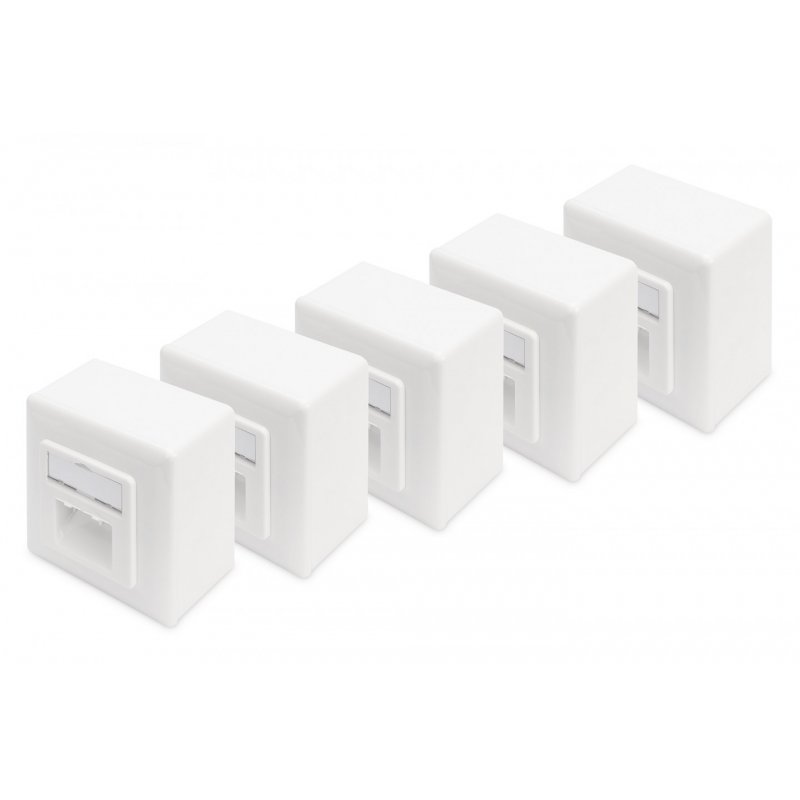

Digitus Digitus CAT 6, Class E, modular wall outlet, shielded

Digitus CAT 6, Class E, modular wall outlet, shielded, RJ-45, White, China
DN-9006B5-N
4016032175742
€34.90
VAT included

Visa
Mastercard
PayPal
Digitus CAT 6, Class E, modular wall outlet, shielded. Socket type: RJ-45. Product colour: White. Country of origin: China
  • Transmission property: Category 6
  • Area of application: Up to 250 MHz, 1GBase-T
  • Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for installation in trunking, surface and flush mount
  • RJ45 female, 8P8C
  • Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
  • Integrated strain relief for installation cables
  • Complete shielding of RJ45 sockets and LSA strips due to zinc die-cast housing
  • Strain relief 40°-angled female for patch cord
  • Central plate: 50 x 50 mm
  • Frame: 80 x 80 mm
  • Central plate with integrated dust covers
  • Design compatible to common switch ranges
  • Technical properties:
  • Housing material: Die-cast metal
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • LSA termination clamp: Krone LSA , UL 94V-2, zinc plated phosphor bronze
  • Conductor plate: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to 70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Not compatible with R&M freenet patch cords
  • Colour: White RAL9003
Colour
Black
Garantie
2 ans
Marque
Digitus

Specific References

ean13
4016032175742
