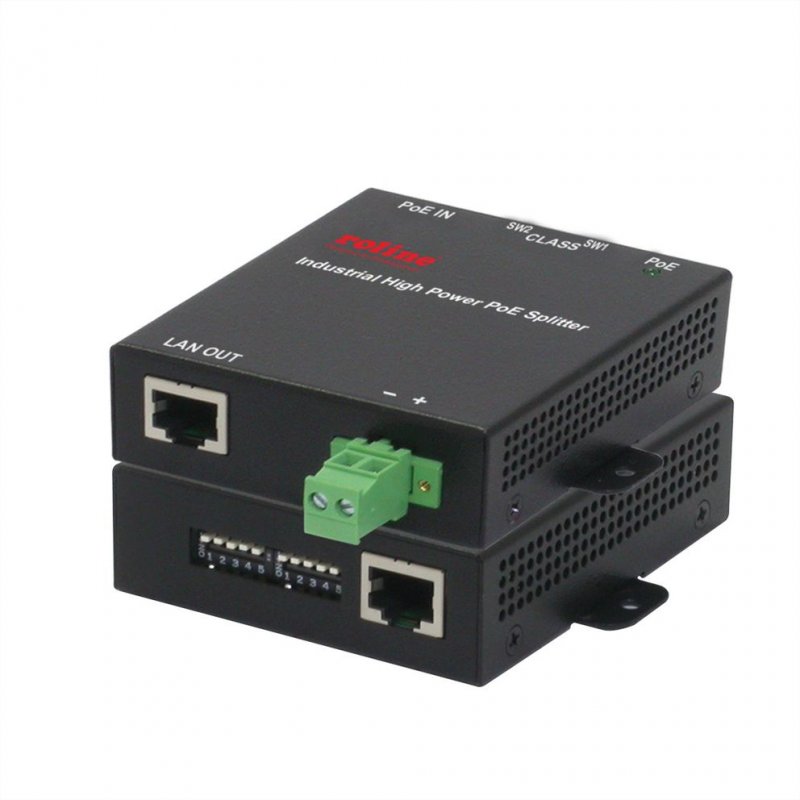

ROLINE ROLINE 21.13.1173 PoE adapter Gigabit Ethernet
ROLINE 21.13.1173, Gigabit Ethernet, 10,100,1000 Mbit/s, IEEE 802.3af, IEEE 802.3at, Cat5, Cat6, Black, Over current, Overheating, Short circuit, Under voltage
21131173
7630049612457
€352.90
VAT included
Description
ROLINE 21.13.1173. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3af, IEEE 802.3at. Product colour: Black, Power protection features: Over current, Overheating, Short circuit, Under voltage. Total Power over Ethernet (PoE) budget: 128 W. Width: 73 mm, Depth: 85 mm, Height: 24 mm. Number of products included: 1 pc(s)
- Enables PoE incapable network device with PoE capability
- IEEE 802.3at PoE and 802.3af PoE compliance
- Supports proprietary high power PoE up to 128W
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T
- Supports Alternative A or Alternative B PoE input over Cat.5/6
- Provides power class selection DIP for demanding power from PSE - allows user to select one from nine different classes for demanding power from a remote PoE switched port or mid-span injector
- Supports Type 1 PSE classification and Type 2 PSE 2-event classification
- Short-circuit protection, low voltage lock out, inrush current limit and thermal protection
- Flexible mounting support, light weight and compact
- Metal housing
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- ROLINE
Specific References
- EAN13
- 7630049612457
