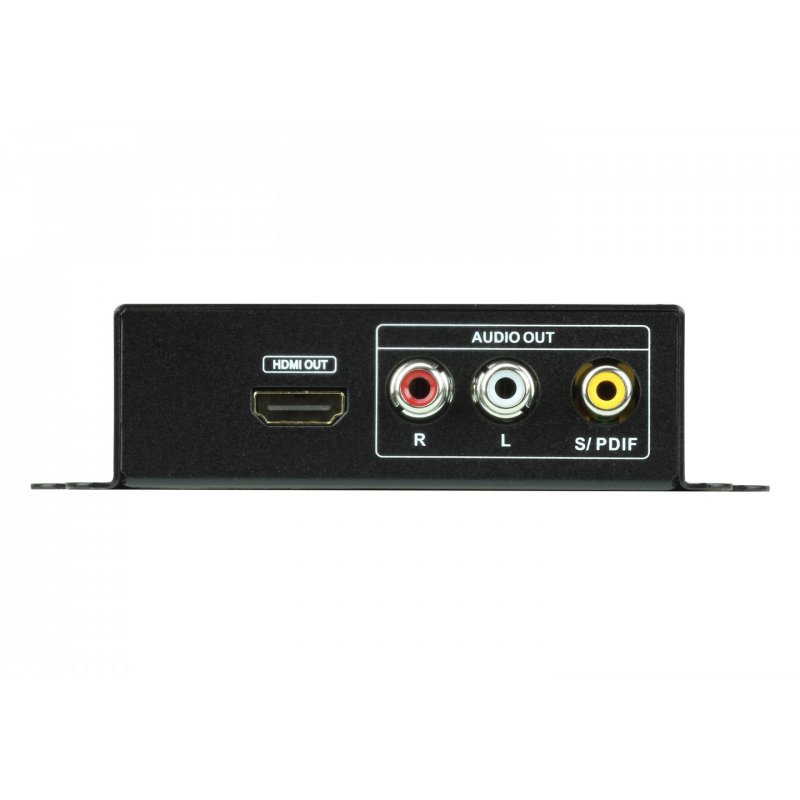

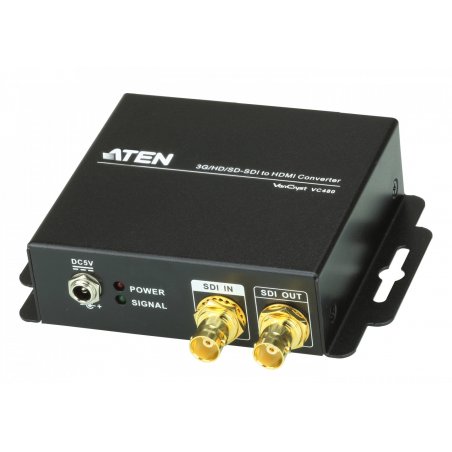

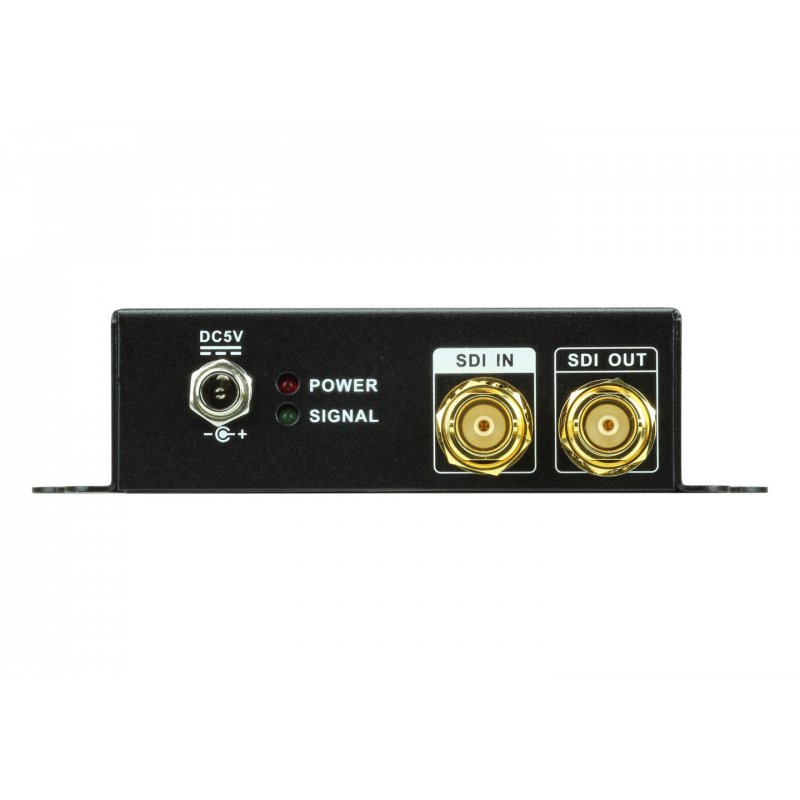

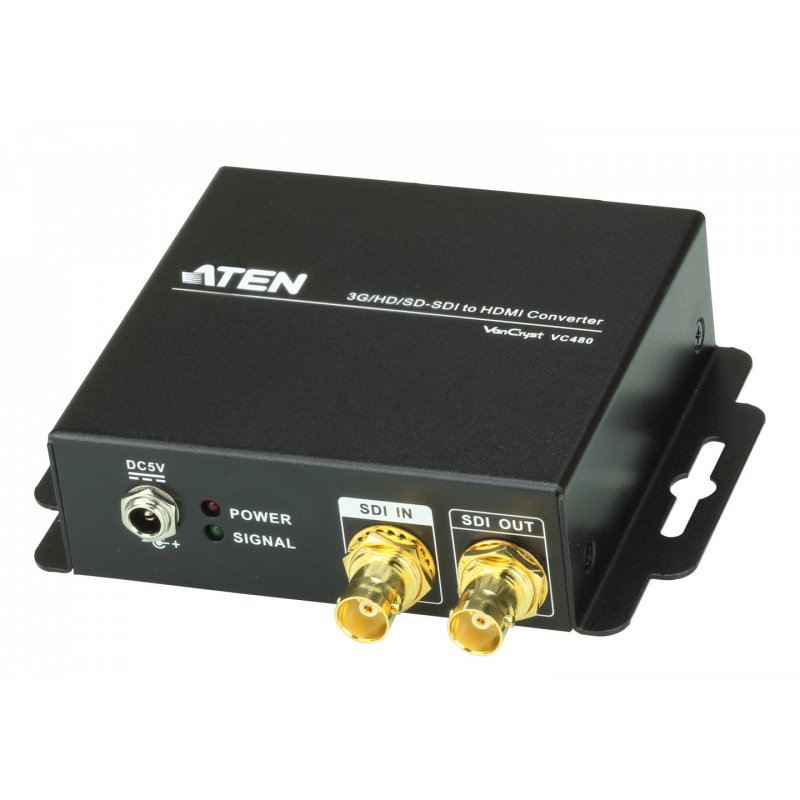

Aten ATEN VC480 video signal converter
ATEN VC480, Black, BNC, HDMI, BNC, 5 V, 0 - 40 °C, -20 - 60 °C
VC480-AT-G
4719264641718
€399.90
VAT included
Description
ATEN VC480. Product colour: Black. Host interface: BNC, Output interface: HDMI, BNC. Input voltage: 5 V. Width: 108.7 mm, Depth: 123 mm, Height: 30.5 mm
- Converts an 3G/HD/SD-SDI input signal to HDMI formats in real time while avoiding transformation loss for both audio and video signals
- Supports additional analog stereo audio and coaxial digital audio
- HDMI (Deep Color)
- LED indication of power and signal status
- Supports an SDI distance of up to 90M (3G-SDI), 150M (HDSDI) or 300M (SD-SDI) of RG6
- Supported SDI formats:
- • SD-SDI (SMPTE 259M, up to 270Mbps)
- • HD-SDI (SMPTE 292M, 296M, up to 1.485Gbps)
- • 3G-SDI (SMPTE 424M, 425M level A,B, up to 2.97Gbps)
- Video Support:
- 525i@59.96, 625i@50
- 720p@23.98/24/25/29.94/30/50/59.94/60
- 1080i@50/59.94/60
- 1080p@23.97/24/25/29.97/30/50/59.94/60
- Buffered loop-through output provides extended monitoring
- Supports 8 audio channels @48kHz rate
- Features automatic detection of 3G/HD/SD-SDI signals
- Reclocking SDI signals for cascading and thus longer transmission
- Locking power connector for secure communications
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- Aten
Specific References
- EAN13
- 4719264641718
