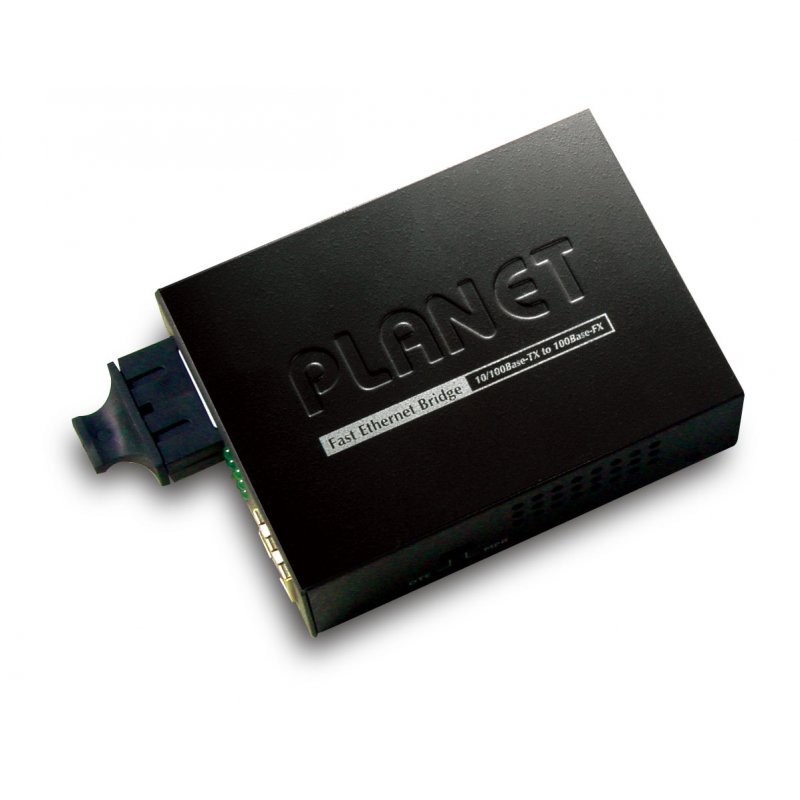

PLANET Technology Corp.po PLANET FT-802 network media converter 100 Mbit/s 1310 nm Multi-mode, Single-mode Black

PLANET FT-802, 100 Mbit/s, 100BASE-FX, 100Base-TX, 10Base-T, 100Base-FX, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s
FT-802
4711213680526
€74.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET FT-802. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100BASE-FX, 100Base-TX, 10Base-T, Converter output interface: 100Base-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode, Single-mode. Product colour: Black, Housing material: Metal, Certification: FCC Class A, CE Class A. Input voltage: 5 V, Input current: 2 A
  • Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX, 100BASE-FX standard
  • Connectors: One RJ45 (auto-MDI/MDI-X) twisted pair, EIA568
  • One fiber-optic, 1310nm wavelength, connector type and distance vary with model
  • FT-806A20 / FT-806A60: Tx-1310nm, Rx-1550nm
  • FT-806B20 / FT-806B60: Tx-1550nm, Rx-1310nm
  • Data Transfer Rate:
  • TP: 10/100Mbps
  • FX: 100Mbps
  • Duplex mode support:
  • Full or half-duplex mode by auto-negotiation (TP)
  • Full or half-duplex mode by DIP switch (FX)
  • LED indicators: PWR, FX LNK/ACT, FX FDX/COL, TP 100, TP LNK/ACT, TP FDX/COL
  • DIP switch: 2 DIP switches
  • Rear DIP switch: FX duplex mode selection
  • Side DIP switch: LFP (Link Fault Pass-through) mode selection
  • IEEE 802.3x Full-Duplex Flow-Control and Back-Pressure in Half-Duplex eliminate the loss of packets

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711213680526
