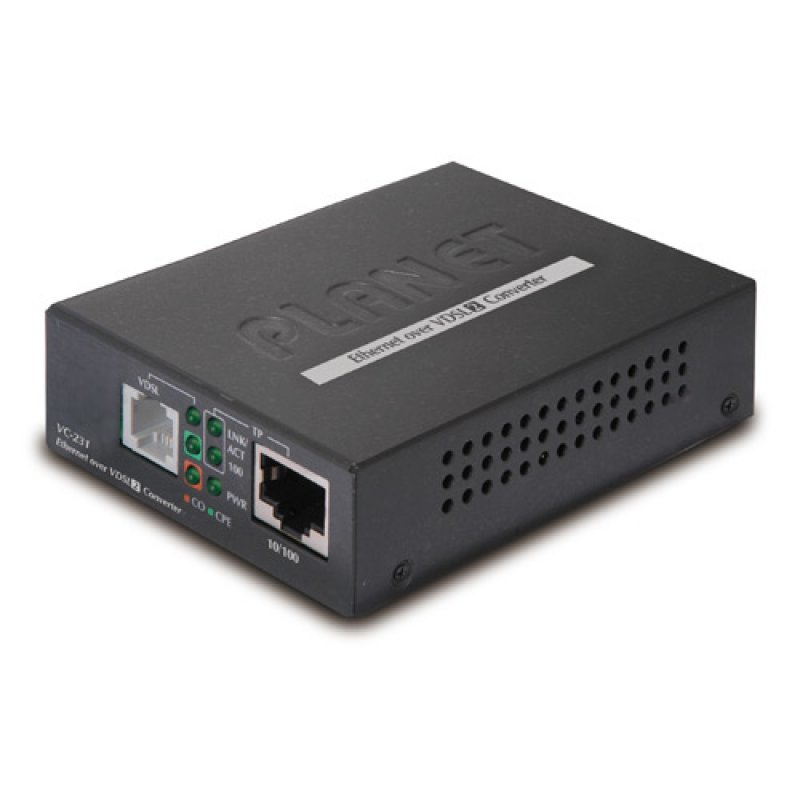

PLANET Technology Corp.po PLANET VC-231 network media converter 100 Mbit/s Black
PLANET VC-231, 100 Mbit/s, 100Base-TX, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Fast Ethernet, 10,100 Mbit/s, Full, Half
VC-231GP
4711605283823
€314.90
VAT included
Description
PLANET VC-231. Maximum data transfer rate: 100 Mbit/s, Converter input interface: 100Base-TX, Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Connectivity technology: Wired. Maximum transfer distance: 1400 m. Product colour: Black, Certification: FCC Part 15 Class A, CE. Input voltage: 5 V, Input current: 2 A, Power consumption (typical): 6.6 W
- Cost-Effective VDSL2 Profile 17a/30a CO / CPE bridge solution
- One box design, CO / CPE selectable via DIP Switch
- Defines symmetric band plan for the transmission of upstream and downstream signals
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX and IEEE 802.3x, Flow control Ethernet standards
- DMT (Discrete Multi-Tone) line coding
- Half duplex Back pressure and IEEE 802.3x Full Duplex Pause frame flow control
- One RJ-11 connector for VDSL port with VDSL connection, additional Splitter for POST connection
- Voice and data communication can be shared simultaneously based on the existing telephone wire
- One 10/100Mbps RJ-45 port, Auto-Negotiation and Auto-MDI/MDI-X
- Supports up to 1536 bytes packet size, IEEE 802.1Q VLAN tag transparent
- VDSL2 stand-alone transceiver for simple bridge modem application
- Advantage of minimum installation time (Simply as Plug-and-Play)
- Selectable target profile and target SNR margin
- Supports extensive LED indicators for network diagnosis
- Co-work with PLANET MC family Media Chassis (MC-700 / MC-1500/ MC-1500R / MC-1500R48)
- Compact in size, easy installation
Data sheet
- Colour
- Black
- Garantie
- 2 ans
- Marque
- PLANET Technology Corp.po
Specific References
- ean13
- 4711605283823
