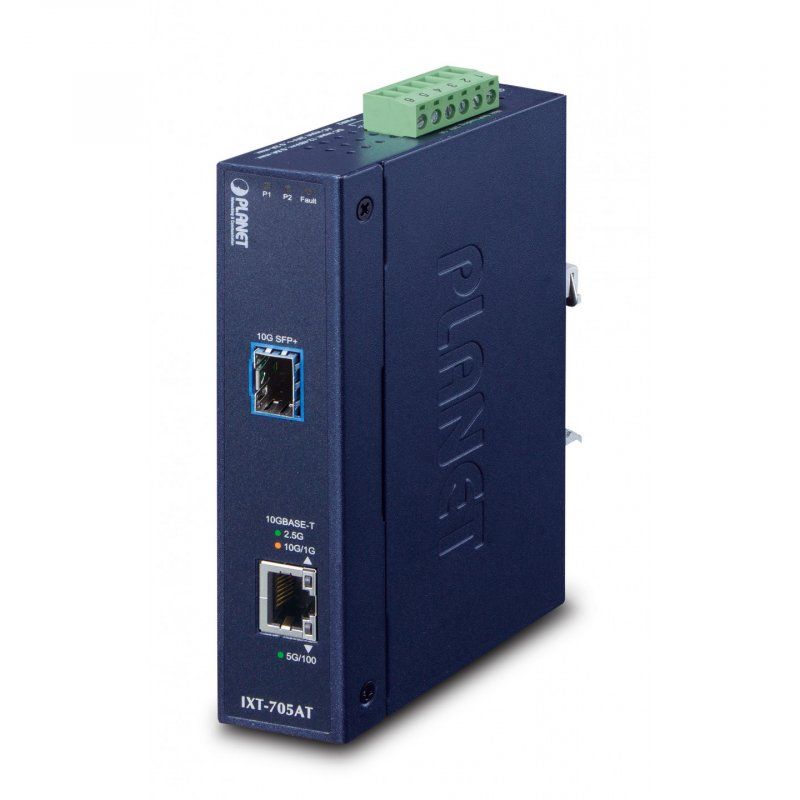

PLANET Technology Corp.po PLANET IXT-705AT network media converter 20000 Mbit/s Blue

PLANET IXT-705AT, 20000 Mbit/s, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, 100,1000,2500,5000,10000 Mbit/s, Full, Half, SFP+, Wired
IXT-705AT
4711605283502
€509.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IXT-705AT. Maximum data transfer rate: 20000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, Ethernet LAN data rates: 100,1000,2500,5000,10000 Mbit/s. Fiber optic connector: SFP+, Connectivity technology: Wired. Maximum transfer distance: 100 m. LED indicators: Alarm, Fault, Link, Power, Product colour: Blue, Housing material: Metal. Input voltage: 12 - 48 V
  • Physical Port
  • 1-port 10000/5000/2500/1000/100BASE-T RJ45 interface with auto MDI/MDI-X function
  • 1-port 10GBASE-X SFP+ slot interface
  • Layer 2 Features
  • IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
  • Supports auto-negotiation and 100Mbps half/full duplex and 1/2.5/5/10Gbps full duplex mode
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • 16K jumbo frame size support
  • Automatic address learning and address aging
  • Industrial Case and Installation
  • Slim-type IP30 metal case
  • DIN rail and wall-mount design
  • Redundant power design
  • 12 to 48V DC, redundant power with polarity reverse protect function
  • AC 24V power adapter acceptable
  • Supports 6000 VDC Ethernet ESD protection
  • 100 meters over Cat 6A at 10Gbps
  • 40 to 75 degrees C operating temperature
  • Plug and Play installation

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605283502

Comments

No customer reviews for the moment.
