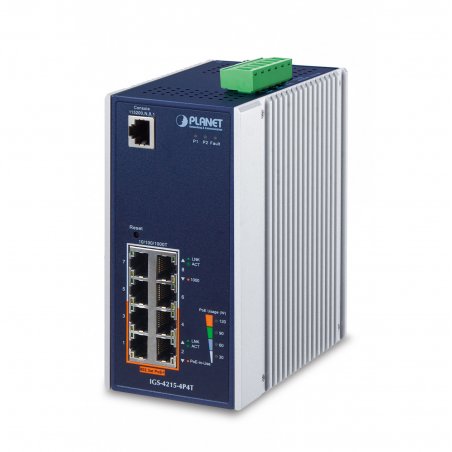

PLANET Technology Corp.po PLANET IGS-4215-4P4T network switch Managed L2/L4 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Blue, White

PLANET IGS-4215-4P4T, Managed, L2/L4, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
IGS-4215-4P4T
4711605281591
€589.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IGS-4215-4P4T. Switch type: Managed, Switch layer: L2/L4. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE.... DC input voltage: 48 - 56 V. Power over Ethernet (PoE). Wall mountable
  • Physical Port
  • 8-port 10/100/1000BASE-T Gigabit RJ45 copper with 4-port IEEE 802.3at/af PoE Injector (Port-1 to Port-4)
  • RJ45 console interface for switch basic management and setup
  • Power over Ethernet
  • Complies with IEEE 802.3at Power over Ethernet Plus, end-span PSE
  • Backward compatible with IEEE 802.3af Power over Ethernet
  • Up to 4 ports of IEEE 802.3af/802.3at devices powered
  • Supports PoE power up to 36 watts for each PoE port
  • Auto detects powered device (PD)
  • Circuit protection prevents power interference between ports
  • Remote power feeding up to 100 meters in standard mode and 250m in extend mode
  • PoE management
  • Total PoE power budget control
  • Per port PoE function enable/disable
  • PoE port power feeding priority
  • Per PoE port power limitation
  • PD classification detection
  • PD alive-check
  • PoE schedule
  • Industrial Case & Installation
  • IP30 aluminum case
  • DIN-rail and wall-mounted design
  • Supports -40 to 75 degrees C operating temperature
  • Supports ESD 6KV DC Ethernet protection
  • Redundant power design
  • 48V~56V DC wide power input with polarity reverse protection
  • Provides one relay output for power failure
  • Switching
  • Hardware based 10/100Mbps (half/full duplex), 1000Mbps (full duplex), auto-negotiation and auto MDI/MDI-X
  • Features Store-and-Forward mode with wire-speed filtering and forwarding rates
  • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation
  • 8K MAC address table size
  • 10K jumbo frame
  • Automatic address learning and address aging
  • Supports CSMA/CD protocol
  • Layer 2 Features
  • Supports VLAN
  • IEEE 802.1Q tagged VLAN
  • Provider bridging (VLAN Q-in-Q, IEEE 802.1ad) support
  • Protocol VLAN- Voice VLAN
  • Private VLAN (Protected port)
  • Management VLAN
  • GVRP
  • Supports Spanning Tree Protocol
  • STP (Spanning Tree Protocol)
  • RSTP (Rapid Spanning Tree Protocol)
  • MSTP (Multiple Spanning Tree Protocol)
  • STP BPDU Guard, BPDU Filtering and BPDU Forwarding
  • Supports Link Aggregation
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • Cisco ether-channel (static trunk)
  • Maximum 4 trunk groups, up to 4 ports per trunk group
  • Provides port mirror (many-to-1)
  • Loop protection to avoid broadcast loops
  • Quality of Service
  • Ingress/Egress Rate Limit per port bandwidth control
  • Traffic classification
  • IEEE 802.1p CoS- TOS/DSCP/IP precedence of IPv4/IPv6 packets
  • Strict priority and Weighted Round Robin (WRR) CoS policies

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605281591
