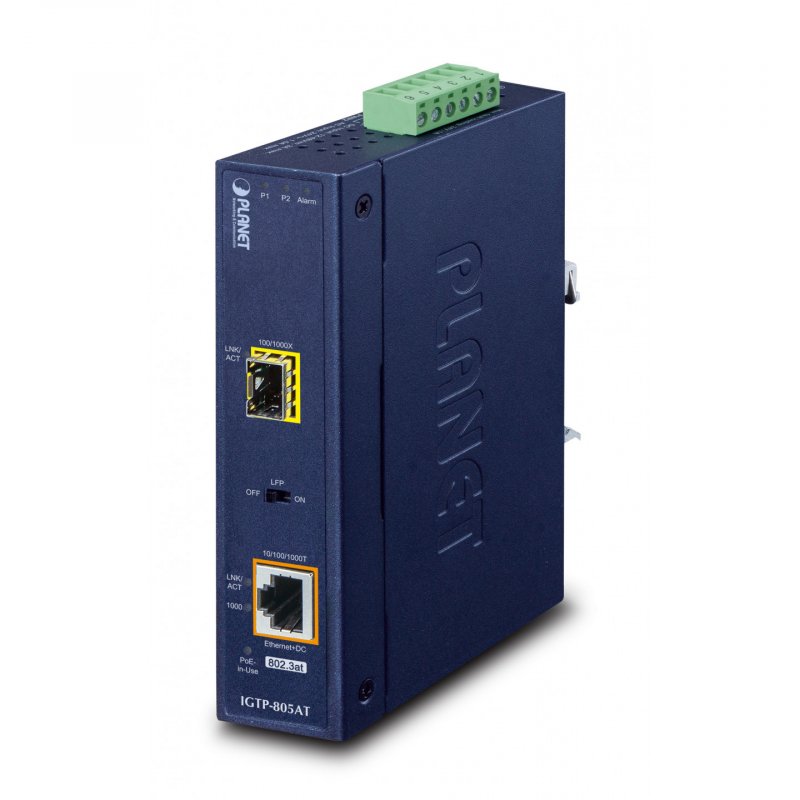

PLANET Technology Corp.po PLANET IGTP-805AT network media converter 2000 Mbit/s 1310 nm Blue

Name: PLANET IGTP-805AT network media converter 2000 Mbit/s 1310 nm Blue
Brand: PLANET Technology Corp.po
SKU: IGTP-805AT
Price: 169.9 EUR
Availability: InStock

PLANET IGTP-805AT, 2000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE..., Gigabit Ethernet, 10,100,1000 Mbit/s, 1000BASE-SX, 1000BASE‑LX

Manufacturer reference IGTP-805AT

EAN13 4711213686979

€169.90

In stock

PLANET IGTP-805AT. Maximum data transfer rate: 2000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE..., Ethernet interface type: Gigabit Ethernet. Fiber optic connector: SFP, Connectivity technology: Wired. Wavelength: 1310 nm. Product colour: Blue, Housing material: Metal, International Protection (IP) code: IP30. Input voltage: 48 V, Total Power over Ethernet (PoE) budget: 30 W

Physical Port
1-port 10/100/1000BASE-T RJ45 with IEEE 802.3af /802.3at PoE+ Injector
1 1000BASE-SX/LX SC Fiber interface (IGTP-802T/IGTP-802TS)
1 SFP port, supporting 1000BASE-X and 100BASE-FX transceiver dual mode (IGTP-805AT)
Power over Ethernet
Complies with IEEE 802.3at/af PoE Plus end-span PSE
1 IEEE 802.3at/af device powered
Supports PoE Power up to 30.8 watts for PoE port
Provides DC 52V power over RJ45 Ethernet cable to PD with Ethernet port
Auto-detects IEEE 802.3at/af equipment and protects devices from being damaged by incorrect installation
Remote power feeding up to 100m
IEEE 802.3at/af splitter devices compatible
Layer 2 Features
Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode on RJ45 port
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
Hardware
LED Indicators
System: Power 1, Power 2 (Green) and Alarm LED (Red)
Fiber port: LNK/ACT (Green)
10/100/1000BASE-T port: LNK/ACT, 1000 LNK/ACT (Green). PoE: Power-in-use (Amber)
DIP switch: LFP (Link Fault Passthrough) and FEF (Far End Fault) mode selection
Industrial Case and Installation
IP30 metal case
DIN-rail or wall-mount design
12 ~ 48V DC/24V AC redundant power with reverse polarity protection and connective removable terminal block for master and slave power
Supports 6000 VDC Ethernet ESD protection
Supports -40 to 75 degrees C operating temperature
