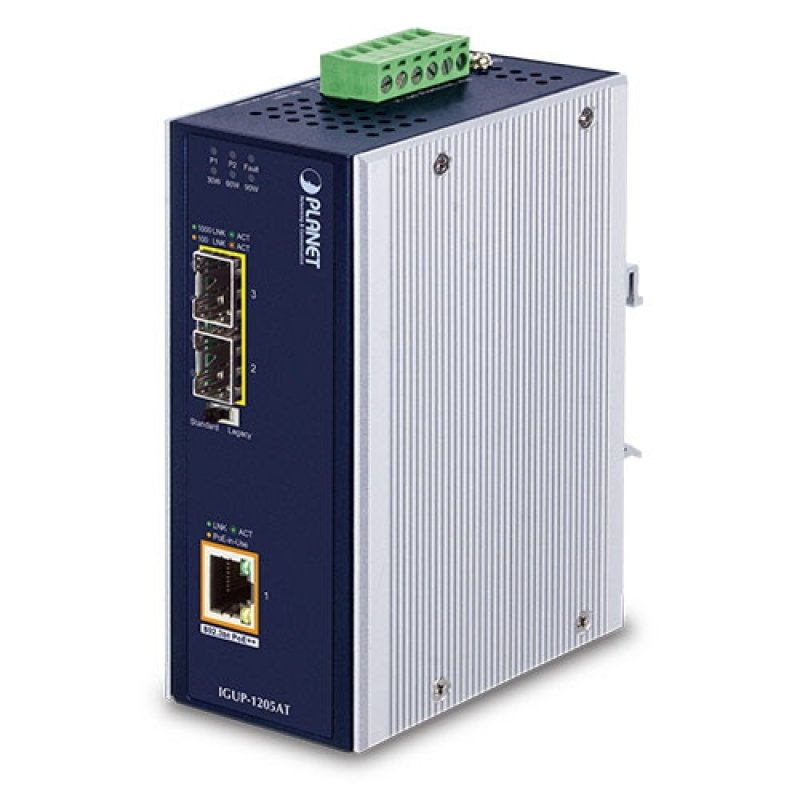

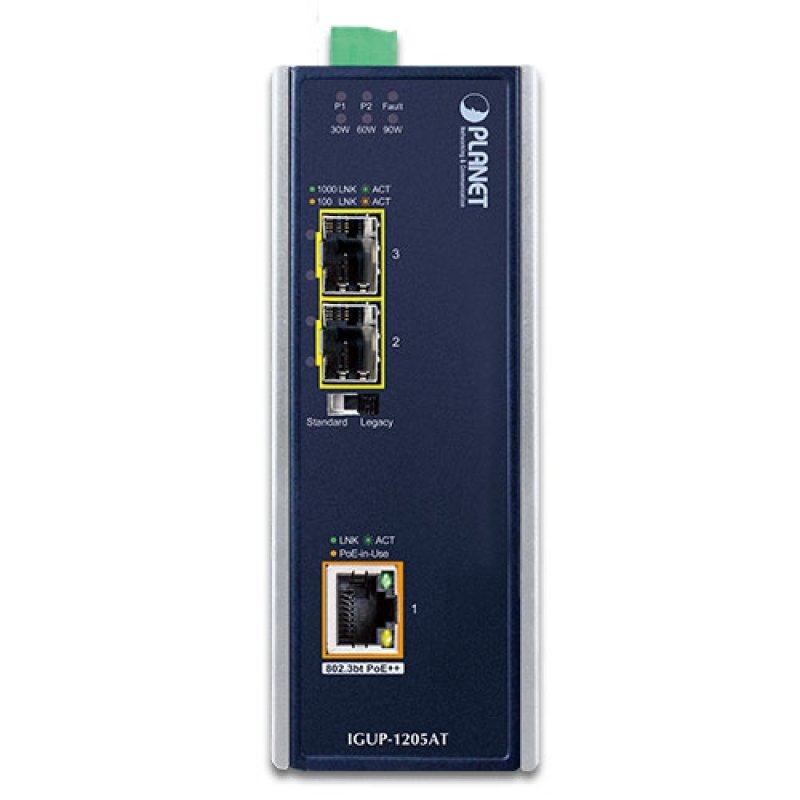

PLANET Technology Corp.po PLANET IGUP-1205AT network media converter 1000 Mbit/s Multi-mode, Single-mode Blue

PLANET IGUP-1205AT, 1000 Mbit/s, 10Base-T, 100Base-T, 1000Base-T, 1000Base-BX, 1000Base-LX, 1000Base-SX, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u,..., Gigabit Ethernet, 10,100,1000 Mbit/s
IGUP-1205AT
4711605284400
€459.90
VAT included

Visa
Mastercard
PayPal

Description

PLANET IGUP-1205AT. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 10Base-T, 100Base-T, 1000Base-T, Converter output interface: 1000Base-BX, 1000Base-LX, 1000Base-SX. Fiber optic connector: SFP, Connectivity technology: Wired. Fiber mode structure: Multi-mode, Single-mode, Fiber cable diameters supported (core/cladding): 9/125,50/125,62.5/125 µm. LED indicators: Fault, PoE, System, Product colour: Blue, Housing material: Metal. Input voltage: 12 - 48 V, Total Power over Ethernet (PoE) budget: 90 W
  • Physical Port
  • 1-port 10/100/1000BASE-T RJ45 with IEEE 802.3bt PoE Injector function
  • 2 SFP slots, supporting 1000BASE-X and 100BASE-FX transceiver dual mode
  • Power over Ethernet
  • Complies with IEEE 802.3af/at/bt PoE Plus end-span PSE
  • 1 IEEE 802.3af/at/bt device powered
  • Supports PoE Power up to 95 watts for PoE port
  • Provides DC 54V power over RJ45 Ethernet cable to PD with Ethernet port
  • Auto-detects IEEE 802.3bt equipment and protects devices from being damaged by incorrect installation
  • Remote power feeding up to 100m
  • IEEE 802.3af/at/bt splitter devices compatible
  • Layer 2 Features
  • Supports auto-negotiation and 10/100Mbps half / full duplex and 1000Mbps full duplex mode on RJ45 port
  • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
  • Hardware
  • LED Indicators
  • System: Power 1, Power 2, Fault and PoE usage
  • Fiber port: LNK/ACT
  • 10/100/1000BASE-T port: LNK/ACT, PoE-in-use
  • DIP switch: Standard/Legacy mode selection
  • Industrial Case and Installation
  • IP30 metal case
  • DIN-rail and wall-mount designs
  • 12 ~ 56V DC redundant power with reverse polarity protection and connective removable terminal block for master and slave power
  • Supports 6000 VDC Ethernet ESD protection
  • Minus 40 to 75 degrees C operating temperature

Data sheet

Colour
Black
Garantie
2 ans
Marque
PLANET Technology Corp.po

Specific References

ean13
4711605284400
