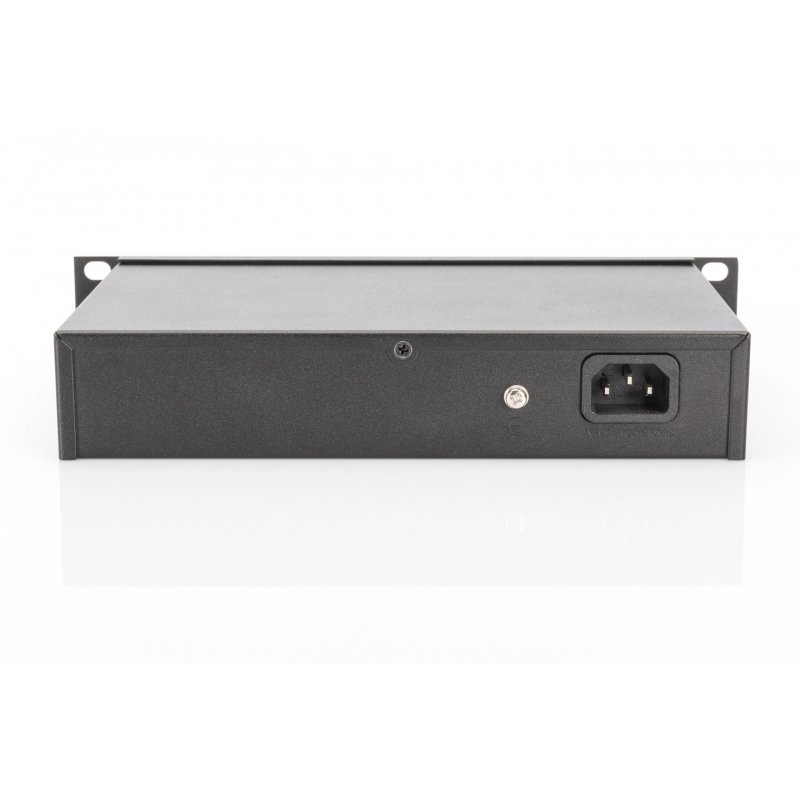

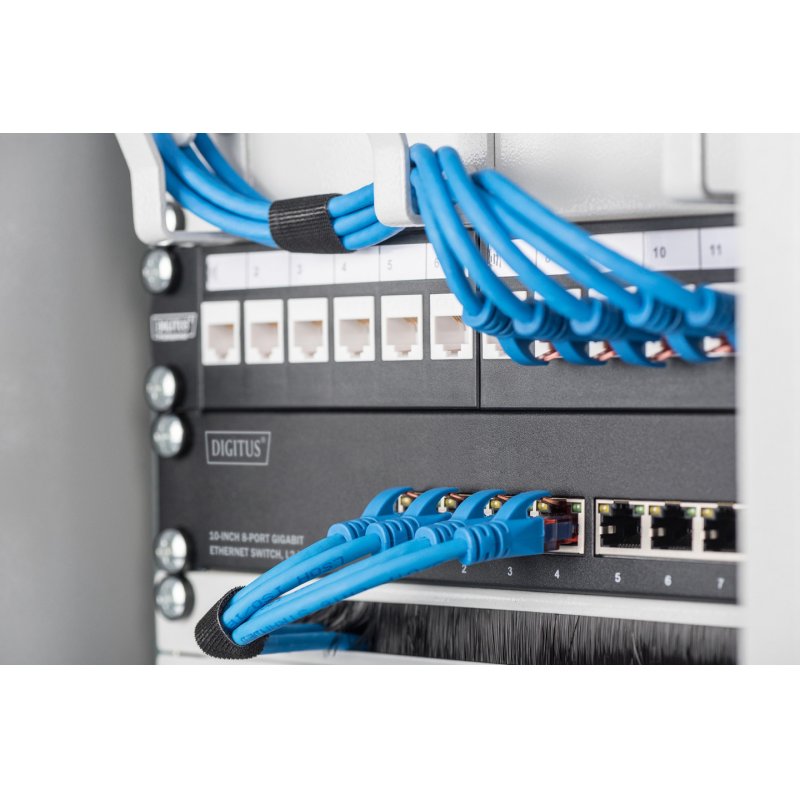

ASSMANN Digitus 8 Port Gigabit Switch, 10 Inch, Managed

Digitus 8 Port Gigabit Switch, 10 Inch, Managed, Managed, L2+, Gigabit Ethernet (10/100/1000), Full duplex, Rack mounting, Wall mountable
DN-80117
4016032464358
€146.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 8 Port Gigabit Switch, 10 Inch, Managed. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Wall mountable, Rack mounting
  • Number of ports: 8 x 10/100/1000Base-TX RJ45
  • Standards: IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x full-duplex flow control, IEEE802.3ab link aggregation
  • Forwarding rate: 10/100/1000 Mbps
  • LED displays: Power, Link/Act
  • Backplane bandwidth: 16G
  • Forwarding capacity: 11.9 Mpps
  • Jumbo frame size: 16 K
  • MAC addresses: 8K
  • Port features: Port Control, Port Isolation, Port Loop Detection
  • Port mirroring: Multi to 1 Sniffer
  • VLAN: Port-based & 802.1q Tag-based VLANs
  • Link aggregation: 8 groups
  • Rate limit: 64kbps
  • Spanning tree: Supports STP, RSTP, MSTP
  • Ring protocol: Supports EAPS
  • Multicast: Supports 256 multicast groups & IGMP snooping for multimedia applications
  • Supports Static ARP & Static Routing, up to 32 VLAN interfaces
  • QoS: 4 lines per port, scheduling algorithm: WRR, SP, WFQ, port-based, MAC-based, 802.1p, DSCP classification
  • ACL: Standard IP, Extend IP, MAC IP, ARP, 512 entries
  • Security: MAC-based authentication, AAA/RADIUS authentication, WEB/Telnet password protection, Accessing privilege mode password protection
  • Supports SMNP
  • Supports ICMPv6, IPv6 Neighbor Discovery, MLD Snooping, IPv6 Telnet
  • Management interfaces: WEB, SNMP, CLI, Telnet, TACACS+, RMON
  • Power consumption: 15W max.
  • Operating voltage: 100 - 240 V AC, 50/60 Hz, integrated power adapter (IEC C13 plug for non-heating appliances)
  • Operating temperature: 0 °C to 40 °C
  • Storage temperature: -10 °C to +70 °C
  • Operating humidity: 20% - 85% (non condensing)
  • Housing: Metal (with protective conductor terminal)
  • Dimensions: W 250 x D 150 x H 44 mm
  • Weight: 1.140 kg (without packaging)

Data sheet

Colour
Black
Garantie
2 ans
Marque
Assmann
Modèle
DN-80117
Weight
1

Specific References

ean13
4016032464358
