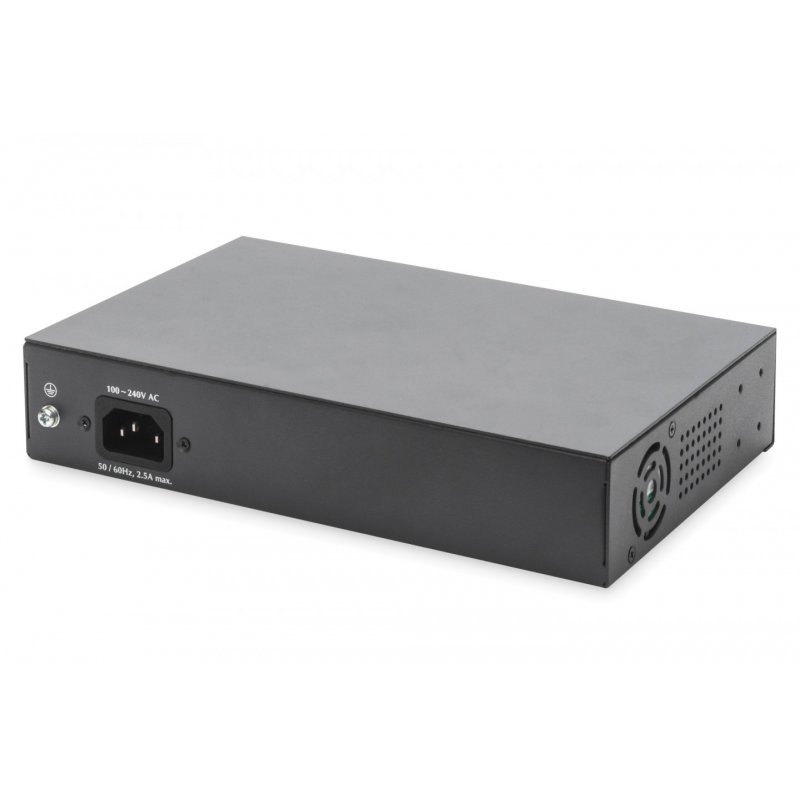

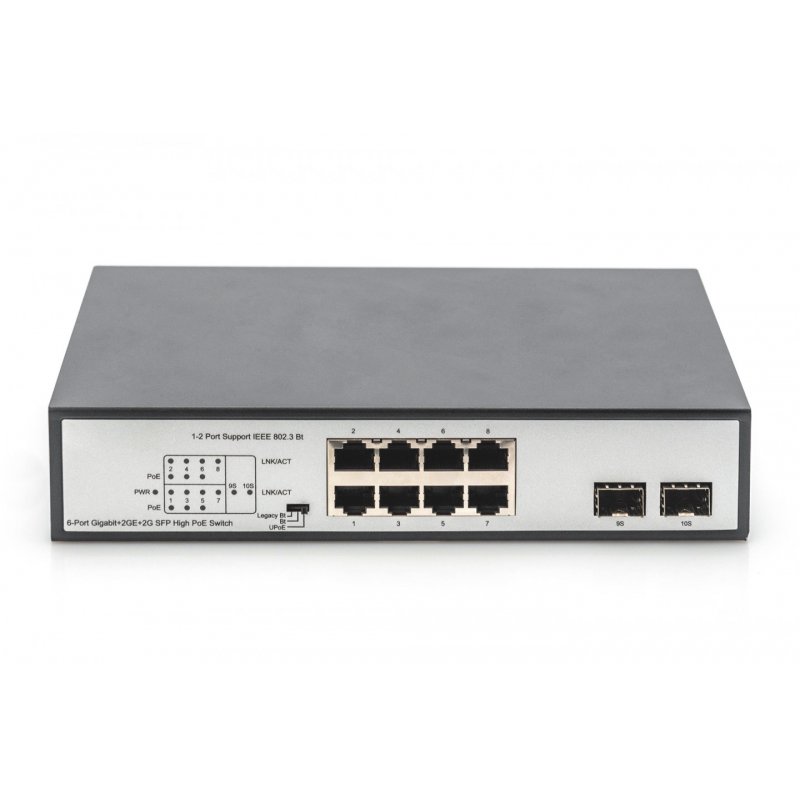

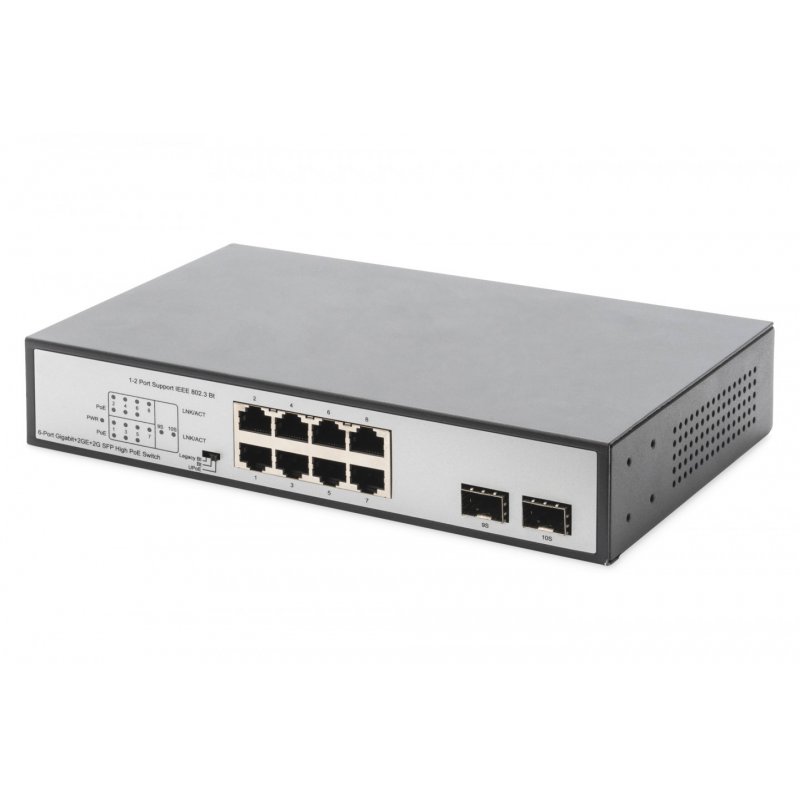

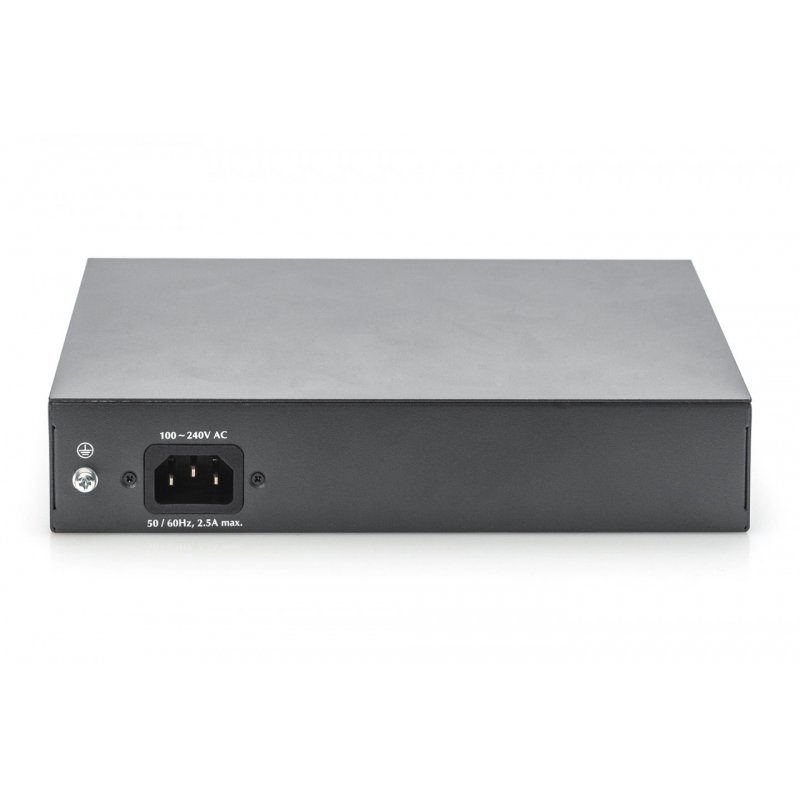

ASSMANN Digitus 8 Port Gigabit PoE Switch, 19 Zoll, Unmanaged, 2 Uplinks

Digitus 8 Port Gigabit PoE Switch, 19 Zoll, Unmanaged, 2 Uplinks, Unmanaged, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Wall mountable
DN-95140
4016032467380
€270.90
VAT included

Visa
Mastercard
PayPal

Description

Digitus 8 Port Gigabit PoE Switch, 19 Zoll, Unmanaged, 2 Uplinks. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 4000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.3bt. Power over Ethernet (PoE). Wall mountable
  • Supported Ethernet standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3x
  • Supported PoE standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
  • 2 x RJ45 Ports with PoE++ (90 W max.) - 10/100/1000 Mbps
  • 4 x RJ45 Ports with PoE++ (30 W max.) - 10/100/1000 Mbps
  • 2 x RJ45 Ports - usable as uplink or for LAN devices- 10/100/1000 Mbps
  • 2 x SFP Uplink Ports - for fiber glass or copper technology - 100/1000 Mbps
  • Supports auto MDI/MDIX for the RJ45 ports
  • Supports auto negotiation for the RJ45 ports
  • Supported modes: Legacy Bt/BT/UPoE
  • Transfer mode: Store and forward
  • Backplane: 20 G (switching capacity)
  • MAC address list: 4 K, auto-learning, auto-aging
  • Jumbo frames: 9216 bytes
  • Package Buffer 1.5 Mbit
  • Package forwarding rate: 13.39 Mpps
  • Total power consumption: 190 W
  • PoE budget: 180 W
  • Operating temperature: 0 °C to 40 °C
  • Operating humidity: 10% - 90% RH (non-condensing)
  • Storage temperature: -40 °C to +70 °C
  • Storage humidity: 5% to 90% RH (non-condensing)
  • Ventilation: Active fan installed
  • Network voltage: AC 100 - 240 V / 50/60 Hz
  • No surge protection: Differential mode: +/- 4kV - common mode: +/- 6kV
  • Electrostatic standard: Contact: +/- 6kV - air: +/- 8kV
  • Energy saving: IEEE802.3az (EEE)
  • Dimensions: 220 x 150 x 44 mm (LxWxH)
  • Weight: 1340 g

Data sheet

Colour
Black
Garantie
2 ans
Marque
Assmann
Modèle
DN-95140
Weight
1

Specific References

ean13
4016032467380
