1000T 802.3at PoE 4-Port 10G SFP Managed Ethernet Switch L2 Gigabit Ethernet

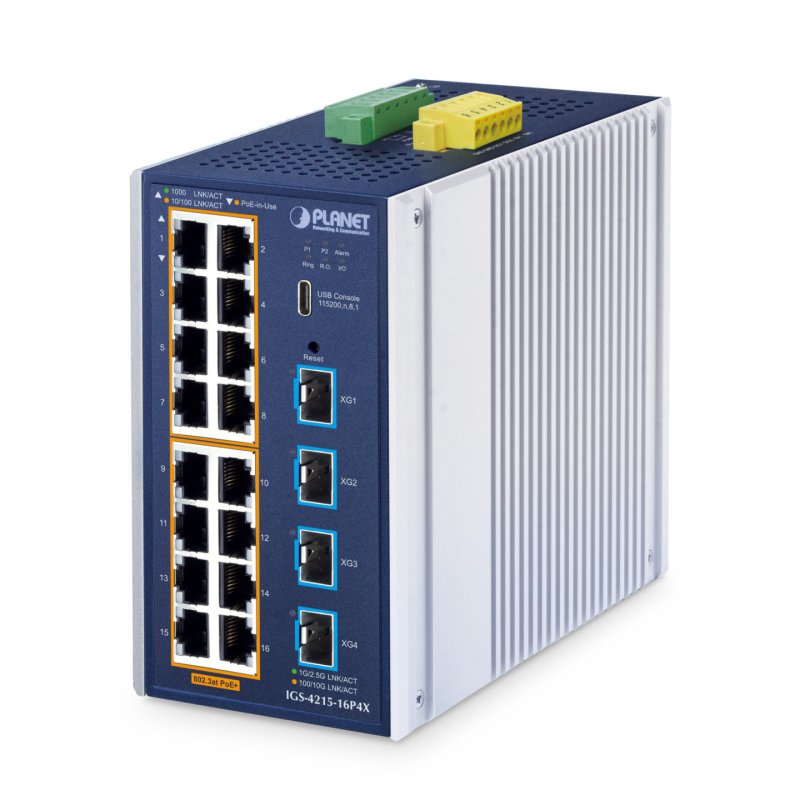

Name: PLANET ndustrial L2 16-Port 10/100/1000T 802.3at PoE 4-Port 10G SFP Managed Ethernet Switch L2 Gigabit Ethernet
Brand: PLANET
SKU: IGS-4215-16P4X
Price: 1109 EUR
Availability: InStock

PLANET ndustrial L2 16-Port 10/100/1000T 802.3at PoE 4-Port 10G SFP Managed Ethernet Switch, Managed, L2 , Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Manufacturer reference IGS-4215-16P4X

EAN13 4711605288637

€1,109.00

Last units

PLANET ndustrial L2 16-Port 10/100/1000T 802.3at PoE 4-Port 10G SFP Managed Ethernet Switch. Switch type: Managed, Switch layer: L2 . Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 4. Full duplex. MAC address table: 32000 entries, Switching capacity: 112 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE.... Power over Ethernet (PoE). Wall mountable

Physical Port
．16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
．PoE Functionality: 16 ports with IEEE 802.3at PoE injector function
．4 10GBASE-SR/LR SFP slots, backward compatible with 100M/1G/2.5GBASE-X SFP
．One USB Type C console interface for basic management and setup
Power over Ethernet
．Powers up to 16 ports of IEEE 802.3at PoE devices
．PoE budget
．．Dual power input: 360W
．．Single power input: 240W
．Supports PoE power up to 36 watts for each PoE port
．Auto detects powered devices (PDs)
．Circuit protection prevents power interference between ports
．Remote power feeding up to 100 meters in standard mode and 250m in extended mode
．PoE management
．．Total PoE power budget control
．．Per port PoE function enable/disable
．．PoE port power feeding priority
．．Per PoE port power limitation
．．PD classification detection
．Intelligent PoE features
．．Temperature threshold control
．．PoE extension
．．PD alive check
．．PoE schedule
Industrial Protocol
．Modbus TCP for real-time monitoring in the SCADA system
Digital Input and Digital Output
．2 digital input (DI)
．2 digital output (DO)
．Integrate sensors into auto alarm system
．Transfer alarm to IP network via SNMP trap
Layer 3 IP Routing Features
．Supports maximum 32 static routes and route summarization
．Routing interface provides per VLAN routing mode
Layer 2 Features
．Supports VLAN
．Supports Spanning Tree Protocol
．Supports Link Aggregation
．Supports port mirror (many-to-1)
．Loop protection to avoid broadcast loops
．Supports ERPS (Ethernet Ring Protection Switching)
．Link Layer Discovery Protocol (LLDP)
Quality of Service
．Ingress/Egress Rate Limit per port bandwidth control
．Traffic classification
．Strict priority and Weighted Round Robin (WRR) CoS policies
Security
．Storm Control support
．．Broadcast / Multicast / Unknown Unicast
．Authentication
．．Built-in RADIUS client to cooperate with the RADIUS servers
．．DHCP Option 82
．．RADIUS/TACACS authentication
．Access Control List
．MAC Security
．．Static MAC
．．MAC filtering
．Port security for source MAC address entries filtering
．DHCP snooping to filter distrusted DHCP messages
．Dynamic ARP inspection discards ARP packets with invalid MAC address to IP address binding
．IP source guard prevents IP spoofing attacks
．DoS attack prevention
Management
．IPv4 and IPv6 dual stack management
．Switch Management Interface
．SNMP Management
．User privilege levels control
．Built-in Trivial File Transfer Protocol (TFTP) client
．Static and DHCP for IP address assignment
．System Maintenance
．．Firmware upload/download via HTTP/TFTP
．．Configuration upload/download through HTTP/TFTP
．．Dual images
．．Hardware reset button for system reboot or reset to factory default
．SNTP Network Time Protocol
．Network Diagnostic
．．Cable diagnostics
．．ICMPv6/ICMPv4 Remote Ping
．．SFP-DDM (Digital Diagnostic Monitor)
．Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
