1000) Power over Ethernet (PoE) Aluminium, Blue

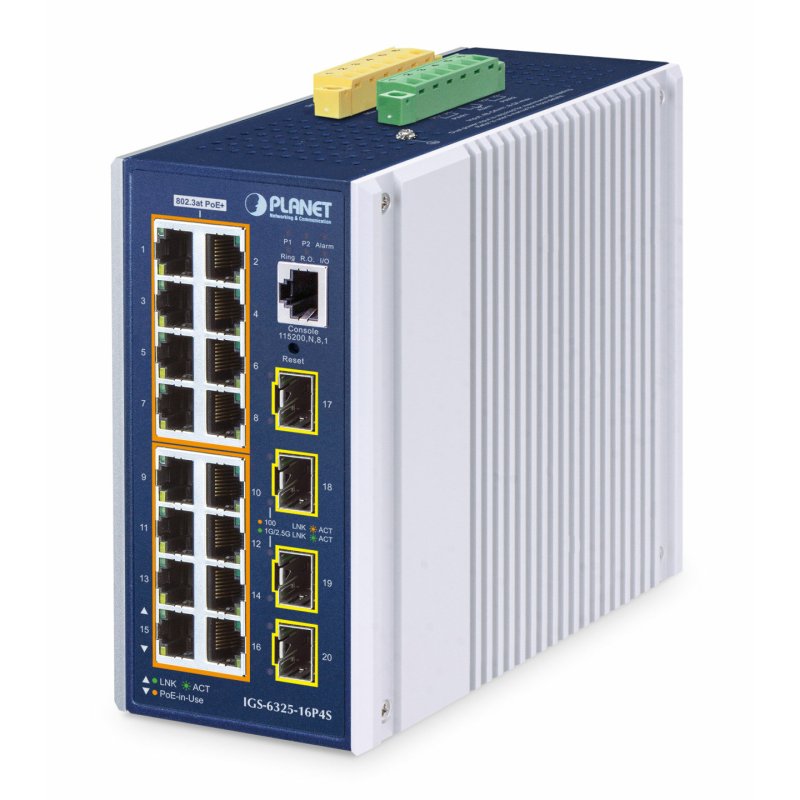

Name: PLANET IGS-6325-16P4S network switch Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Aluminium, Blue
Brand: PLANET
SKU: IGS-6325-16P4S
Price: 899.9 EUR
Availability: InStock

PLANET IGS-6325-16P4S, Managed, L3, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable

Manufacturer reference IGS-6325-16P4S

EAN13 4711605284134

€899.90

In stock

PLANET IGS-6325-16P4S. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Installed SFP modules quantity: 4, Console port: RJ-45. Full duplex. MAC address table: 16000 entries, Switching capacity: 52 Gbit/s. Networking standards: IEEE 1588, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ag, IEEE 802.1p, IEEE.... DC input voltage: 48 - 56 V. Power connector: Terminal block (3-pin). Power over Ethernet (PoE). Wall mountable

Physical Port
．16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE Injector function
．4 100/1000/2500BASE-X slots for SFP type auto detection
．One RJ45 console interface for basic management and setup
Power over Ethernet
．Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
．Up to 16 IEEE 802.3af/802.3at devices powered
．Supports PoE power up to 36 watts for each PoE port
．Auto detects powered device (PD)
．Circuit protection prevents power interference between ports
．Remote power feeding up to 100m
．PoE management features
．．Total PoE power budget control
．．Per port PoE function enable/disable
．．PoE admin-mode control
．．PoE port power feeding priority
．．Per PoE port power limit
．．PD classification detection
．．PoE extend mode control to support power feeding up to a distance of up to 160 meters
．Intelligent PoE features
．．Temperature threshold control
．．PoE usage threshold control
．．PD alive check
．．PoE schedule
Industrial Protocol
．Modbus TCP for real-time monitoring in the SCADA system
．IEEE 1588v2 PTP (Precision Time Protocol)
Layer 3 IP Routing Features
．Supports maximum 128 static routes and route summarization
．IPv4 dynamic routing protocol supports RIPv2 and OSPFv2
．IPv6 dynamic routing protocol supports OSPFv3
．IPv4/IPv6 hardware static routing
．Routing interface provides per VLAN routing mode
Layer 2 Features
．Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
．High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
．Storm Control support
．．Broadcast/Multicast/Unicast
．Supports VLAN
．Supports Spanning Tree Protocol
．Supports Link Aggregation
．Provides port mirror (many-to-1)
．Port mirroring to monitor the incoming or outgoing traffic on a particular port
．Loop protection to avoid broadcast loops
．Supports ERPS (Ethernet Ring Protection Switching)
．Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
．Link Layer Discovery Protocol (LLDP)
Security
．Authentication
．．IEEE 802.1x port-based / MAC-based network access authentication
．．Built-in RADIUS client to co-operate with the RADIUS servers
．．TACACS login users access authentication
．．RADIUS / TACACS users access authentication
．．Guest VLAN assigns clients to a restricted VLAN with limited services
．Access Control List
．Source MAC / IP address binding
．DHCP Snooping to filter un-trusted DHCP messages
．Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding
．IP Source Guard prevents IP spoofing attacks
．IP address access management to prevent unauthorized intruder
