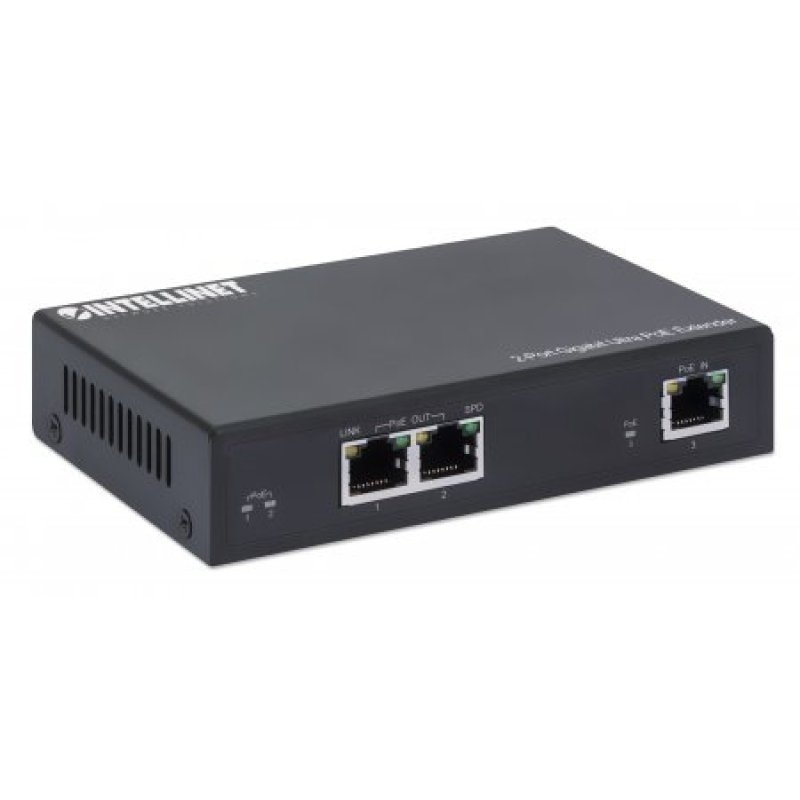

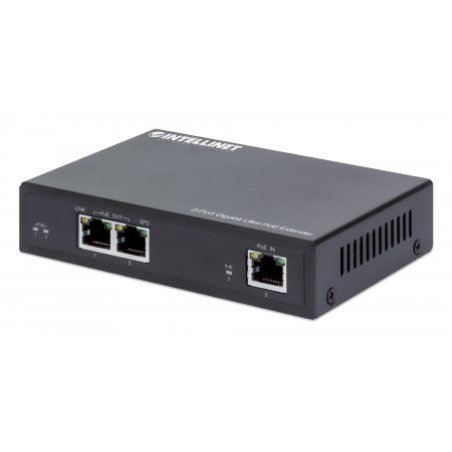

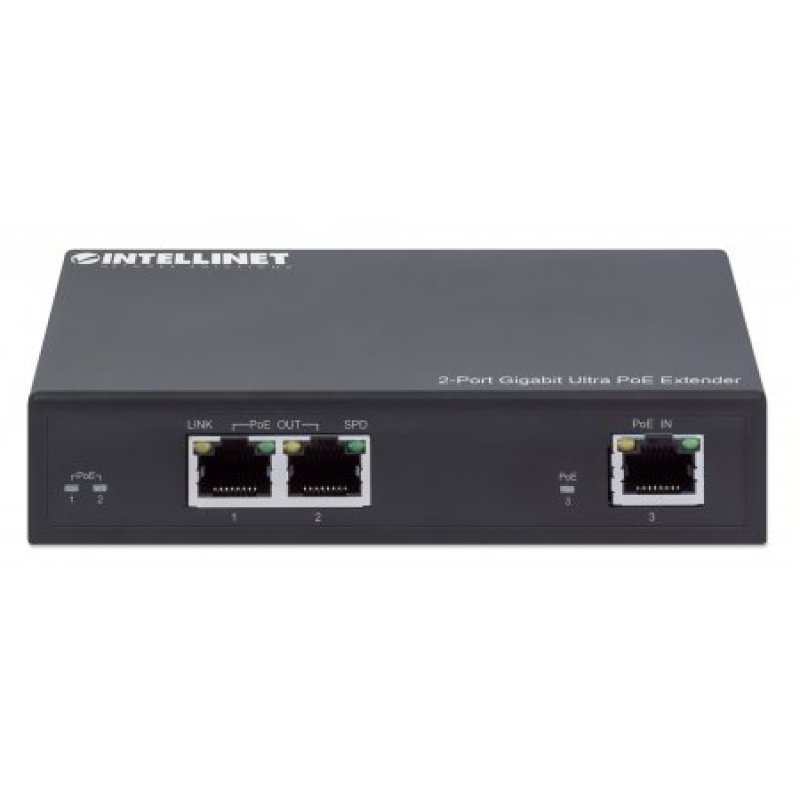

Intellinet Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE
Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing, Network transmitter, 100 m, 6000 Mbit/s, Cat5e, 10,100,1000 Mbit/s, Full
561600
0766623561600
€97.00
VAT included
Description

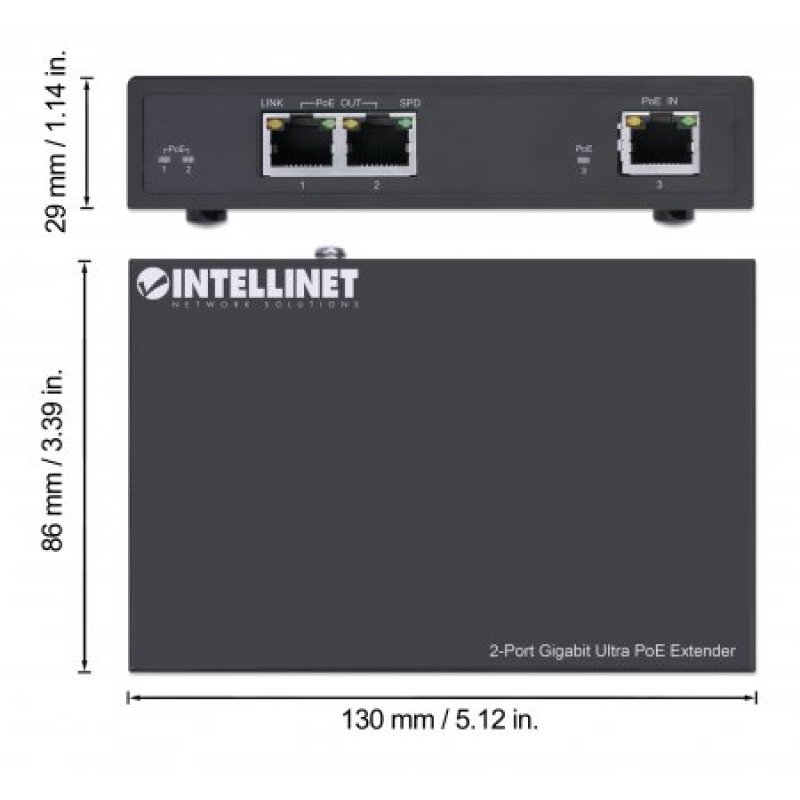

Intellinet 2-Port Gigabit Ultra PoE Extender, Adds up to 100 m (328 ft.) to PoE Range, PoE Power Budget 60 W, Two PSE Ports with 30 W Output Each, IEEE 802.3bt/at/af Compliant, Metal Housing. Type: Network transmitter, Maximum transfer distance: 100 m, Data transfer rate: 6000 Mbit/s. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. Product colour: Black, Housing material: Metal, LED indicators: Activity, Link, PoE. Total Power over Ethernet (PoE) budget: 60 W, Power over Ethernet (PoE) voltage range: 44 - 57 V. Width: 130 mm, Depth: 86 mm, Height: 29 mm
- Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
- Connects and powers two PoE devices such as network cameras, wireless access points or VoIP phones, from one PoE injector or PoE switch PSE port
- Delivers up to 60 W to two connected PoE devices with up to 30 W per port
- Supports 10/100/1000 Mbps data rates
- Total PoE power budget of 60 watts
- Saves time and money by delivering data and power via existing network cables
- PoE awareness ensuring that power is only sent to IEEE 802.3at/af-compliant devices; non-PoE devices only receive data
- Short-circuit, overload and high-voltage protection

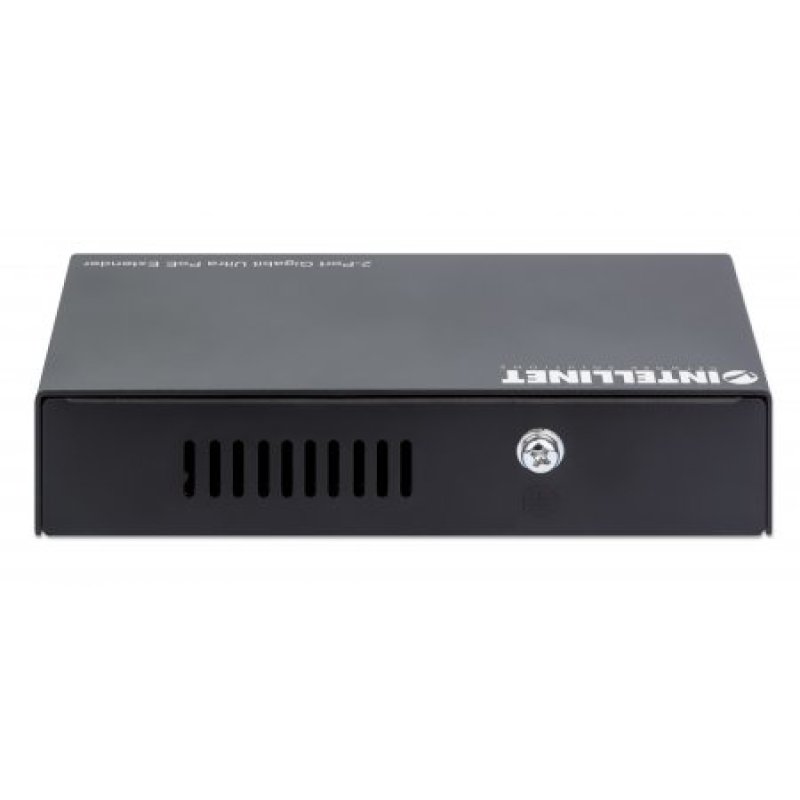

- Grounding point to protect equipment from external electrical surges
- Requires no additional power supply; draws power directly from the PoE input
- Compatible with IEEE 802.3bt/at/af-compliant PoE injectors and PoE switches (PSE)
- Compatible with IEEE 802.3at/af-compliant powered devices (PD)
- Functional as a PoE-powered 3-port Gigabit switch with PoE passthrough
- Switch fabric of 6 Gbps
- Supports jumbo frames up to 9 kBytes
- Supports 2048 MAC address entries
- LEDs for PoE and data
- Fanless design ideal for silent operation
- Compact metal case
- Three-year warranty
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 0766623561600
