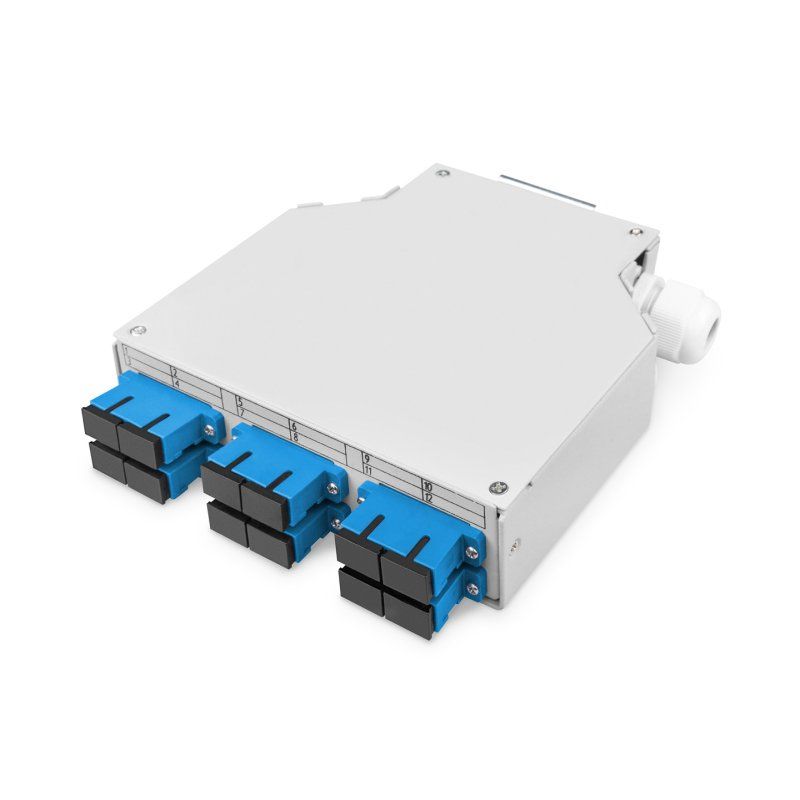

Digitus Digitus Fiber optic DIN rail box, OS2, equipped, with SC adapter and pigtail
Digitus Fiber optic DIN rail box, OS2, equipped, with SC adapter and pigtail, SC, OS2, Blue, Grey, Steel, 2 m, -20 - 60 °C
DN-963890
4016032493112
€52.00
VAT included
Description
Digitus Fiber optic DIN rail box, OS2, equipped, with SC adapter and pigtail. Fiber optic connector: SC, Fibre optic type: OS2. Product colour: Blue, Grey, Material: Steel, Cable length: 2 m. Width: 135 mm, Height: 38 mm, Depth: 141 mm. Package width: 150 mm, Package depth: 175 mm, Package height: 40 mm
- Number of connections : 6
- Suitable for splicing installation cables
- Capacity: up to 12 fibers
- Fiber type : Singlemode
- Fiber class: OS2
- Fiber structure : 9/125 μm
- Equipped with SC-Dx adapter and SC pigtail
- Adapter : SC Duplex with ceramic sleeves
- Length of the fiber pigtail : 2 m
- Diameter of the fiber pigtail: 0.9 mm
- Housing : Steel
- Color : Grey (RAL 7035)
- Cable entry : Two cable entry openings and one M20 cable gland
- Strain relief : through cable gland
- Temperature - Operation °C -20 °C - 60 °C
- Temperature - Storage °C -20 °C - 60 °C
- Dimensions : 135 x 38 x 141 mm
Data sheet
- Colour
- Black
- Garantie
- 2 ans
Specific References
- EAN13
- 4016032493112
